Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006LF
Model 217
up to model year 2018
with code 235 (Active Parking Assist with PARKTRONIC)
Model 222
up to model year 2018
with code 235 (Active Parking Assist with PARKTRONIC)

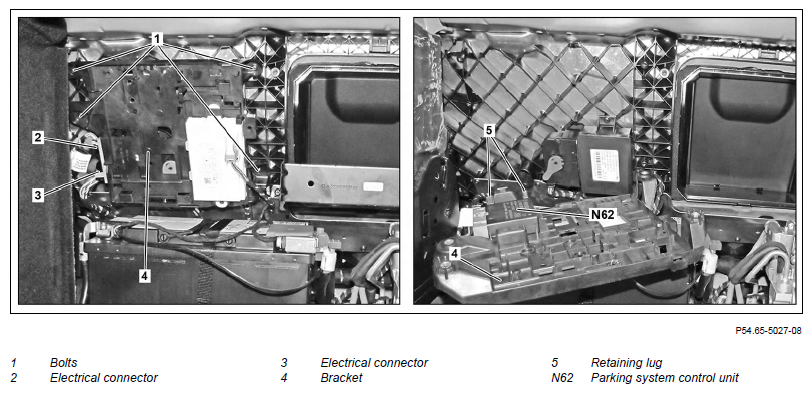

Shown on model 222 up to model year 2018

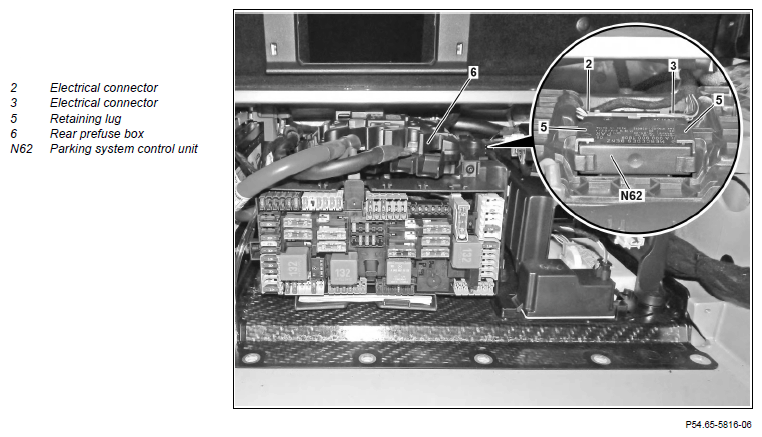

Shown on model 217.4 up to model year 2018
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of parking system control unit (N62) | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove trim from luggage compartment rear panel | Model 217.4 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) | AR68.30-P-4602LCA |
| Model 217.3 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) | AR68.30-P-4600LC | ||
| Model 222 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) | AR68.30-P-4600LF | ||
| 3.1 | Remove bolts (1) | Model 217.3 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) |
|
| 3.2 | Release rear prefuse box (6) | Model 217.4 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) | AR54.15-P-1340LC |
| 4 | Disconnect electrical connectors (2, 3) | ||
| 5 | Fold bracket (4) to the rear | Model 217.3 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) Model 222 up to model year 2018 with code 235 (Active Parking Assist with PARKTRONIC) |
|
| 6 | Unlock retaining lugs (5) and remove parking system control unit (N62) | ||
| 7 | Install in the reverse order |
