Remove Paneling In Trunk - AR68.30-P-4600LC
Model 217.3
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. Model 217.3 with code P17 (KEYLESS-GO package) | AS00.00-Z-0009-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217.3 with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||

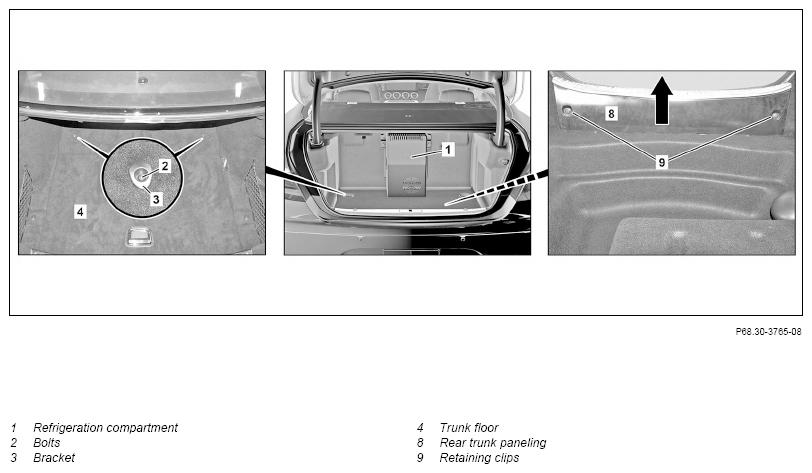

| 1 | Remove refrigeration compartment (1) | Model 217.3 with code 308 (Refrigerated compartment) | AR86.61-P-1010LC |
| 2 | Unscrew bolts (2) from brackets (3) | ||
| 3 | Remove trunk floor (4) | ||
| 4 | Remove subwoofer | Model 217.3 with code 811 (Advanced sound system) | AR82.62-P-7841LC |
| 5 | Remove retaining clips (9) and unclip rear trunk paneling (8) upward | ||

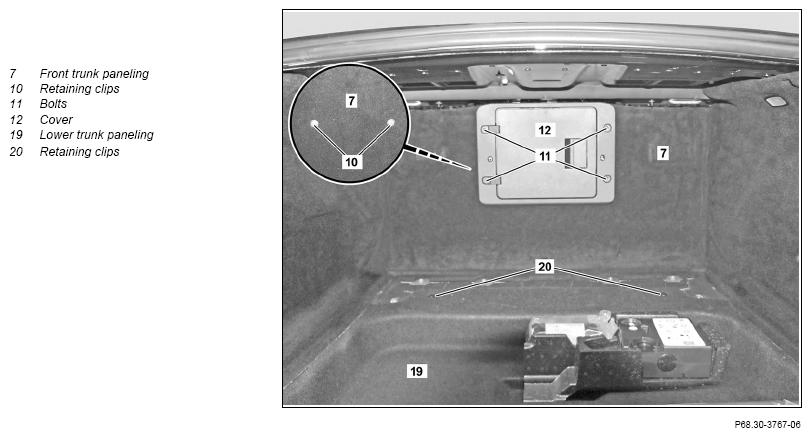

| 6.1 | Remove retaining clips (10) | Model 217.3 except code 282 (Ski and snowboard bag) except code 308 (Refrigerated compartment) |
|
| 6.2 | Unscrew bolts (11) and remove cover (12) | Model 217.3 with code 282 (Ski and snowboard bag) Model 217.3 with code 308 (Refrigerated compartment) |
|
| 7 | Remove front trunk paneling (7) | ||

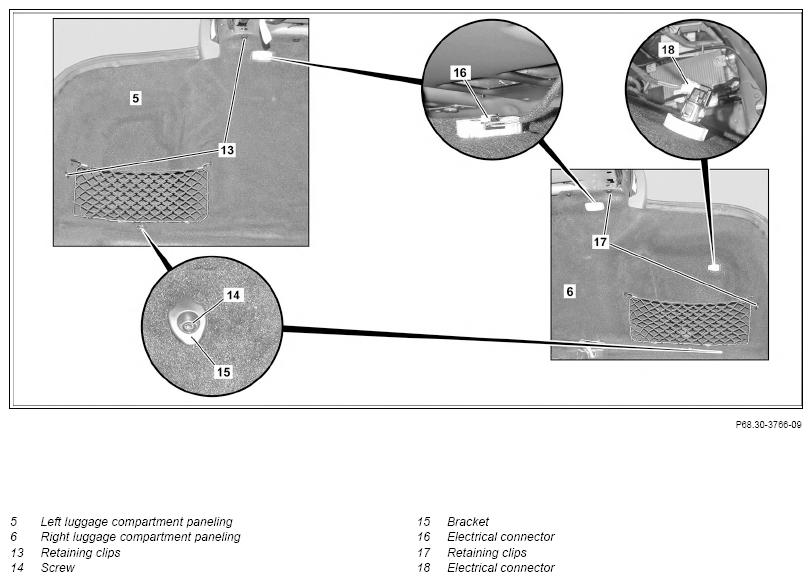

| 8 | Remove retaining clips (13) | ||
| 9 | Unscrew bolt (14) from bracket (15) on left trunk paneling (5) | ||
| 10 | Detach left trunk paneling (5) and disconnect electrical connector (16) | ||
| 11 | Remove left trunk paneling (5) | ||
| 12 | Remove retaining clips (17) | ||
| 13 | Unscrew bolt (14) from bracket (15) on right trunk paneling (6) | ||
| 14 | Detach right trunk paneling (6) and disconnect electrical connectors (16, 18) | ||
| 15 | Remove right trunk trim (6) | ||
| 16 | Remove vehicle tool insert | ||
| 17 | Remove retaining clips (20) | ||
| 18 | Remove lower trunk paneling (19) | ||
| 19 | Install in the reverse order |
