Remove/Install Rear Pre-Fuse Box - AR54.15-P-1340LC

Model 217

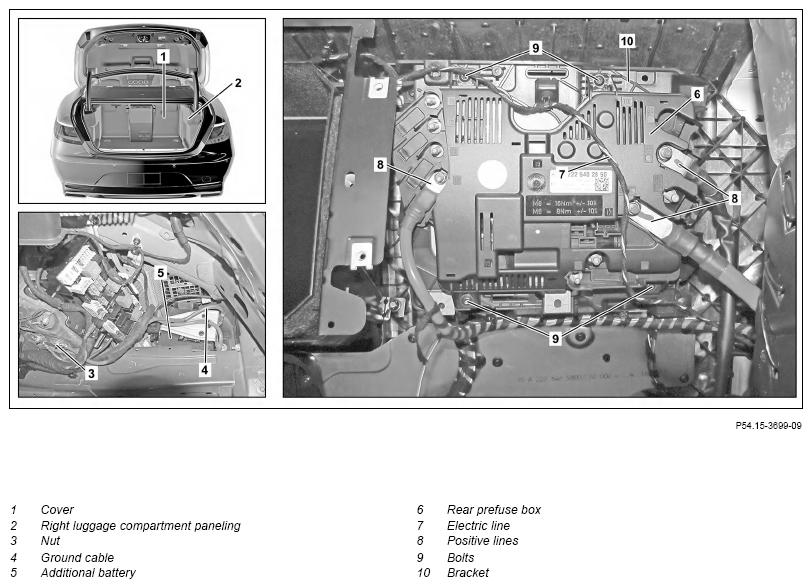

G15299945

Courtesy of MERCEDES-BENZ USA

Shown on model 217.3

	Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on battery		AH54.10-P-0001-01A
	Notes on replacing safety-relevant components		AH00.19-P-1000-02A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1.1	Disconnect battery ground line	Model 217.3	AR54.10-P-0003LF
1.2	Remove battery	Model 217.4	AR54.10-P-0005LCA
2	Remove trim (1)	Model 217.3	AR68.30-P-4600LC
3	Remove right trunk trim (2)	Model 217.3 When disconnecting ground line (4) of additional battery (5).	AR68.30-P-4600LC
4	Unscrew nut (3) and remove ground line (4) of additional battery (5) from ground point	Model 217.3 Cover connector of ground line (4) in order to prevent an unwanted ground connection. There is otherwise a risk of short circuit when removing the rear prefuse box (6). Rear additional battery ground point	*BA00.19-P-1010-01J
5	Unclip electrical line (7) from rear prefuse box (6)
6	Detach positive lines (8) from rear prefuse box (6)	The connections of the positive lines (8) are shape-coded. The number of positive lines (8) may depend on the vehicle equipment. Nut, positive terminal to rear prefuse box	*BA54.15-P-1004-01J
7	Unscrew screws/bolts (9) and remove rear prefuse box (6) from bracket (10)
8	Remove rear prefuse box (6) from trunk
9	Install in the reverse order

GROUND POINTS

Number	Designation			Model 217 up to model year 2018	Model 217 as of model year 2018
BA00.19-P-1010-01J	Rear additional battery ground point	W7/6	Nm	10	10

FUSE AND RELAY BOX

Number	Designation			Model 217
BA54.15-P-1004-01J	Nut, positive terminal to rear prefuse box	M6	Nm	8
BA54.15-P-1004-01J	Nut, positive terminal to rear prefuse box	M8	Nm	16
