Remove/Install DC/DC Converter Control Unit For Windshield Heater - AR54.21-P-1603LC
Model 217
with code 597 (Heated windscreen)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. Model 217 with code 597 (Heated windscreen) with code P17 (KEYLESS-GO package) |
AS00.00-Z-0009-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | Model 217 with code 597 (Heated windscreen) with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect ground line of on-board electrical system battery | AR54.10-P-0003LF | |
| 2 | Remove right trunk trim | Model 217.4 with code 597 (Heated windscreen) |
AR68.30-P-4800LCA |
| Model 217.3 with code 597 (Heated windscreen) |
AR68.30-P-4600LC | ||
| 3 | Remove the auxiliary battery | Model 217.364/382/384/385 with code 597 (Heated windscreen) |
AR54.10-P-0007LC |
| 4 | Unclip fuse and relay module in rear and place to one side with lines still connected | Model 217.3 with code 597 (Heated windscreen) |
AR54.15-P-0001LF |

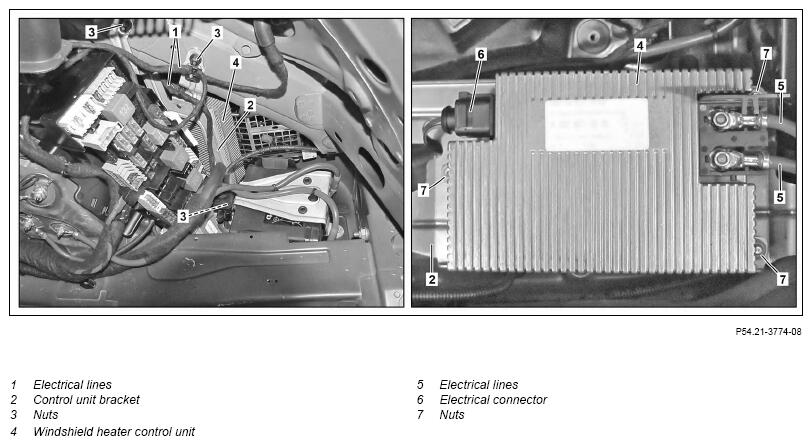

| 5 | Unclip electrical lines (1) from control unit bracket (2) | ||
| 6 | Unscrew nuts (3) | ||
| 7 | Remove windshield heater control unit (4) with control unit bracket (2) | ||
| 8 | Detach electrical lines (5) from windshield heater control unit (4) | ||
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| *BA54.21-P-1001-01D | |||
| 9 | Release and disconnect electrical connection (6) | ||
| 10 | Unscrew nuts (7) and remove windshield heater control unit (4) from control unit bracket (2) | When replacing the windshield heater control unit (4). |
*BA00.10-P-1002-04A |
| 11 | Install in the reverse order |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x 1 | Nm | 9 | 13 |
CONTROL UNITS
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA54.21-P-1001-01D | Nut, line to windshield heater control unit | Nm | 9 |
