Remove/Install 360° Camera Control Unit - AR54.30-P-3004LC
Model 217.3
with code 501 (360° camera)
MODIFICATION NOTES
| 26.08.2015 | Calibrate all the cameras for the 360° camera system using the diagnostic system, added. | Operation step 9 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out data from 360° camera control unit (N148) with diagnostic system | If the 360° camera control unit (N148) is being replaced. | |
| AD00.00-P-2000-04B | |||
| 2 | Remove remote trunk closing drive unit | Model 217.3 with code 501 (360° camera) with code 881 (Remote boot lid closing) |
AR88.50-P-5086LC |
| 3 | Remove luggage compartment trim on left side | AR68.30-P-4600LC | |

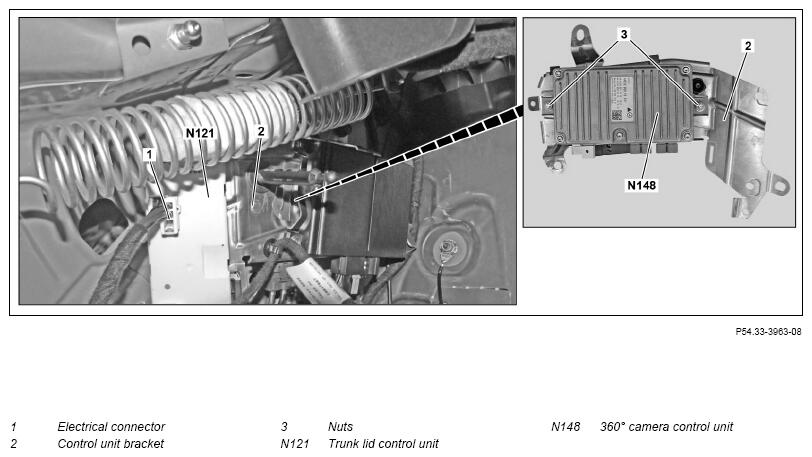

| 4 | Remove trunk lid control unit (N121) | AR88.50-P-5300LC | |
| 5 | Detach control unit bracket (2) and fold towards front | ||
| 6 | Unscrew nuts (3) | ||
| 7 | Disconnect electrical connections at 3600 camera control unit (N148) and remove 3600 camera control unit (N148) | ||
| 8 | Install in the reverse order | ||
| 9 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B |
