Remove/Install Remote Trunk Closing Drive Unit - AR88.50-P-5086LC
Model 217.3
with code 881 (Remote boot-lid closing)
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove side paneling in left side of trunk | AR68.30-P-4600LC | |

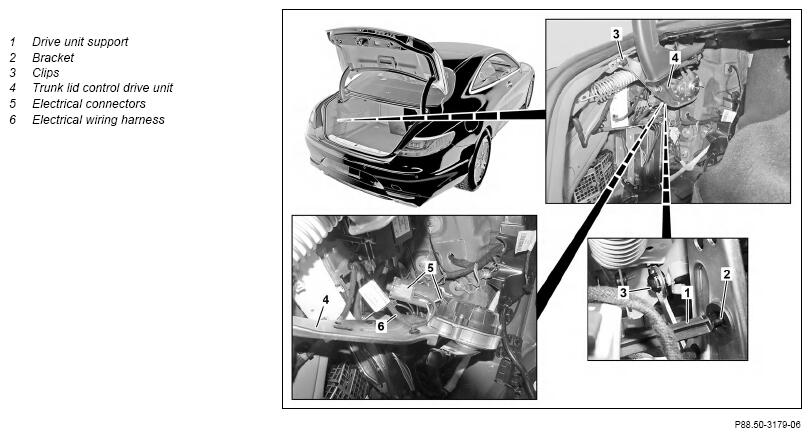

| 2 | Lift clips (3) with suitable screwdriver and remove trunk lid control drive unit (/4) | ||
| 3 | Unclip drive unit support (1) from bracket (2) | ||
| 4 | Remove electrical connectors (5) from trunk lid control drive unit (4) | ||
| 5 | Unclip electrical wiring harness (6) from trunk lid control drive unit (4) | ||
| 6 | Remove trunk lid control drive unit (4) | ||
| 7 | Install in the reverse order | ||
| Normalizing | |||
| 8 | Close trunk lid manually | ||
| 9 | Push and hold down driver trunk lid/liftgate control button in door paneling until trunk lid makes contact with upper stop | ||
| 10 | Then actuate driver trunk lid/liftgate control button for 4 s in the "opening" position | ||
| Check | |||
| 11 | Check driver trunk lid/liftgate control button for proper function |
