Remove/Install Remote Trunk Closing Control Unit - AR88.50-P-5300LC
Model 217
MODIFICATION NOTES
| 22.09.2017 | "Operation step variant 6.1/6.2" removed. The normalization must always be carried out. | Operation steps 6 and 7. |

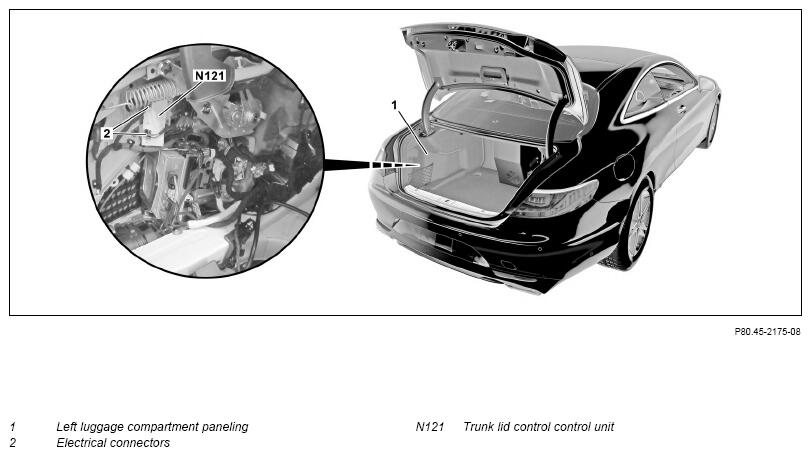

Fig 1: Remote Trunk Closing Control Unit Component Location - Model 217 (Shown On Model 217.3 Up To Model Year 2018)
Shown on model 217.3 up to model year 2018

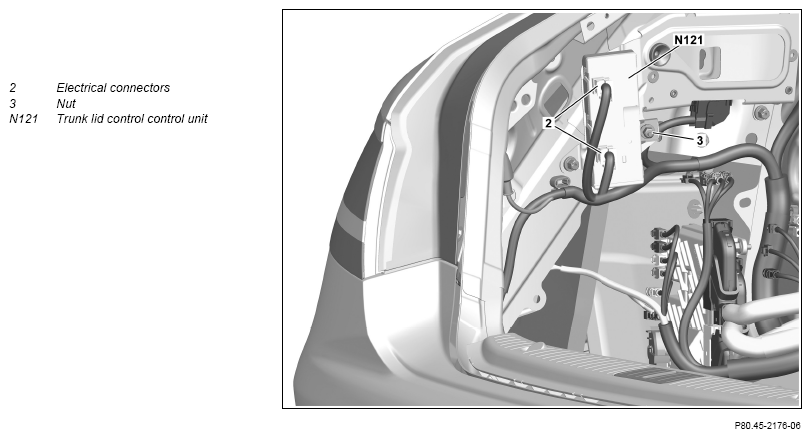

Fig 2: Remote Trunk Closing Control Unit Component Location - Model 217 (Shown On Model 217.3 As Of Model Year 2018)
Shown on model 217.3 as of model year 2018
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Detach left trunk lining (1) until trunk lid control control unit (N121) can be accessed | Model 217.4 | AR68.30-P-4800LCA |
| Model 217.3 | AR68.30-P-4600LC | ||
| 3 | Separate electrical connectors (2) | ||
| 4.1 | Unclip trunk lid control control unit (N121) and remove from bracket | Model 217 up to model year 2018 |
|
| 4.2 | Unscrew nut (3) and remove trunk lid control control unit (N121) from bracket | Model 217 as of model year 2018 |
|
| 5 | Install in the reverse order | ||
| 6 | Perform commissioning of trunk lid control control unit (N121) | When replacing trunk lid control control unit (N121). | |
| AD00.00-P-2000-04B | |||
| 7 | Normalize trunk lid remote closing | AR88.50-P-5300-01LC |
