Remove/Install Battery Sensor - AR54.10-P-0002LFA

Model 217

Model 222.004/057/077/104/157/177/178/179/187/188

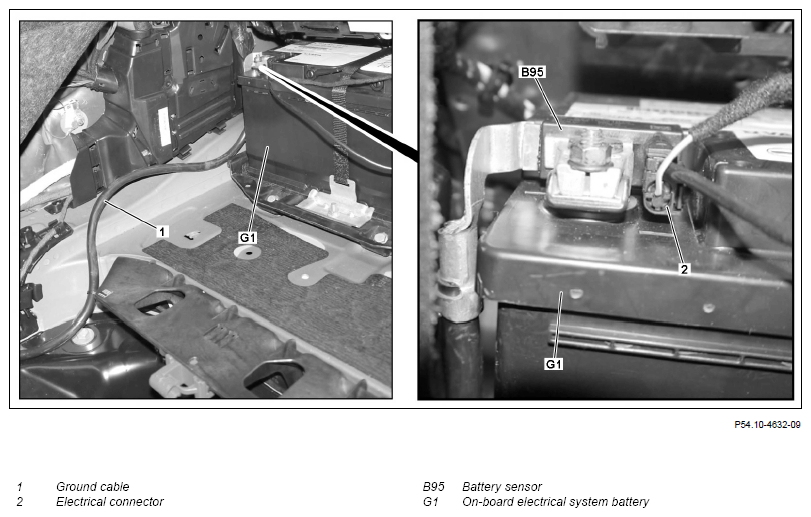

Fig 1: Battery Sensor Component Location - Model 217 (Shown On Model 222)

Courtesy of MERCEDES-BENZ USA

Shown on model 222

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off all electrical consumers	Switch off all electrical consumers. Otherwise there is a risk of damage to electrical consumers when disconnecting and connecting the ground line (1).
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Unlock engine hood	Model 222.004/057/104/157 Opening the hood deactivates the pre-entry climate control via the opened contact switch. This ensures that no currents are flowing in the 12 V on-board electrical system.
4	Remove front luggage compartment lining	Model 217.4	AR68.30-P-4602LCA
		Model 217.3	AR68.30-P-4600LC
		Model 222.004/057/077/104/157/177/178/179/187/188	AR68.30-P-4600LF
5	Remove lower trunk lining	Model 217.4	AR68.30-P-4820LCA
		Model 222.004/057/077/104/157/177/178/179/187/188	AR68.30-P-4600LF
		Model 217.3	AR68.30-P-4600LC
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
6	Remove body panel between the rear wheel wells	Model 217.4	AR63.10-P-0661-05LCA
		Bolt, partition wall for trunk to body	*BA64.10-P-1002-01C
7	Disconnect ground line (1) from body	Model 222 Battery ground point	*BA00.19-P-1012-01C
		Model 217 Ground point (starter battery)	*BA00.19-P-1012-01J
8	Detach ground line (1) from on-board electrical system battery (G1)	Nut, charging cable to negative terminal/positive terminal of on-board electrical system battery	*BA54.10-P-1003-01J
9	Disconnect electrical connector (2) from battery sensor (B95)
10	Expose ground line (1) and remove with battery sensor (B95)	Ground line (1) and battery sensor (B95) are a component part and cannot be replaced individually.
11	Install in the reverse order
