Remove/Install Carrier Plate For Audio Components - AR82.60-P-7601LC
Model 217
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left luggage compartment trim | Model 217.4 | AR68.30-P-4800LCA |
| Model 217.3 | AR68.30-P-4600LC | ||

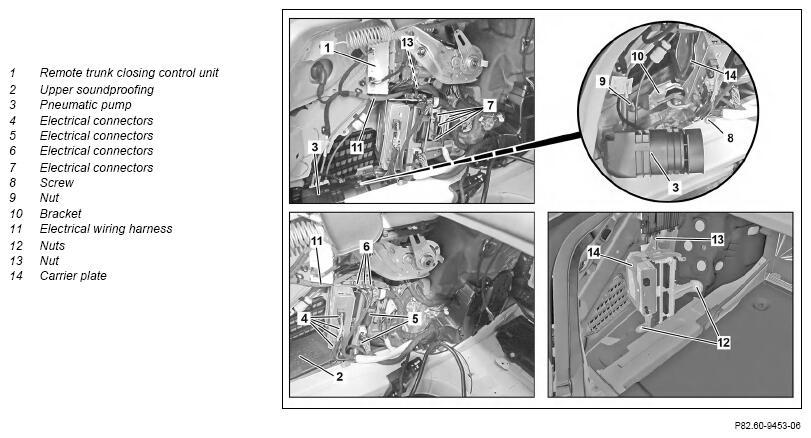

| 2 | Remove remote trunk closing control unit (1) | AR88.50-P-5300LC | |
| 3 | Remove upper soundproofing (2) from pneumatic pump (3) | ||
| 4 | Place pneumatic pump (3) with connected lines to one side | ||
| 5 | Remove lower soundproofing from pneumatic pump (3) | ||
| 6 | Release and disconnect electrical connectors (4, 5, 6, 7) | ||
| 7 | Remove screw/bolt (8) | *BA00.10-P-1002-04A | |
| 8 | Unscrew nut (9) and remove bracket (10) | *BA00.10-P-1002-04A | |
| 9 | Unclip electrical wiring harness (11) | ||
| 10 | Unscrew nuts (12, 13) | *BA00.10-P-1002-04A | |
| 11 | Remove carrier plate (14) | ||
| 12 | Install in the reverse order |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
