Adjust Trunk Lid - AR88.50-P-5200LF

Model 217

Model 222

MODIFICATION NOTES

11.09.2015 "Calibrate 360° rear camera with diagnostic system" added. Operation step 15.1
02.03.2016 "Calibrate reversing camera using diagnostic system" added. Operation step 15.2
18.07.2016 Nut/bolt hinge lever on trunk lid Model 217 BA88.50-P-1002-01E

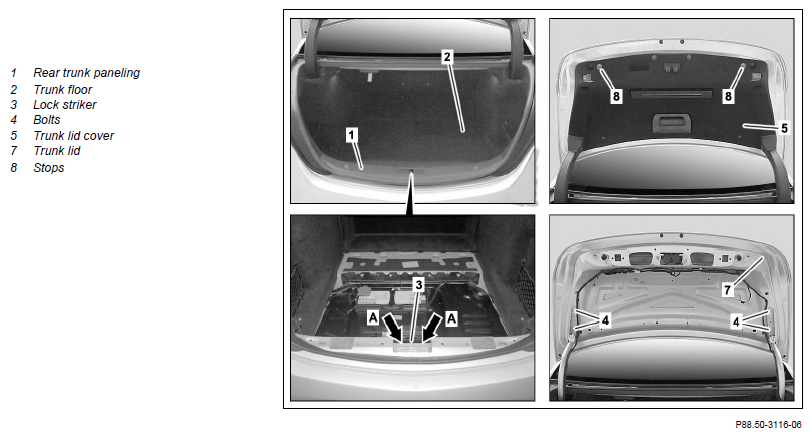

Shown on model 222

G15346913Courtesy of MERCEDES-BENZ USA

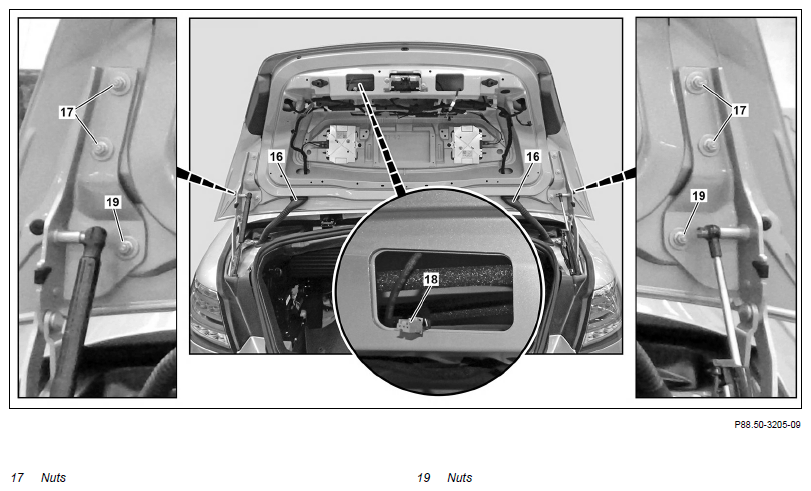

G15346914Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
IMPORTANT Notes on sensor system for trunk lid opening/closing Model 217
with code P17 (KEYLESS-GO package)		 AH80.61-P-0001-01A
INSPECT Check
1 Check gap dimensions on trunk lid (7) Model 217 AR60.00-P-0700-01LC
    Model 222 AR60.00-P-0700-01LF
    Model 217.4 Soft top compartment lid to trunk lid *BE60.00-P-1021-01DA
    Model 217.4 Soft top compartment lid to rear fender *BE60.00-P-1020-01DA
    Model 217 Taillamp to trunk lid *BE60.00-P-1019-01DA
    Model 217 Outside of taillamp to inside of taillamp *BE60.00-P-1018-01DA
    Model 217 Trunk lid to bumper *BE60.00-P-1010-01DA
    Model 217 Trunk lid to bumper *BE60.00-P-1009-01DA
    Model 217 Trunk lid to rear fender *BE60.00-P-1007-01DA
    Model 222 Trunk lid to bumper *BE60.00-P-1017-01BA
    Model 222 Trunk lid to bumper *BE60.00-P-1016-01BA
    Model 222 Trunk lid to rear fender at top *BE60.00-P-1014-01BA
    SPECIAL TOOL Feeler gauge Fig 1
  Adjust
2 Remove rear trunk paneling (1) When adjusting height.
Model 217.4		 AR68.30-P-4603LCA
    Model 217.3 AR68.30-P-4600LC
    Model 222.0/1/9 AR68.30-P-4600LF
3 Loosen bolts (arrows A) on lock striker (3) IMPORTANT It should be possible to move lock striker (3).
4 Remove trunk lid paneling (5) When adjusting in longitudinal and lateral direction.
Model 217		 AR88.50-P-5000LC
    Model 222 AR88.50-P-5000LF
5.1 Loosen screw/bolts (4) Model 217.3
Model 222
When adjusting in longitudinal and lateral direction.
5.2 Undo nuts (17, 19) Model 217.4
When adjusting in longitudinal and lateral direction.
6 Adjust trunk lid (7) in longitudinal and transverse direction Model 217 AR60.00-P-0700-01LC
    Model 222 AR60.00-P-0700-01LF
    Model 217 Trunk lid to rear fender *BE60.00-P-1007-01DA
    Model 217 Trunk lid to bumper *BE60.00-P-1009-01DA
    Model 217 Trunk lid to bumper *BE60.00-P-1010-01DA
    Model 222 Trunk lid to rear fender at top *BE60.00-P-1014-01BA
    Model 222 Trunk lid to bumper *BE60.00-P-1016-01BA
    Model 222 Trunk lid to bumper *BE60.00-P-1017-01BA
    SPECIAL TOOL Feeler gauge Fig 1
7.1 Tighten screws/bolts (4) Model 217.3
Model 222
After adjusting in longitudinal and lateral direction.
TORQUE SPECIFICATION Nut/bolt, hinge lever to trunk lid		 *BA88.50-P-1002-01E
7.2 Tighten nuts (17, 19) Model 217.4
After adjusting in longitudinal and lateral direction.
TORQUE SPECIFICATION Nut/bolt, hinge lever to trunk lid		 *BA88.50-P-1002-01E
8 Completely screw in end stops (8) When adjusting height.
9 Adjust height of trunk lid (7) Model 217 AR60.00-P-0700-01LC
    Model 222 AR60.00-P-0700-01LF
    Model 217.4Soft top compartment lid to trunk lid *BE60.00-P-1021-01DA
    Model 217.4Soft top compartment lid to rear fender *BE60.00-P-1020-01DA
    Model 217Taillamp to trunk lid *BE60.00-P-1019-01DA
    Model 217Outside of taillamp to inside of taillamp *BE60.00-P-1018-01DA
    Model 217Trunk lid to rear fender *BE60.00-P-1007-01DA
    Model 217Trunk lid to bumper *BE60.00-P-1009-01DA
    Model 217Trunk lid to bumper *BE60.00-P-1010-01DA
    Model 222Trunk lid to rear fender at top *BE60.00-P-1014-01BA
    Model 222Trunk lid to bumper *BE60.00-P-1016-01BA
    Model 222Trunk lid to bumper *BE60.00-P-1017-01BA
    SPECIAL TOOL Feeler gauge Fig 1
10 Center lock striker (3) in relation to rotary tumbler of trunk lid lock and tighten with bolts (arrows A) When adjusting height.
TORQUE SPECIFICATION M6		 *BA00.10-P-1002-01A
11 Install rear trunk paneling After adjusting height.
Model 222.0/1/9		 AR68.30-P-4600LF
    Model 217.3 AR68.30-P-4600LC
    Model 217.4 AR68.30-P-4603LCA
12 Coat contact surface on end stops (8) with chalk When adjusting height.
13 Unscrew end stops (8) in increments until the chalk makes a mark on contact surface on rear trunk paneling (1) when trunk lid (7) is closed When adjusting height.
NOTES
Do not smash trunk lid (7), carefully close by hand.
Otherwise the paint and body panels can be damaged.
14 Install trunk lid paneling (5) After adjusting in longitudinal and lateral direction.
Model 217		 AR88.50-P-5000LC
    Model 222 AR88.50-P-5000LF
15.1 Calibrate rear 360° camera with diagnostic system Model 217
with code 501 (360° camera)
Model 222
with code 501 (360° camera)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
15.2 Calibrate reversing camera using diagnostic system Model 217
except code 501 (360° camera)
Model 222
except code 501 (360° camera)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3 Model 217.4
BE60.00-P-1007-01DA Trunk lid to rear fender Dimension "F8/F8B" mm 3, 5 (±1, 0) 3, 5 (±1, 0)
For picture, see AR60.00-P-0700-01LC AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3 Model 217.4
BE60.00-P-1009-01DA Trunk lid to bumper Dimension "F10" mm 5, 0 (+1, 0/-0, 5) 5, 0 (+1, 0/-0, 5)
For picture, see AR60.00-P-0700-01LC AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3 Model 217.4
BE60.00-P-1010-01DA Trunk lid to bumper Dimension "F10A" mm 3, 5 (+1, 5/-1, 0) 3, 5 (+1, 5/-1, 0)
For picture, see AR60.00-P-0700-01LC AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1014-01BA Trunk lid to rear fender at top Dimension "K" mm 3, 5 (±1)
For picture, see AR60.00-P-0700-01LF
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1016-01BA Trunk lid to bumper Dimension "M" mm 4, 5 (±1)
For picture, see AR60.00-P-0700-01LF
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1017-01BA Trunk lid to bumper Dimension "M1" mm 5 (+2, 5)
For picture, see AR60.00-P-0700-01LF
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3 Model 217.4
BE60.00-P-1018-01DA Outside of taillamp to inside of taillamp Dimension "F164" mm 3, 5 (±1, 0) 3, 5 (±1, 0)
For picture, see AR60.00-P-0700-01LC AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3 Model 217.4
BE60.00-P-1019-01DA Taillamp to trunk lid Dimension "F167B" mm 1, 5 (±1, 0) 1, 5 (±1, 0)
For picture, see AR60.00-P-0700-01LC AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.4
BE60.00-P-1020-01DA Soft top compartment lid to rear fender Dimension "F137a" mm 3, 5 (±1, 0)
For picture, see AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.4
BE60.00-P-1021-01DA Soft top compartment lid to trunk lid Dimension "F177" mm 5, 0 (+1, 0/-0, 5)
For picture, see AR60.00-P-0700-01LC
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD

Number Designation Model all
BA00.10-P-1002-01A M6 8.8 Galvanized Nm 9
Phosphated Nm 9
10.9 Galvanized Nm 13
Phosphated Nm 12
12.9 Galvanized Nm 16
Phosphated Nm 14
TRUNK LID

Number Designation Model 217 Model 222
BA88.50-P-1002-01E Nut/bolt, hinge lever to trunk lid Nm 9 10
Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
