Remove/Install Trunk Lid - AR88.50-P-5000LC
Model 217
MODIFICATION NOTES
| 18.07.2016 | Nut/bolt hinge lever on trunk lid | Model 217 | BA88.50-P-1002-01E |

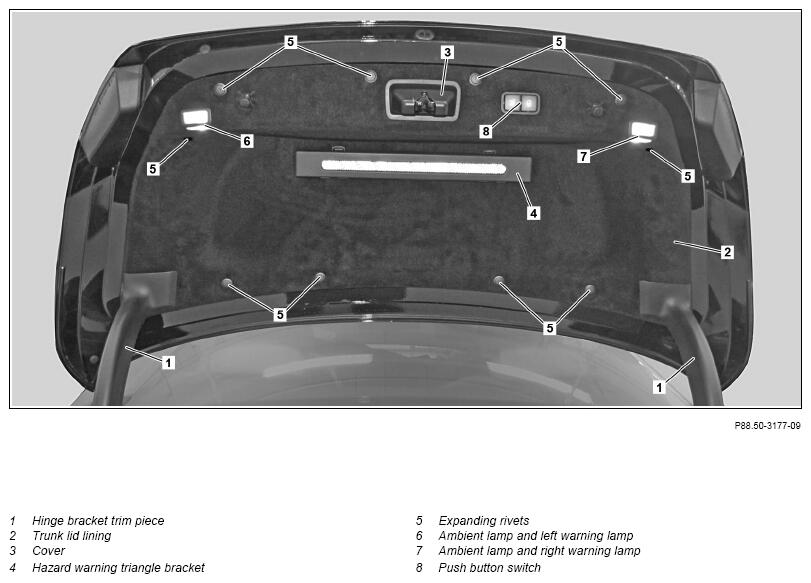

Shown on model 217.3

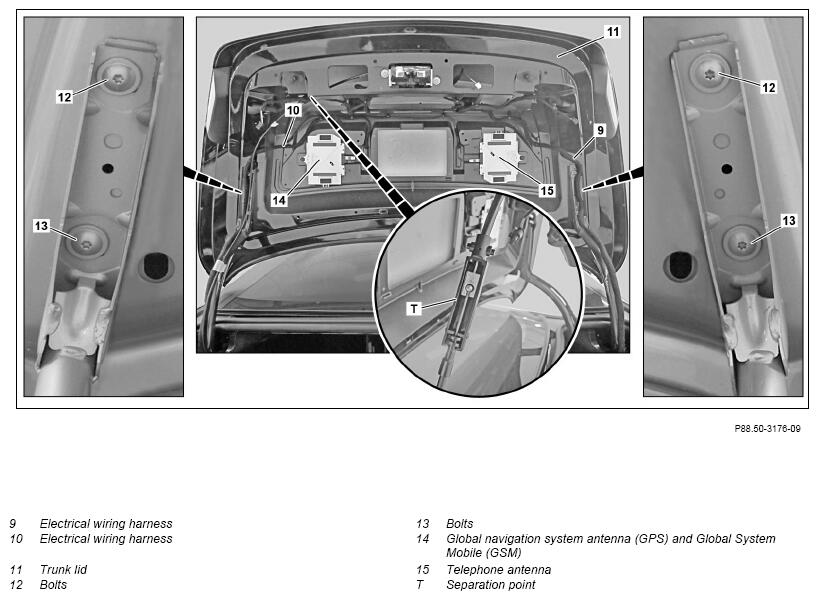

Shown on model 217.3

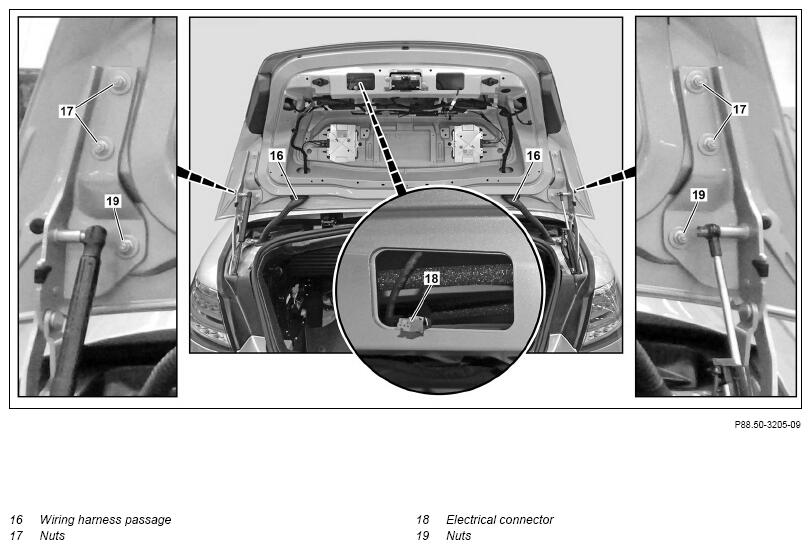

Shown on model 217.4
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Loosen hinge bracket trim piece (1) from trunk lid paneling (2) and slide downward | Model 217.3 | |
| 2 | Remove cover (3) | ||
| 3 | Unclip hazard warning triangle bracket (4) | ||
| 4 | Remove expansion rivets (5) | Fig 1 | |
| 5 | Unclip trunk lid paneling (2) and remove until electrical connectors are visible | Fig 2 | |
| 6 | Release electrical connectors from ambient lamp on left warning lamp (6), ambient lamp and right warning lamp (7) and pushbutton switch (8) and disconnect | ||
| 7 | Release electrical connector (18) from remaining room partition pushbutton switch and disconnect | Model 217.4 | |
| 8 | Remove trunk lid paneling (2) | ||
| 9 | Remove taillamps from trunk lid (11) | AR82.10-P-4915LC | |
| 10 | Remove electrical wiring harnesses (9, 10) from trunk lid (11) | ||
| 11 | Loosen wiring harness passages (16) from trunk lid (11) and pull electrical wiring harnesses (9, 10) out of trunk lid (11) | Model 217.4 | |
| 12 | Separate cable for emergency release from connecting point (T) | Model 217.3 | |
| 13.1 | Unscrew bolts (12, 13) and remove trunk lid (11) | Model 217.3 |
*BA88.50-P-1002-01E |
| 13.2 | Unscrew nuts (17, 19) and remove trunk lid (11) | Model 217.4 |
*BA88.50-P-1002-01E |
| 14.1 | Remove rear 360° camera | When replacing trunk lid (11). Model 217.4 with code 501 (360° camera) |
AR54.65-P-0030LCA |
| Model 217.3 with code 501 (360° camera) |
AR54.65-P-0030LC | ||
| 14.2 | Remove reversing camera | When replacing trunk lid (11). Model 217.4 except code 501 (360° camera) |
AR54.65-P-0030LCA |
| Model 217.3 except code 501 (360° camera) |
AR54.65-P-0030LC | ||
| 15 | Remove global navigation system antenna (GPS) and Global System Mobile (GSM) (14) | When replacing trunk lid (11). | AR82.85-P-0003LC |
| 16 | Remove telephone antenna (15) | Model 217 with code 386 (Comfort telephony) When replacing trunk lid (11). |
AR82.62-P-0011LC |
| 17 | Remove SDARS antenna | Model 217 with code 460 (Canada version) with code 536 (SIRIUS satellite radio) Model 217 with code 494 (US version) with code 536 (SIRIUS satellite radio) When replacing trunk lid (11). |
|
| 18 | Remove rotary tumbler | When replacing trunk lid (11). |
*BA00.10-P-1002-01A |
| 19 | Remove stop plug | When replacing trunk lid (11). | |
| 20 | Unscrew end stop for fine height adjustment | When replacing trunk lid (11). | |
| 21 | Install in the reverse order | ||
| 22 | Adjust trunk lid (11) | AR88.50-P-5200LF |
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | Model all | |||
|---|---|---|---|---|---|
| BA00.10-P-1002-01A | M6 | 8.8 | Galvanized | Nm | 9 |
| Phosphated | Nm | 9 | |||
| 10.9 | Galvanized | Nm | 13 | ||
| Phosphated | Nm | 12 | |||
| 12.9 | Galvanized | Nm | 16 | ||
| Phosphated | Nm | 14 | |||
TRUNK LID
| Number | Designation | Model 217 | |
|---|---|---|---|
| BA88.50-P-1002-01E | Nut/bolt, hinge lever to trunk lid | Nm | 9 |
