Remove/Install Hinge Lever For Soft Top Compartment Lid - AR77.33-P-1706LCA
Model 217.4
MODIFICATION NOTES
| 02.03.2017 | Method adjustment for operation steps and new diagram | Operation steps 1-3 |
Shown on left side of vehicle
Shown on right side of vehicle
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217.4 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Close soft top | With soft top open. If soft top automatic mechanism is inoperative. ↓ Close soft top with emergency actuation |
AR77.30-P-1009LCA |
| 2 | Position soft top compartment lid upright | If soft top automatic mechanism is inoperative. ↓ Position soft top compartment lid upright with emergency actuation |
AR77.30-P-1008LCA |
| 3 | Support soft top bow against lowering | ||

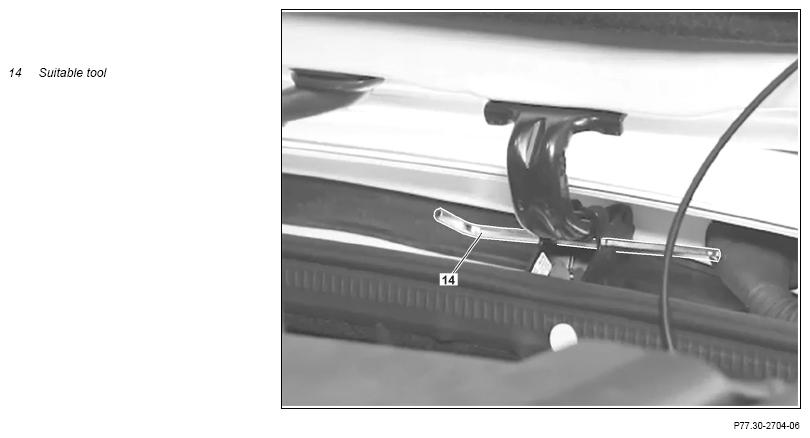

| 4 | Open soft top compartment cover and fix in place through holes on hinges with suitable tools (14) | ||
| 5 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 6 | Remove corresponding side paneling in trunk | AR68.30-P-4800LCA | |

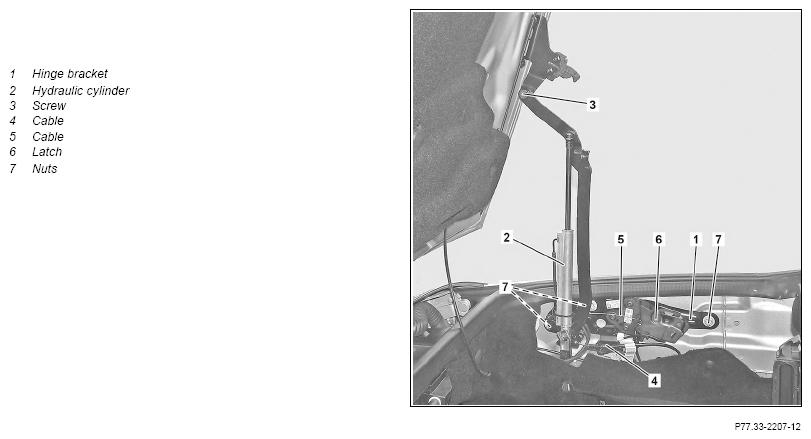

| 7 | Unhook cable (4) on hinge lever (1) | ||
| 8 | Unscrew screw/bolt (3) | *BA77.33-P-1001-02A | |

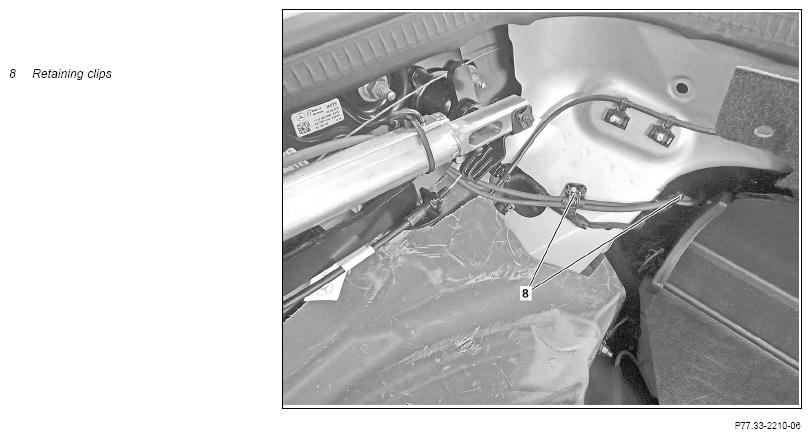

| 9 | Detach retaining clips (8) | ||
| 10 | Remove hydraulic cylinder (2) and lay down to side with lines connected | AR77.37-P-4175LCA | |
| 11 | Remove lock (6) with able (5) from hinge lever (1) and lay down to side | *BA77.33-P-1003-02A | |
| 12 | Mark installation position of hinge lever (1) | Precisely maintain previous installation position. Otherwise the gap dimensions of the soft top compartment lid can change. |
|
| 13 | Unscrew nuts (7) and remove hinge lever (1) | *BA77.33-P-1006-02A | |
| 14 | Install in the reverse order | ||
| Check | |||
| 15 | Check gap dimensions on soft top compartment lid | AR77.33-P-1705LCA |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.33-P-1001-02A | Bolt, hinge to soft top compartment lid | Nm | 10 |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.33-P-1003-02A | Bolt, lock mounting to soft top compartment lid | Nm | 10 |
MECHANICAL SOFT-TOP COMPONENTS
| Number | Designation | Model 217.4 | |
|---|---|---|---|
| BA77.33-P-1006-02A | Nut, soft top compartment lid lock to body | Nm | 20 |
