Remove/Install Soft Top Compartment Cover Hydraulic Cylinder - AR77.37-P-4175LCA
Model 217.4
MODIFICATION NOTES
| 02.03.2017 | Method and reference links for emergency actuation revised | Operation steps 1-4 |

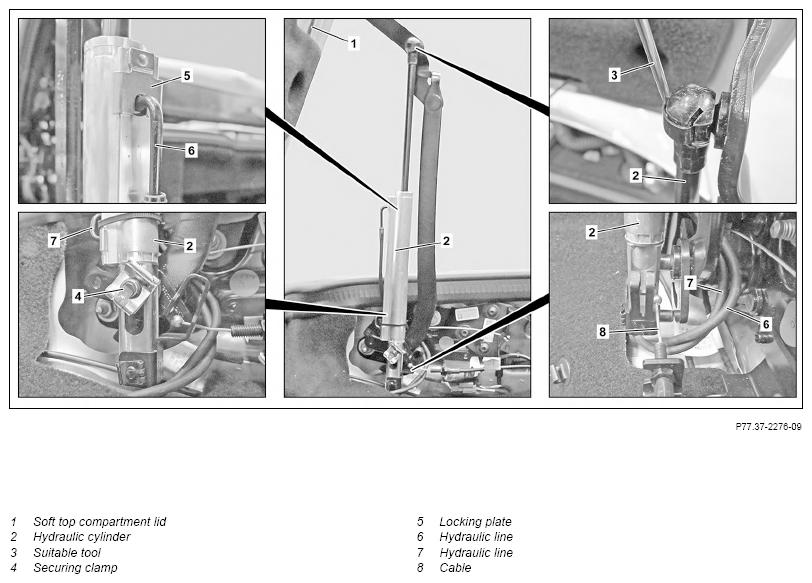

Shown on left side of vehicle
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects. |
AS91.00-Z-0003-01LCA | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217.4 with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Close soft top | With soft top open. If soft top automatic mechanism is inoperative. ↓ Close soft top with emergency actuation |
AR77.30-P-1009LCA |
| 2 | Position soft top compartment lid (1) upright | If soft top automatic mechanism is inoperative. ↓ Move soft top compartment lid (1) upward with emergency actuation |
AR77.30-P-1008LCA |
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 4 | Support soft top bow against lowering | ||
| 5 | Attach hydraulic cylinders (2) to rod side | If soft top was closed via emergency actuation | . |
| 6 | Release pressure in hydraulic cylinders (2); for this purpose, manually push soft top compartment cover (1) downward several times and pull up again | ||

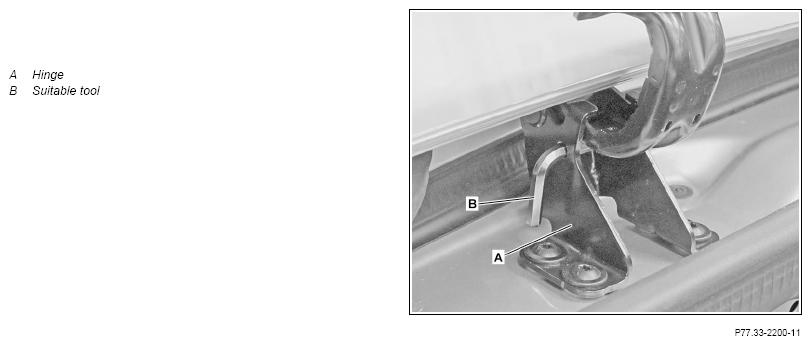

| 7 | Manually position soft top compartment cover (1) upright and fix in place through holes on hinges (A) with suitable tools (B) when open | Always remove these tools (B) from holes on hinges (A). Otherwise the soft top compartment (1) can be damaged. Hydraulic system is depressurized, soft top compartment cover (1) must be carefully set down. Otherwise damage may occur. |
|
| 8 | Detach hydraulic cylinders (2) on rod side with suitable tool (3) | ||
| 9 | Detach cable (8) from hydraulic cylinders (2) | ||
| 10 | Remove securing clamp (4) | ||
| 11 | Remove hydraulic cylinders (2) and set to one side with connected hydraulic lines (6, 7) | ||
| 12 | Remove lock washer (5) from hydraulic lines (6, 7) | ||
| 13 | Pull hydraulic lines (6, 7) out of hydraulic cylinders (2) Hydraulic fluids (Specification 343.0) |
BB00.40-P-0343-00A | |
Sealing rings of hydraulic lines (6, 7) must be wetted with hydraulic fluid. |
|||
| 14 | Install in the reverse order | ||
| Check | |||
| 15 | Check oil level of hydraulic system | AR77.37-P-3501LCA |
