Open Soft Top With Emergency Actuation - AR77.30-P-1008LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Open soft top with emergency actuation | |||

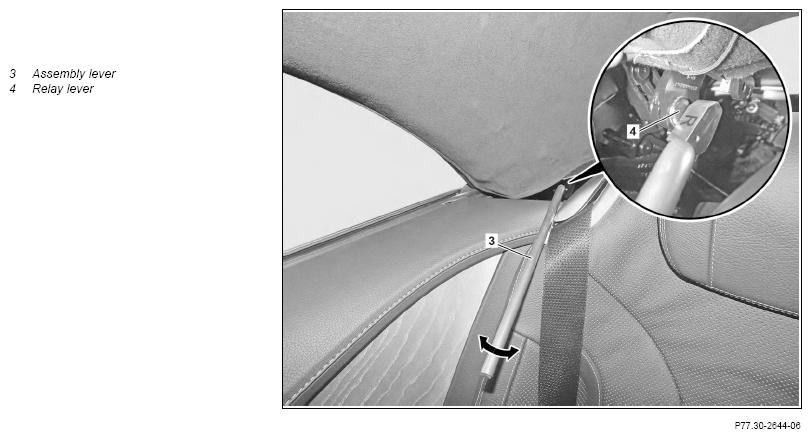

| 1 | Release soft top bow and position upright; for this purpose, attach assembly levers (3) on relay levers (4) on both sides and press assembly levers (3) downward until relay levers (4) noticeably release | Fig 1 | |
| 2 | Open trunk lid | ||

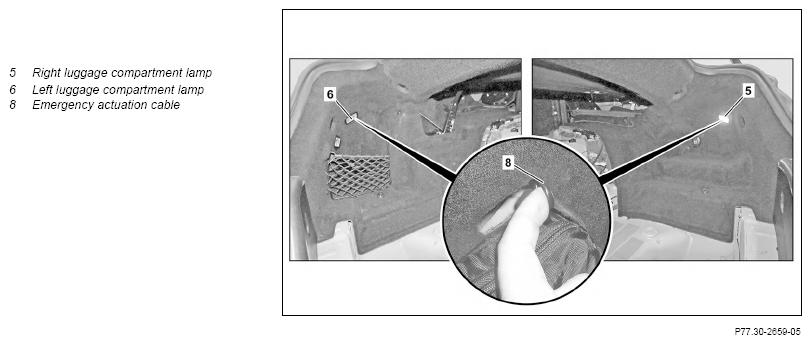

| 3 | Unclip right trunk lamp (5) and left trunk lamp (6) | ||
| 4 | Pull left and right emergency actuation cable (8) of soft top compartment and unlock soft top compartment lid | ||
| 5 | Completely close trunk lid | Open soft top compartment lid only when trunk lid is closed completely. Failure to observe this can lead to paint damage. |
|

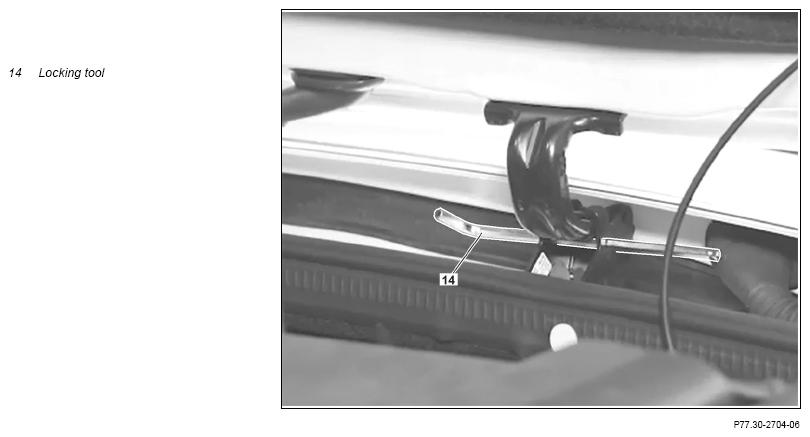

| 6 | Open soft top compartment cover and secure with locking tools (14) | ||

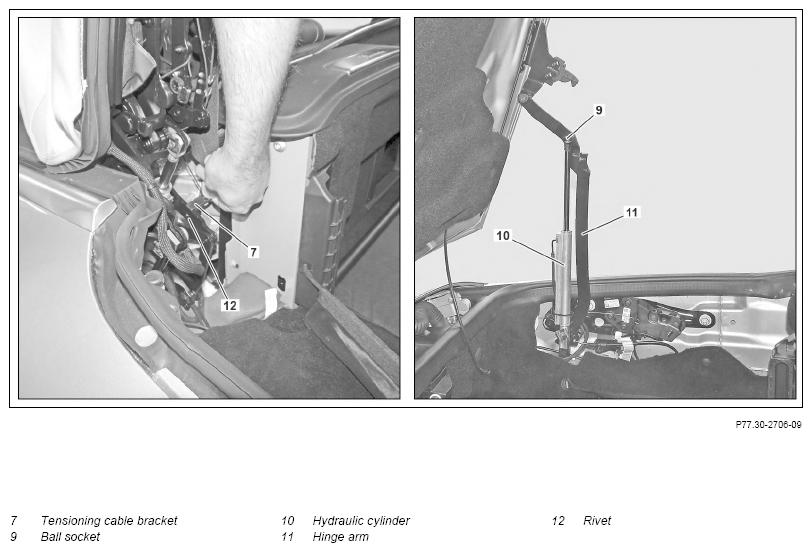

| 7 | Unclip ball socket (9) on left and right hinge arm (11) and set down hydraulic cylinder (10) in soft top compartment | ||
| 8 | Chisel off rivet (12) and remove tensioning cable bracket (7) | ||
| 9 | Unclip trim (13) from center front soft top and pull slightly downward | ||

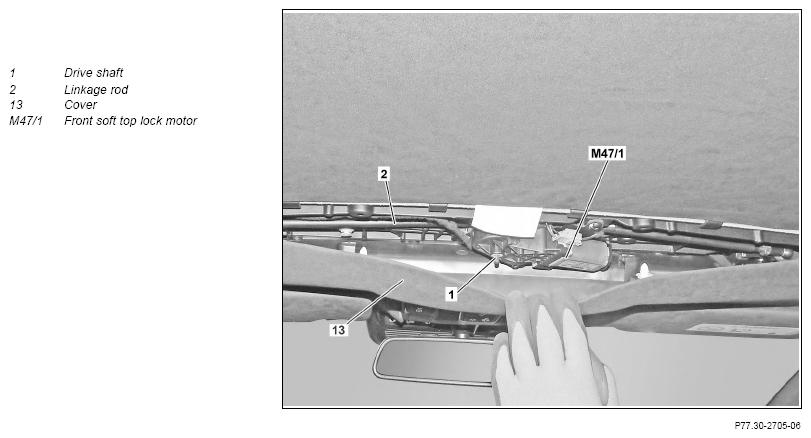

| 10 | Turn drive shaft (1) of front soft top lock motor (M47/1) and move linkage (2) to end stop until soft top releases | ||
| 11 | Clip in trim (13) | ||
| 12 | Open soft top manually | Carefully guide soft top bow into soft top compartment. Where this is not observed, the soft top can open in an uncontrolled manner and damage the vehicle. |
|
| 13 | Remove locking tools (14) from hinges of soft top compartment cover | Before closing soft top compartment cover, remove locking tools (14) for fixing in place the soft top compartment cover. Where this is not complied with, the hinges and soft top compartment cover are damaged. |
|
| 14 | Close soft top compartment lid |
