C-Pillar Removal And Installation - Ar63.20-P-0500S

Model 223.0/1

MODIFICATION NOTES

24.11.2021 Document reference added. Operation steps 3, 7.

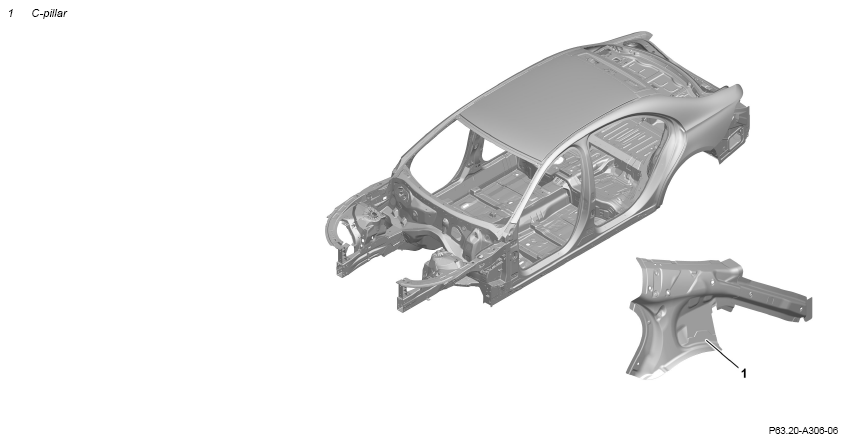

Fig 1: C-Pillar Component Location (Model 223.0/1)
G16191754DANGERDANGERDANGERWARNINGCAUTIONREMOVINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSINSTALLINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
DANGER Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust Wear dust filter mask, safety glasses, and protective gloves.
Use a suitable, grounded dust extraction system.
AS60.00-Z-0007-01N
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice General information on body repair   AH60.00-P-0001-01S
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
  Note on working on aluminum components and vehicles   AH60.00-P-0034-01RG
  Notes on foam-protected insulation in body   AH60.00-P-0041-01S
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blankets.
3 Remove rear fender.   AR63.50-P-1401SG
    Model 223.0/1
with code Z07 (B7 armoring on special protection version)

    Model 223.0/1
except code Z07 (B7 armoring on special protection version)
AR63.50-P-1401S
4 Remove C-pillar (1).   AR63.20-P-0500-01S
REFER TO SPECIAL TOOLS 000 588 02 39 00 Rivet press tool   WS60.00-P-0010B
REFER TO SPECIAL TOOLS 000 588 03 39 00 Rivet die   WS60.00-P-0386K
INSTALLING Install
  General information on riveting   AH60.00-P-0003-01S
5 Prepare C-pillar (1).   AR63.20-P-0500-02S
6 Install C-pillar (1).   AR63.20-P-0500-03S
REFER TO SPECIAL TOOLS 000 588 02 39 00 Rivet press tool   WS60.00-P-0010B
REFER TO SPECIAL TOOLS 000 588 03 39 00 Rivet die   WS60.00-P-0386K
    Adhesive kit, body, 2-component adhesive *BR00.45-Z-1092-02A
    Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1035-13A
    Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) *BR00.45-Z-1016-13A
    Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1043-13A
    Countersunk-head blind rivet Z2 6.4x15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1044-13A
    Flow-form rivet with countersunk head X2 2.3 mm to 3.5 mm *BR00.45-Z-1071-13A
    Flow-form rivet with countersunk head X4 4 mm to 5.15 mm *BR00.45-Z-1073-13A
7 Clean sheet metal flanges.
8 Install rear fender.   AR63.50-P-1401SG
    Model 223.0/1
with code Z07 (B7 armoring on special protection version)

    Model 223.0/1
except code Z07 (B7 armoring on special protection version)
AR63.50-P-1401S
9 Install all detachable parts in area of repair point.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1012-13A Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1016-13A Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) A 004 990 17 97
BR00.45-Z-1035-13A Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1043-13A Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) A 000 991 82 32
BR00.45-Z-1044-13A Countersunk-head blind rivet Z2 6.4x15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) A 000 991 83 32
BR00.45-Z-1071-13A Flow-form rivet with countersunk head X2 2.3 mm to 3.5 mm A 000 991 46 02
BR00.45-Z-1073-13A Flow-form rivet with countersunk head X4 4 mm to 5.15 mm A 000 991 49 02
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 012 989 17 71
