C-Pillar Installation - Ar63.20-P-0500-03S

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 03 39 00 Rivet die		WS60.00-P-0386K

Model 223.0/1

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = countersunk-head rivet 6.4x14.0
• Z₂ = countersunk-head rivet 6.4x15.5
• Z₃ = countersunk-head rivet 6.4x17.0
• Z₄ = countersunk-head rivet 6.4x19.0
• Z₅ = countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = blind rivet 6.4x12.0
• Y₂ = blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = Blind rivet 6.4 M6
• Y₅ = blind rivet 6.4
• Y₆ = blind rivet 6.5X13.5
• Y₇ =blind rivet 6.4x14.0
• Y₈ =blind rivet 6.4x17.0
• Y₉ =blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V1 = rivet 3.2x4.5
• V2 = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with 1.5 mm to 3.0 mm clamping range

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

1. Install C-pillar (1), fit, and fix in place.

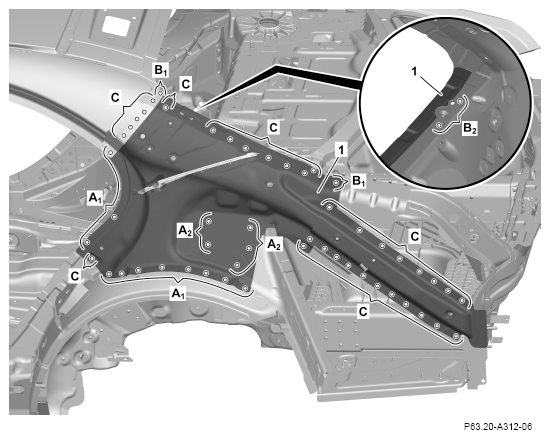

2. Punch rivet holes on C-pillar (1) with Ø 6.0 mm using rivet press tool (areas A₁ ).
3. Drill rivet holes on C-pillar (1) with Ø 6.7 mm (areas A₂ , B₁ , B₂ , C).
4. Countersink rivet holes on C-pillar (1) (areas B₁ , B₂ ).
5. Remove C-pillar (1).
6. Drill rivet holes in C-pillar (1) and deburr on body on both sides.
7. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

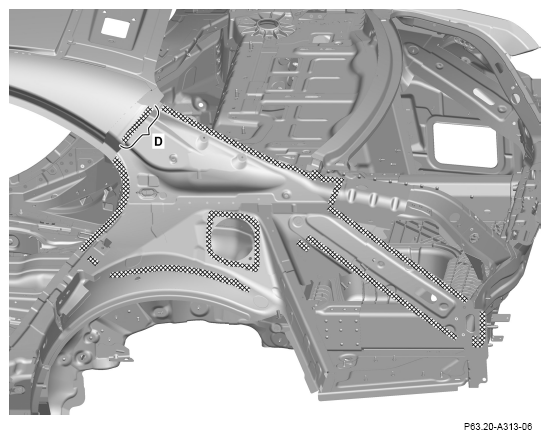

8. Apply 2-component adhesive to body in cross-hatched areas.

   Apply 2-component adhesive on inside (area D).

   Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

   Courtesy of MERCEDES-BENZ USA

9. Install C-pillar (1) and fix in place.

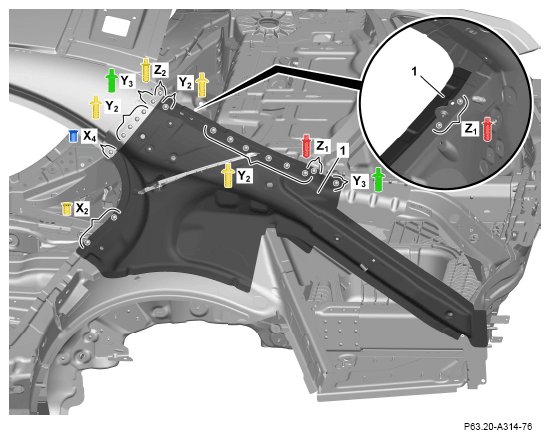

10. C-pillar (1) with flow-form rivet with countersunk head 4.0 mm to 5.15 mm (area X₄ ).
11. C-pillar (1) with flow-form rivet with countersunk head 2.3 mm to 3.5 mm (area X₂ ).
12. Rivet C-pillar (1) with countersunk-head rivet Ø 6.4x15.5 (area Z₂ ).
13. Rivet C-pillar (1) with countersunk-head rivets Ø 6.4x14.0 (areas Z₁ ).
14. Rivet C-pillar (1) with rivets Ø 6.5x14.5 (areas Y₃ ).
15. Rivet C-pillar (1) with rivets Ø 6.5x12.5 (areas Y₂ ).

    Courtesy of MERCEDES-BENZ USA

16. Rivet C-pillar (1) with rivets Ø 6.5x14.5 (areas Y₃ ).
17. Rivet C-pillar (1) with rivets Ø 6.5x12.5 (areas Y₂ ).

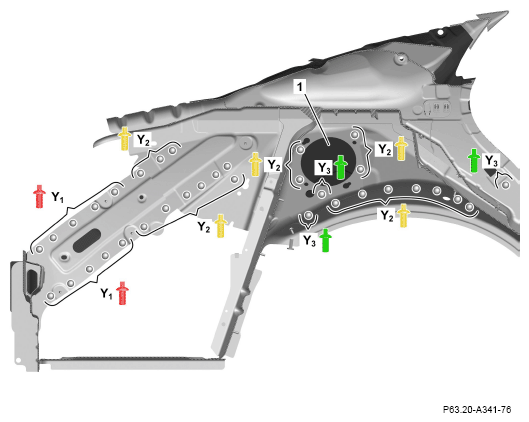

18. Rivet C-pillar (1) from the inside with rivets Ø 6.4x12.0 (areas Y₁ ).
