Center Roof Paneling Complete Replacement - Ar65.10-P-1000S

Model 223.0/1

Except Code 413 (Panoramic Sliding Sunroof/Glass Roof)

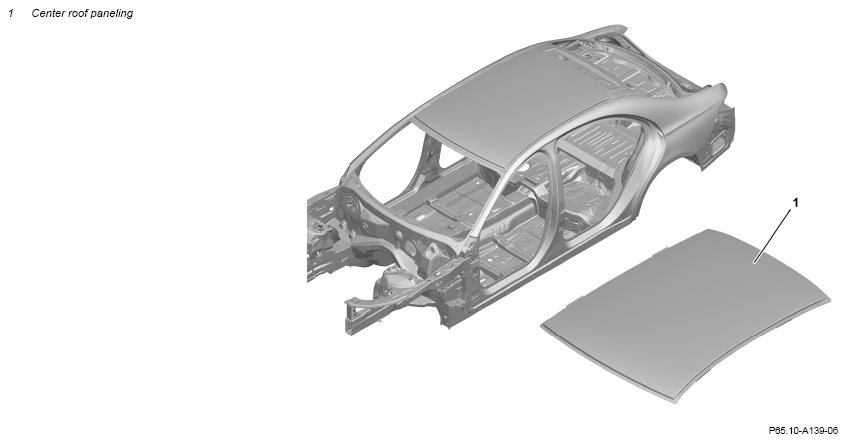

Fig 1: Center Roof Panel Component Locations (Model 223.0/1) (Except Code 413 (Panoramic Sliding Sunroof/Glass Roof))

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust	Wear dust filter mask, safety glasses, and protective gloves. Use a suitable, grounded dust extraction system.	AS60.00-Z-0007-01N
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on body repair		AH60.00-P-0001-01S
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Note on working on aluminum components and vehicles		AH60.00-P-0034-01RG
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blanket.
3	Remove center roof paneling (1).		AR65.10-P-1000-02S
	000 588 15 84 00 Heat gun		WS54.00-P-0125B
		Roof spacer blocks	Fig 2
	Install
4	Paint center roof paneling (1).
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting	Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.	AH98.00-P-0003-01A
5	Prepare center roof paneling (1).		AR65.10-P-1000-03S
6	Install center roof paneling (1).		AR65.10-P-1000-07S
		Model 223.0/1 except code 413 (Panoramic sliding sunroof/glass roof) except code Z07 (B7 armoring on special protection version) Nut roof carrier mount	*BA65.10-P-1001-01D
		Teroson MS 222	*BR00.45-Z-1157-02A
		2-component adhesive repair kit, Betaforce 2850L	*BR00.45-Z-1154-02A
		Sikaflex 234 adhesive	*BR00.45-Z-1203-02A
		Roof spacer blocks	Fig 2
7	Clean sheet metal flanges.
8	Remove spark protection blankets.
9	Clean repair area.
10	Install all detachable parts in area of repair point.

Fig 2: Roof Spacer Blocks (240 589 04 23 00)

Courtesy of MERCEDES-BENZ USA
