Center Roof Paneling Preparation For Installation - Ar65.10-P-1000-03S

Model 223.0/1

except code 413 (Panoramic sliding sunroof/glass roof)

The next steps are shown on model 223.1.

The superordinate service document as well as the safety information in the service document must be observed.

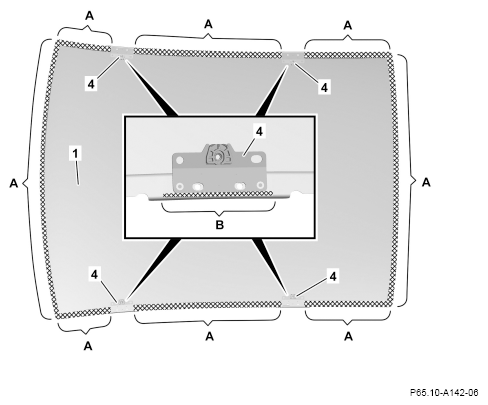

1. Heat bonding surfaces on center roof paneling (1) in crosshatched areas (areas A).

   Observe pretreatment of bonding surfaces.

2. Prepare bonding surfaces on holders (4) in cross-hatched areas (area B).

   Observe pretreatment of bonding surfaces.
