Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - AR83.30-S-1760EF

Model 447 With Code HH4 (THERMOTRONIC automatic climate control) With Code HX1 (Refrigerant R-1234yf)

Model 447 With Code HH9 (Air conditioner, automatic heater control) With Code HX1 (Refrigerant R-1234yf)

Model 447 With Code HX1 (Refrigerant R-1234yf) With Code HZ7 (TEMPMATIC semi-automatic air conditioning in rear)

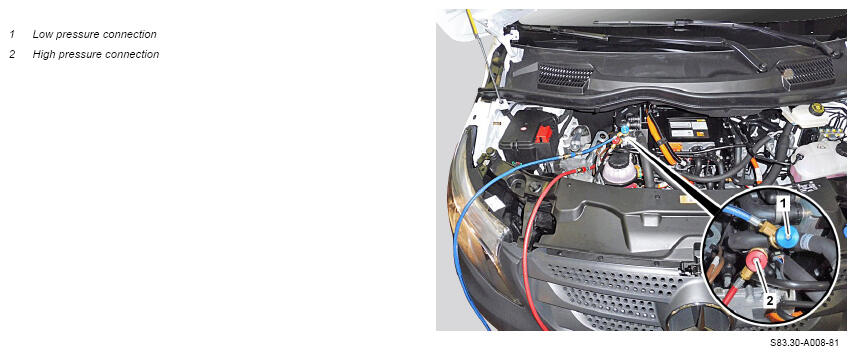

Shown With Engine 622.9

Courtesy of MERCEDES-BENZ USA

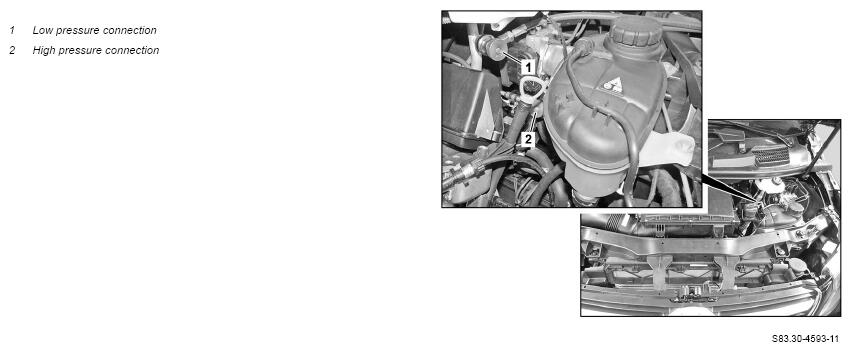

Shown With Engine 622.8

Courtesy of MERCEDES-BENZ USA

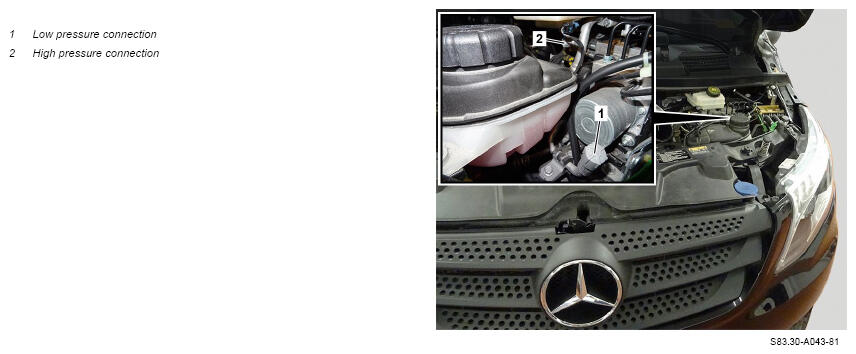

Shown With Engine 780.701

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447 with engine 780	AS00.00-Z-0035-01A
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Procedure for a damaged or leaky air conditioning system		AH83.30-P-0004-01KOA
Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Check
1	Read out Vehicle Documentation (VeDoc) and check code entries.	Model 447 with engine 780 The vehicle interior shutoff valve can be installed in the "NO" version or in the "NC" version. If code OB0 (NO SHUTOFF VALVE) is present in VeDoc, ↓ remove code OB0 (NO SHUTOFF VALVE). Codes can only be removed in VeDoc by a user with write permission.
	Connect
2	Remove plugs from refrigerant lines.	Video: Drain, evacuate and refill air conditioning and check for proper operation and leak tightness	GB83.30-D-0000-00A
3	Connect low-pressure connection (1) and high-pressure connection (2) of air conditioning service unit to refrigerant lines.
	000 588 18 82 00 R1234yf air conditioning service unit	When connecting and when operating the air conditioning service unit, the complete work procedure must be conducted in accordance with the operator's manual of the manufacturer.	WS83.00-P-0066B
	Analyze
4	Mount charger.	Model 447 with engine 780	AR54.10-S-1127E
5	Open vehicle interior shutoff valve using diagnostic system.	Model 447 with engine 780	AD00.00-S-2000-04E
	Connect STAR DIAGNOSIS and read out fault memory	Do not yet remove vehicle diagnosis system. If vehicle interior shutoff valve cannot be opened using diagnostic system, ↓ actuate vehicle interior shutoff valve separately with 12 V. To do so, disconnect electrical connector and use suitable adapter cables for MQS contacts. Electrical connection kit	Fig 1
6	Analyze refrigerant in air conditioning system.	Perform the refrigerant analysis using an analysis device integrated into the air conditioning service unit or an external analysis device with data transfer to the air conditioning service unit. The gas analysis is deemed positive if the refrigerant has a degree of purity of ≥ 98.5%. If a positive gas analysis is present. ↓ the refrigerant can be extracted from the air conditioning system into the internal container of the air conditioning service unit. If a negative gas analysis is present. ↓ Repeat gas analysis. The gas analysis must be performed up to 3 times. After a third negative gas analysis, the analysis device must be verified as per the operator's manual. If analysis device is functional and gas analysis is negative, ↓ extract contaminated refrigerant from air conditioning system into a recycling cylinder.
	Draining
7	Empty air conditioning system using the air conditioning service unit.	Extract refrigerant according to result of gas analysis. Document amount suctioned off of compressor oil.
	Check
8	Check receiver drier for re-usability.	The receiver drier can no longer be reused in the following cases: Vehicle is more than 5 years old Refrigerant is contaminated (color dark gray to black) Refrigerant compressor is blocked Refrigerant circuit has been damaged (e.g. after an accident) If one of the cases listed holds true: ↓ Replace drier cartridge. MODEL 447 with ENGINE 274, 651	AR83.30-S-6521E
		MODEL 447 with engine 622	AR83.30-S-6521EF
		Model 447 with engine 254, 654.9	AR83.30-S-6521EA
		Model 447 with engine 780	AR08.50-S-8022F
	Structural alterations
9	Replace vehicle interior shutoff valve.	If code OB0 (NO SHUTOFF VALVE) was present in VeDoc. Model 447 with engine 780 Vehicle interior shutoff valve in "NO" version must be replaced by a vehicle interior shutoff valve in "NC" version.	AR83.30-S-5481F
	Evacuate
10	Open vehicle interior shutoff valve using diagnostic system.	Model 447 with engine 780 If vehicle interior shutoff valve was replaced.	AD00.00-S-2000-04E
	Connect STAR DIAGNOSIS and read out fault memory	Do not yet remove vehicle diagnosis system. If vehicle interior shutoff valve cannot be opened using diagnostic system, ↓ actuate vehicle interior shutoff valve separately with 12 V. To do so, disconnect electrical connector and use suitable adapter cables for MQS contacts. Electrical connection kit	Fig 1
11	Clean refrigerant using air conditioning service unit and evacuate refrigerant circuit.
12	Conduct vacuum test using air conditioning service unit.	A fault message in the air conditioning service unit is an indication of a leak in the refrigerant circuit. If the air conditioning service unit shows a fault message, ↓ check air conditioning system for leakage.	AR83.30-S-1761E
	Filling
13	Add new compressor oil to the refrigerant circuit according to the oil filling capacity noted during extraction.
	Compressor oils (specification 362.1)	Only use the approved compressor oil. If proof is furnished that other compressor oils have been used, reimbursement of costs within the warranty and goodwill period will be refused. Daimler AG reserves the right to perform reexaminations. Correct compressor oil in refrigerant circuit. Otherwise, a wrongly measured oil filling capacity could damage the refrigerant compressor.	BB00.40-P-0362-01A
		Depending on the repair case, correct oil filling capacity accordingly. Model 447 with engine 780 Total filling capacity of refrigerant circuit	*BF08.50-Z-1001-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 except code HZ7 (TEMPMATIC semi-automatically controlled air conditioning system in rear passenger compartment) Total filling capacity of refrigerant in front air conditioning system	*BF83.00-Z-1001-01KOC
		Model 447 with engine 254, 274, 622, 651, 654 with code HZ7 (TEMPMATIC semi-automatically controlled air conditioning system in rear passenger compartment) Total filling capacity of refrigerant in front and rear air conditioning systems	*BF83.00-Z-1002-01KOC
		Model 447 with engine 780 Additional oil filling capacity after replacing system	*BF08.50-Z-1002-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 Additional oil filling capacity after replacing system	*BF83.00-Z-1004-01KOC
		Model 447 with engine 780 Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	*BF08.50-Z-1003-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 Additional oil filling quantity after sudden emptying of system (e.g. line ruptured)	*BF83.00-Z-1005-01KOC
		Model 447 with engine 254, 274, 622, 651, 654 Additional oil filling quantity after replacement of condenser	*BF83.00-Z-1006-01KOC
		Model 447 with engine 780 Additional oil filling quantity after replacement of evaporator (front end)	*BF08.50-Z-1004-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 Additional oil filling quantity after replacement of evaporator (front end)	*BF83.00-Z-1007-01KOC
		Model 447 with engine 254, 274, 622, 651, 654 with code HZ7 (TEMPMATIC semi-automatically controlled air conditioning system in rear passenger compartment) Additional oil filling quantity after replacement of evaporator (rear end)	*BF83.00-Z-1008-01KOC
		Model 447 with engine 780 Additional oil filling quantity after replacement of refrigerant line (front end)	*BF08.50-Z-1005-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 Additional oil filling quantity after replacement of refrigerant line (front end)	*BF83.00-Z-1009-01KOC
		Model 447 with engine 254, 274, 622, 651, 654 with code HZ7 (TEMPMATIC semi-automatically controlled air conditioning system in rear passenger compartment) Additional oil filling quantity after replacement of refrigerant line (rear end)	*BF83.00-Z-1010-01KOC
		Model 447 with engine 780 Additional oil filling quantity after replacement of desiccant cartridge	*BF08.50-Z-1007-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 Additional oil filling quantity after replacement of desiccant cartridge	*BF83.00-Z-1011-01KOC
		Model 447 with engine 780 Additional oil filling quantity with detectable leakage	*BF08.50-Z-1006-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 Additional oil filling quantity with detectable leakage	*BF83.00-Z-1013-01KOC
14	Fill air conditioning system with air conditioning service unit.
	Refrigerant (specification 361.1)		BB00.40-P-0361-01A
		Model 447 with engine 780 Total filling capacity of refrigerant circuit	*BF08.50-Z-1001-02KOF
		Model 447 with engine 254, 274, 622, 651, 654 Total filling capacity of refrigerant in front air conditioning system	*BF83.00-Z-1001-01KOC
		Model 447 with engine 254, 274, 622, 651, 654 Total filling capacity of refrigerant in front and rear air conditioning systems	*BF83.00-Z-1002-01KOC
	Check
15	Conduct pressure test using air conditioning service unit.	If there is a pressure drop during pressure test, ↓ check air conditioning system for leakage.	AR83.30-S-1761E
16.1	Close vehicle interior shutoff valve using diagnostic system.	Model 447 with engine 780 If vehicle interior shutoff valve was opened using diagnostic system. Do not yet remove vehicle diagnosis system.
16.2	Remove adapter cables from vehicle interior shutoff valve and connect electrical connector.	Model 447 with engine 780 If vehicle interior shutoff valve was actuated separately with 12 V. Electrical connection kit	Fig 1
	Disconnect
17	Disconnect low-pressure connection (1) and high-pressure connection (2) of air conditioning service unit from refrigerant lines.
18	Attach plugs to refrigerant lines.
	Check
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
19.1	Run engine for approx. 4 min at idle speed and check all systems relevant for the proper operation of the air conditioning system.	Model 447 with engine 254, 274, 622, 651, 654
19.2	Check function of air conditioning system or cooling system for high-voltage on-board electrical system using diagnostic device.	Model 447 with engine 780
			AD00.00-S-2000-04E
20	Disconnect charger.	Model 447 with engine 780	AR54.10-S-1127E

Fig 1: Identifying Electrical Connection Kit (220 589 07 99 00)

Courtesy of MERCEDES-BENZ USA
