Remove/Install AC Desiccant Cartridge - AR83.30-S-6521E
Model 447 With Engine 274, 651 With Code HH4 (THERMOTRONIC automatic climate control)
Model 447 With Engine 274, 651 With Code HH9 (Air conditioner, automatic heater control)
Model 447 With Engine 274, 651 With Code HZ7 (TEMPMATIC semi-automatic air conditioning in rear)
Model 448 With Engine 274

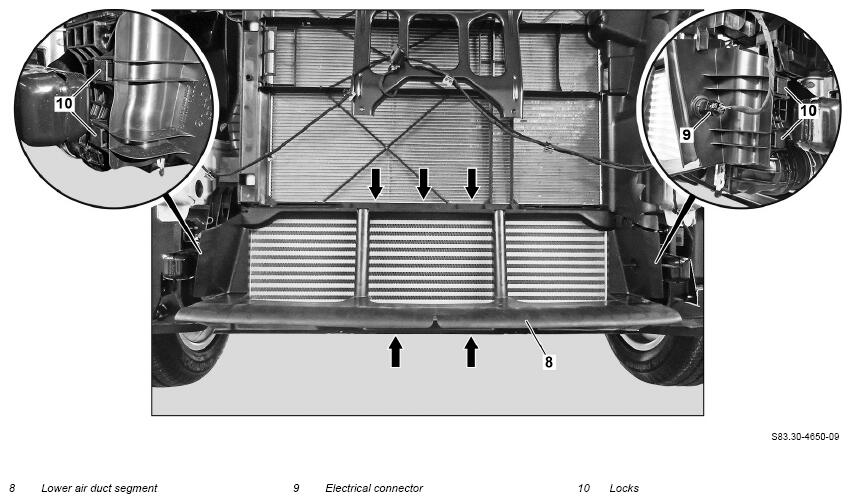

Shown On Model 447 With Engine 651

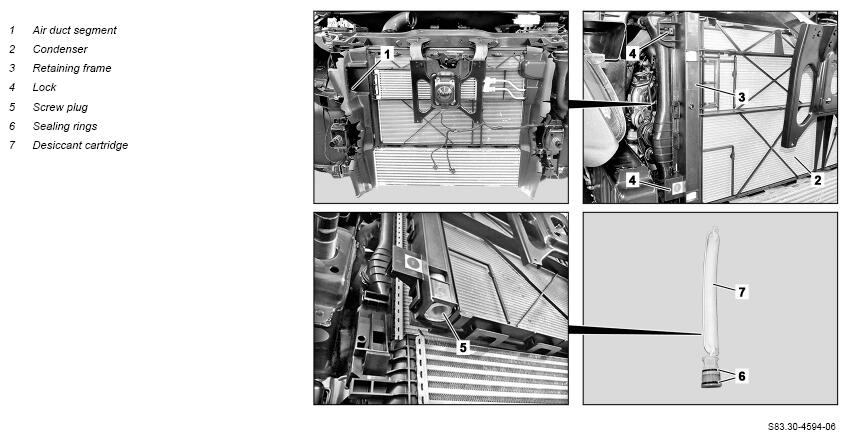

Fig 1: AC Desiccant Cartridge Components Location - Model 447 With Engine 274 With Code HH4, HH9, HZ7 (Shown With Engine 651)
Shown On Model 447 With Engine 274
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Notes on handling refrigerant R134a | AH83.30-P-0003-01KOA | ||
| Remove/install | |||
| 1 | Drain air conditioning system | Model 447 except code HX1 (Refrigerant R-1234yf), model 448 with engine 274 | AR83.30-S-1760E |
| Model 447 with code HX1 (R-1234yf refrigerant) | AR83.30-S-1760EF | ||
| 2 | Remove cross member under bumper | AR62.30-S-1360E | |
| 3 | Remove air duct segment (1) | ||
| 4 | Disconnect Electrical connection (9) | ||
| 5 | Release locks (10) and remove lower air duct segment (8) | ||
| 6 | Release locks (4) | ||
| 7 | Unclip retaining frame (3) with condenser (2) at right and swivel forward far enough to gain access to the screw plug (5) | ||
| 8 | Remove screw plug (5) from condenser (2) | ||
| 9 | Remove dryer cartridge (7) from condenser (2) | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| 10 | Install in the reverse order. |
