Remove/Install Battery - AR54.10-S-0005E
Model 447, 448
MODIFICATION NOTES
| 16.03.2022 | Use the diagnostic system to confirm the battery change in the SAM control unit in the "Actuations" menu item, added. | Operation step 10 | |
| 16.03.2022 | Perform redocumentation in VeDoc, added. | Operation step 11 |
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Remove/install | |||

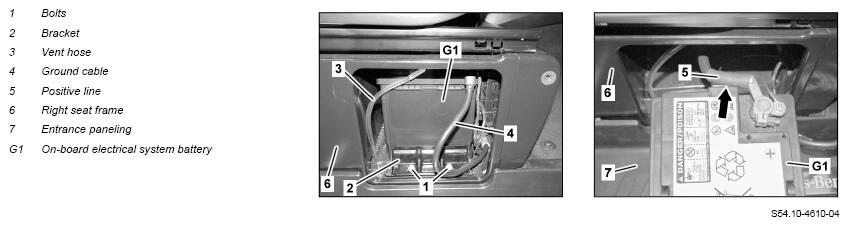

| 1 | Disconnect ground line (4) from on-board electrical system battery (G1). | AR54.10-S-0003E | |
| 2 | Unscrew screws (1) and remove bracket (2). | ||
| 3 | Detach vent hose (3) from on-board electrical system battery (G1). | Check that vent hose (3) is correctly seated. Otherwise escaping battery acid mist can cause damage to the vehicle. |
|
| 4 | Pull on-board electrical system battery (G1) out of guide under right seat base (6) and place onto door sill trim (7). | ||
| 5 | Remove positive terminal cover. | ||
| 6 | Disconnect positive line (5) of on-board electrical system battery (G1). | Before being connected, the positive line (5) must be aligned with the on-board electrical system battery (G1), as shown (arrow). Otherwise a short circuit can be caused through contact of the positive line (5) with the right seat base (6). |
*BA54.10-Z-1002-01KOF |
| Check | |||
| 7 | Check for absence of voltage of 12 V on-board electrical system. | Model 447 with code ME0 (Electric motor 85 kW) Model 447 with code ME4 (Electric motor 145 kW) |
|
| Service Information: Determine absence of voltage of 12 V on-board electrical system after removing the ground or positive line of the on-board electrical system battery | SI54.10-S-0072A | ||
| 000 588 07 19 00 Measuring instrument | WS54.00-Z-3005KOB | ||
| 8 | Remove on-board electrical system battery (G1). | ||
| 9 | Install in the reverse order. | ||
| 10 | Use the diagnostic system to confirm battery change in the SAM control unit in the "Actuations" menu item. | If the on-board electrical system battery (G1) was replaced. | |
| AD00.00-S-2000-04E | |||
| 11 | Perform redocumentation in VeDoc. | If the on-board electrical system battery (G1) was replaced. | |
| Service Information: Notes on safety-relevant components subject to redocumentation requirements | SI00.10-S-0033A |
BATTERY
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA54.10-Z-1002-01KOF | Bolt, positive line to positive terminal of on-board electrical system battery/additional battery | Nm | 5 |
