Remove/Install Headlamp Range Adjustment Front Axle Sensor - AR82.10-S-4083E
Model 447
With Code L45 (Multibeam LED with high beam assist plus)
Model 447
With Code LG2 (LED Intelligent Light System)
Model 448.8
With Code LG2 (LED Intelligent Light System)
Model 448
With Code L45 (Multibeam LED with high beam assist plus)

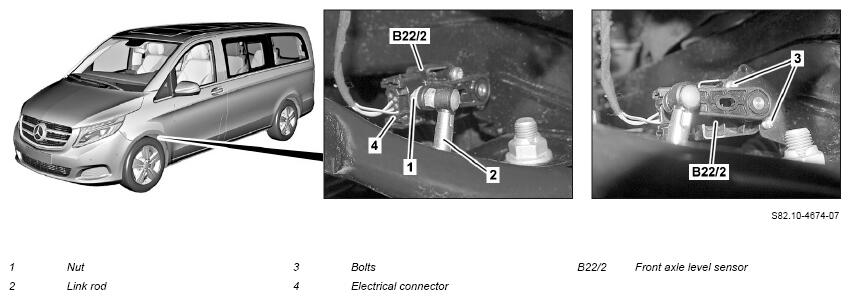

Fig 1: Headlamp Range Adjustment Front Axle Sensor Components Location - Model 447 With Code L45, LG2 (Shown Except Code ZG2)
Shown Except Code ZG2 (Permanent all-wheel drive)

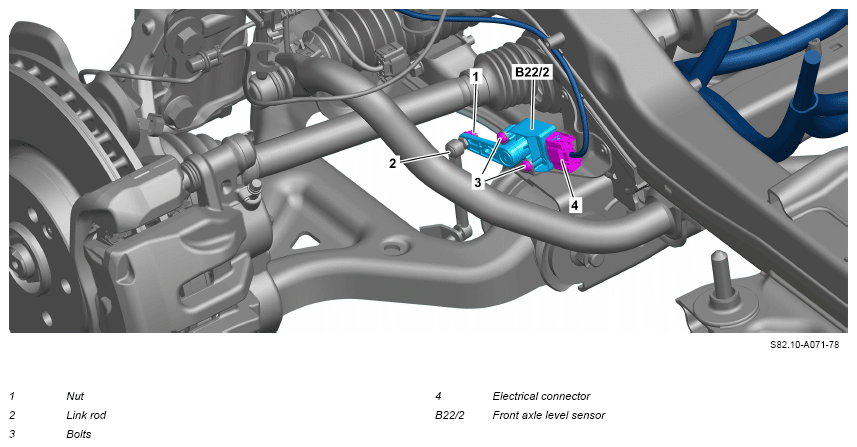

Shown With Code ZG2 (Permanent all-wheel drive)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Completely turn front wheels to right. | ||
| 2 | Lift vehicle using vehicle lift until front axle level sensor (B22/2) is accessible via left wheel arch. | AR00.60-S-1000E | |
| 3 | Remove nut (1). | ||
| 4 | Place link rod (2) to one side. | ||
| 5 | Tighten screws (3). | ||
| 6 | Disconnect electrical connector (4) and remove front axle level sensor (B22/2). | ||
| 7 | Install in the reverse order. | ||
| 8 | Adjust headlamps to zero position using diagnostic system. | When replacing the front axle level sensor (B22/2). | |
| AD00.00-S-2000-04E | |||
| Check | |||
| 9 | Check headlamp adjustment. | If headlamp adjustment is incorrect, ↓ Correct headlamp adjustment. |
AR82.10-S-1133E |
