Remove/Install Additional Brake Lamp - AR82.10-S-5376EA
Model 447, 448.7
With Code W65 (Tailgate)
| Remove | |||

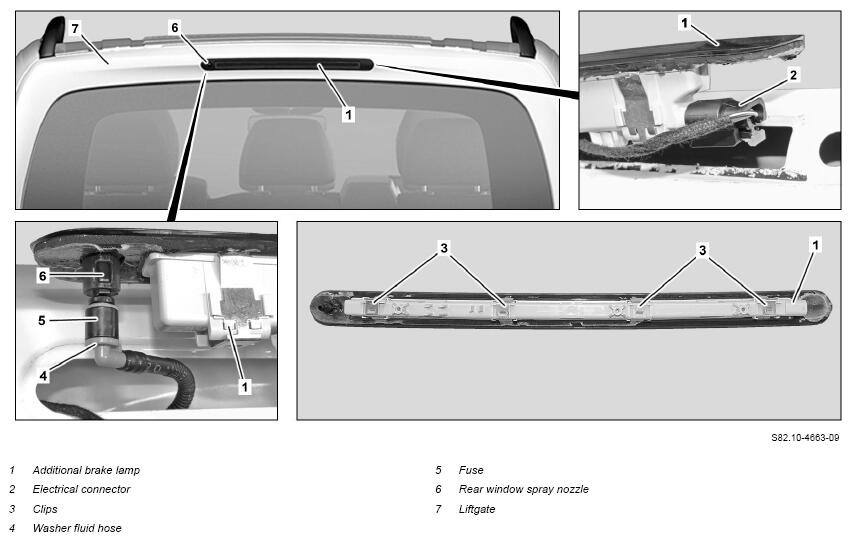

| 1 | Remove additional brake lamp (1) from liftgate (7). | AR82.10-S-5376-01E | |
| Fig 1 | |||
| Clean | |||
| 2 | Remove seal residue from liftgate (7). | Assembly cleaner | *BR00.45-Z-1028-04A |
| Install | |||
| 3 | Connect electrical connector (2). | ||
| 4 | Connect washer fluid hose (4) to rear window spray nozzle (6). | ||
| Check | |||
| 5 | Perform function test on additional brake lamp (1). | ||
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| 6 | Perform leak test on rear window spray nozzle (6). | If leaks occur, ↓ make sure sealing ring and retainer (5) are correctly seated. |
|
| Install | |||
| 7 | Remove interior trim from window frame of liftgate (7). | Model 447.7 with code V23 (Interior trim, superior version) and code W65 (Liftgate) except code ZK4 (Mixto) except code ZL3 (National version for Latin America) except code ZU7 (National version for Canada) except code ZU8 (National version for USA), model 447.7 with code VK7 (Trim on rear-end door/liftgate, superior version) and code W65 (Liftgate) and code ZL3 (National version for Latin America), model 447.7 with code VK7 (Trim on rear-end door/liftgate, superior version) and code W65 (Liftgate) and code ZU7 (National version for Canada), model 447.7 with code VK7 (Trim on rear-end door/liftgate, superior version) and code W65 (Liftgate) and code ZU8 (National version for USA), model 447.8 with code W65 (Liftgate), model 448.7 with code V23 (Interior trim, superior version) and code W65 (Liftgate) | AR72.20-S-1015E |
| 8 | Mount additional brake lamp (1). | AR82.10-S-5376-02E | |
| Pin for installation of additional brake lamp | WF58.50-S-8210-00E | ||
| 9 | Install interior trim on window frame of liftgate (7). | Model 447.7 with code V23 (Interior trim, superior version) and code W65 (Liftgate) except code ZK4 (Mixto) except code ZL3 (National version for Latin America) except code ZU7 (National version for Canada) except code ZU8 (National version for USA), model 447.7 with code VK7 (Trim on rear-end door/liftgate, superior version) and code W65 (Liftgate) and code ZL3 (National version for Latin America), model 447.7 with code VK7 (Trim on rear-end door/liftgate, superior version) and code W65 (Liftgate) and code ZU7 (National version for Canada), model 447.7 with code VK7 (Trim on rear-end door/liftgate, superior version) and code W65 (Liftgate) and code ZU8 (National version for USA), model 447.8 with code W65 (Liftgate), model 448.7 with code V23 (Interior trim, superior version) and code W65 (Liftgate) | AR72.20-S-1015E |
| Check | |||
| 10 | Check spray nozzle adjustment for rear window windshield washer system. | ||
| AP82.30-S-8252E |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
