Remove Bonded Additional Brake Lamp - AR82.10-S-5376-01E

Model 447, 448.7

With Code W65 (Tailgate)

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

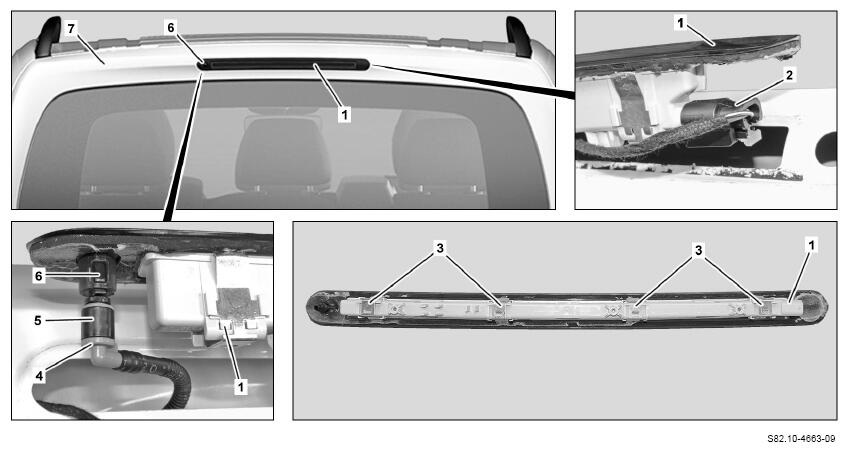

1. Separate adhesive seal of additional brake lamp (1) all round using long wedge.

   Gradually and carefully cut through adhesive seal without any lifting motion. Otherwise, the tailgate (7) may suffer some surface damage.

2. Starting on the left side of vehicle, use the long wedge to release the additional brake lamp (1) at the clips (3) and pass it far enough out of the tailgate (7) until the rear window spray nozzle (6) is accessible.
3. Detach washer fluid hose (4) from rear window spray nozzle (6).

   Handle washer fluid hose (4) and locking clip (5) carefully. Danger of breakage.

4. Disconnect electrical connector (2) and remove additional brake lamp (1).
