Upper A-Pillar Outer Paneling Replacement - Ar63.20-S-1105E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

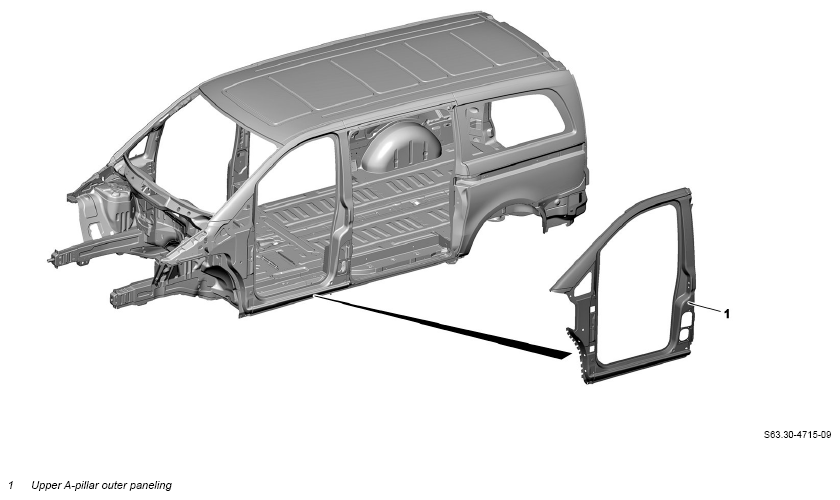

Shown on left side of vehicle

	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447 with engine 780	AS00.00-Z-0035-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with welding protection blankets.	Commercially available devices/tools  Welding protection blanket
3	Remove soundproofing.	Only in repair area.	AR60.00-S-1752E
4	Remove upper A-pillar outer paneling (1).	Commercially available devices/tools  Body power jigsaw Spot weld milling machine Rotary wire brush Wet and dry vacuum cleaner	AR63.20-S-1105-01E
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
5	Prepare upper A-pillar outer paneling (1) for installation.	Commercially available devices/tools  Body power jigsaw Rotary wire brush Hole punching pliers Wet and dry vacuum cleaner	AR63.20-S-1105-02E
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A
	Install
6	Install and weld in upper A-pillar outer paneling (1).		AR63.20-S-1105-03E
	000 588 12 84 00 Welder		WS00.00-P-0318K
	000 588 13 84 00 Welder	Commercially available devices/tools  Clamping pliers (Standard) Rotary wire brush Angular grinder Wet and dry vacuum cleaner	WS60.00-P-0437K
		Adjust gap dimensions	*BE60.00-Z-1002-01KOJ
		Adjust gap dimensions	*BE60.00-Z-1004-01KOJ
		Feeler gauge	Fig 1
7	Remove welding protection blankets.	Commercially available devices/tools  Welding protection blanket
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
8	Prime repair area with a primer filler.
Notice	Notes on paintwork repairs	Repair area must be free of dust and grease. Otherwise adhesion problems may occur Use only primer filler approved by Daimler AG: http://xentry.daimler.com	AH98.00-P-9408-02A
9	Seal seam after repair.		AR97.10-S-4000E
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
10	Paint repair area and adjacent surfaces.
Notice	Notes on paintwork repairs	Use only paints approved by Daimler AG, see: http://xentry.daimler.com	AH98.00-P-9408-02A
11	Supplement cavity preservation.		AR97.20-S-1500E
12	Install soundproofing.	Only in repair area.	AR60.00-S-1752E
13	Install all detachable parts in area of repair point.

ADJUST GAP DIMENSIONS

Number	Designation				Model 447, 448 except code W64, W65, W68	Model 447, 448 with code W64, W65, W68
BE60.00-Z-1002-01KOJ	Adjust gap dimensions	Fender to headlamp	Dimension "BA"	mm	2 (±1)	2 (±1)
		Fender to bumper	Dimension "BB"	mm	0, 3 (±0, 25)	0, 3 (±0, 25)
		Fender to A-pillar	Dimension "BC"	mm	2, 6 (±1)	2, 6 (±1)
		Fender to front door	Dimension "BD"	mm	4, 5 (±0, 8)	4, 5 (±0, 8)
		Fender to longitudinal member	Dimension "BE"	mm	4, 5 (±1, 2)	4, 5 (±1, 2)
			For picture, see		AR60.00-S-0700-01E	AR60.00-S-0700-01E

ADJUST GAP DIMENSIONS

Number	Designation				Model 447, 448 except code W64, W65, W68	Model 447, 448 with code W64, W65, W68
BE60.00-Z-1004-01KOJ	Adjust gap dimensions	Front door to longitudinal member	Dimension "DA"	mm	6 (+2/-1)	6 (+2/-1)
		Front door to sidewall	Dimension "DB"	mm	4 (±1)	4 (±1)
		Front door to sliding door	Dimension "DC"	mm	4 (+1, 2/-0, 8)	4 (+1, 2/-0, 8)
		Front door to A-pillar	Dimension "DD"	mm	4, 5 (+1, 5/-1)	4, 5 (+1, 5/-1)
		Front door to fuel filler door	Dimension "DE"	mm	4 (±1)	4 (±1)
			For picture, see		AR60.00-S-0700-01E	AR60.00-S-0700-01E

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42
