Hoods, Doors And Lids Body Gap Dimensions - Ar60.00-S-0700-01E
Model 447, 448
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|

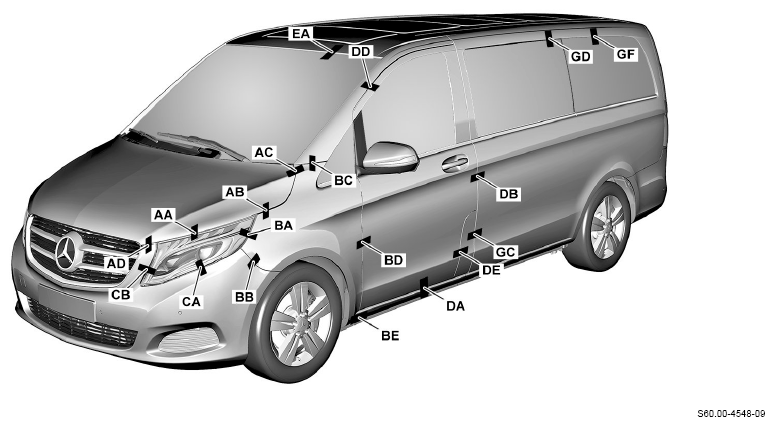

| BE60.00-Z-1001-01KOJ | Adjust gap dimensions | Engine hood to headlamp | Dimension "AA" | mm | 2, 5 (±1, 5) | 2, 5 (±1, 5) |
| Hood to fender at side | Dimension "AB" | mm | 4 (±0, 8) | 4 (±0, 8) | ||
| Hood to fender at top | Dimension "AC" | mm | 3, 5 (±0, 8) | 3, 5 (±0, 8) | ||
| Hood to radiator grille | Dimension "AD" | mm | 5 (±1) | 5 (±1) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1002-01KOJ | Adjust gap dimensions | Fender to headlamp | Dimension "BA" | mm | 2 (±1) | 2 (±1) |
| Fender to bumper | Dimension "BB" | mm | 0, 3 (±0, 25) | 0, 3 (±0, 25) | ||
| Fender to A-pillar | Dimension "BC" | mm | 2, 6 (±1) | 2, 6 (±1) | ||
| Fender to front door | Dimension "BD" | mm | 4, 5 (±0, 8) | 4, 5 (±0, 8) | ||
| Fender to longitudinal member | Dimension "BE" | mm | 4, 5 (±1, 2) | 4, 5 (±1, 2) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1003-01KOJ | Adjust gap dimensions | Headlamp to bumper | Dimension "CA" | mm | 2 (±1) | 2 (±1) |
| Headlamp to radiator grille | Dimension "CB" | mm | 2, 5 (±1) | 2, 5 (±1) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1004-01KOJ | Adjust gap dimensions | Front door to longitudinal member | Dimension "DA" | mm | 6 (+2/-1) | 6 (+2/-1) |
| Front door to sidewall | Dimension "DB" | mm | 4 (±1) | 4 (±1) | ||
| Front door to sliding door | Dimension "DC" | mm | 4 (+1, 2/-0, 8) | 4 (+1, 2/-0, 8) | ||
| Front door to A-pillar | Dimension "DD" | mm | 4, 5 (+1, 5/-1) | 4, 5 (+1, 5/-1) | ||
| Front door to fuel filler door | Dimension "DE" | mm | 4 (±1) | 4 (±1) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1005-01KOJ | Adjust gap dimensions | Windshield to roof paneling | Dimension "EA" | mm | 3, 5 (±1) | 3, 5 (±1) |
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|

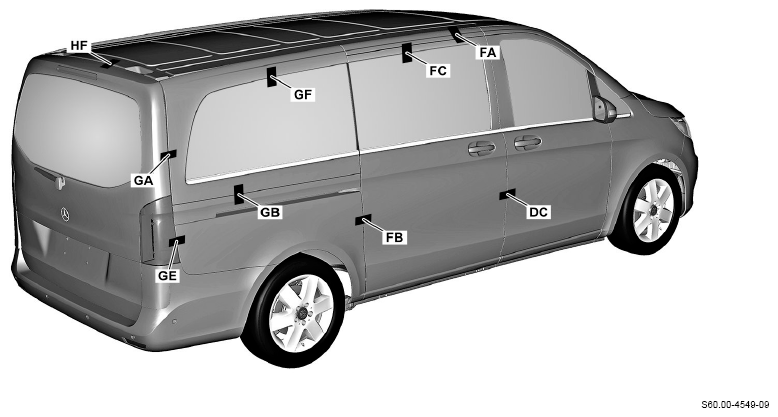

| BE60.00-Z-1006-01KOJ | Adjust gap dimensions | Sliding door to roof frame | Dimension "FA" | mm | 4, 5 (±1, 4) | 4, 5 (±1, 4) |
| Sliding door to sidewall | Dimension "FB" | mm | 4 (+1, 2/-0, 8) | 4 (+1, 2/-0, 8) | ||
| Glass pane in sliding door, all-round | Dimension "FC" | mm | 3 | 3 | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1007-01KOJ | Adjust gap dimensions | Sidewall to liftgate | Dimension "GA" | mm | - | 4, 5 (+1, 5/-0, 2) |
| Sidewall to cover on guide rail of sliding door | Dimension "GB" | mm | 1, 5 (±0, 8) | 1, 5 (±0, 8) | ||
| Side wall to fuel filler flap | Dimension "GC" | mm | 4, 5 (±1) | 4, 5 (±1) | ||
| Glass pane in sidewall at front, all-round | Dimension "GD" | mm | 3 | 3 | ||
| Side wall to tail lamp | Dimension "GE" | mm | 1, 2 (±0, 5) | 1, 2 (±0, 5) | ||
| Glass pane in sidewall at rear, all-round | Dimension "GF" | mm | 3 | 3 | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|

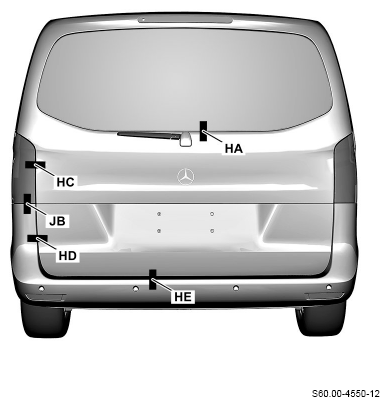

| BE60.00-Z-1008-01KOJ | Adjust gap dimensions | Rear window in liftgate, all-round | Dimension "HA" | mm | - | 4 (±1) |

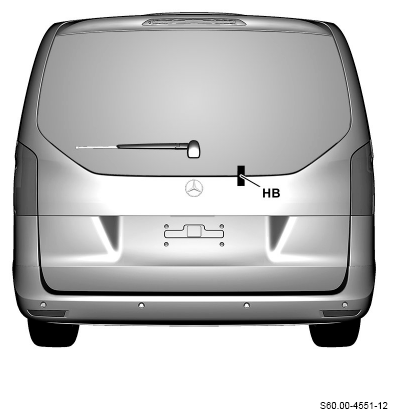

| Folding rear window in liftgate, all-round | Dimension "HB" | mm | - | 4 (±1) | ||
| Liftgate to taillamp | Dimension "HC" | mm | - | 4, 5 (±1) | ||
| Liftgate to bumper at side | Dimension "HD" | mm | - | 4 (±1) | ||
| Liftgate to bumper at bottom | Dimension "HE" | mm | - | 6 (±1, 5) | ||
| Liftgate to roof frame | Dimension "HF" | mm | - | 5, 5 (±1) | ||
| For picture, see | - | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|

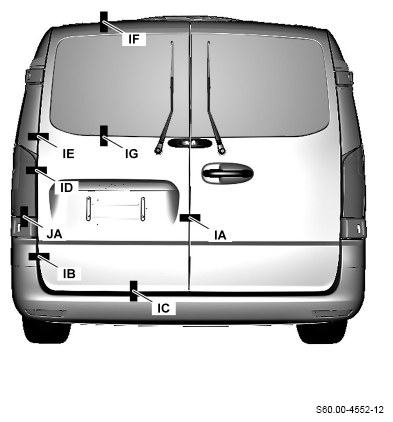

| BE60.00-Z-1009-01KOJ | Adjust gap dimensions | Left rear-end door to right rear-end door | Dimension "IA" | mm | 6 (±1) | - |
| Rear-end door to bumper at side | Dimension "IB" | mm | 4, 5 (±1) | - | ||
| Rear-end door to bumper at bottom | Dimension "IC" | mm | 6 (±1, 5) | - | ||
| Rear-end door to tail lamp | Dimension "ID" | mm | 6, 4 (±1) | - | ||
| Rear-end door to cover over taillamp | Dimension "IE" | mm | 6, 4 (±1) | - | ||
| Rear-end door to roof frame | Dimension "IF" | mm | 7 (±1, 5) | - | ||
| Rear window in rear-end door, all-round | Dimension "IG" | mm | 4 (±1) | - | ||
| For picture, see | AR60.00-S-0700-01E | - | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1010-01KOJ | Adjust gap dimensions | Tail lamp to hinge of rear-end door | Dimension "JA" | mm | 5 (±1) | - |
| Taillamp to bumper | Dimension "JB" | mm | 2 (±0, 8) | 2 (±0, 8) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
Adjust hoods, doors and trunk lids as shown in the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length.
If the inside clearance of the gap is too large or too small, the movable body parts must be centered accordingly.
The reference measurements apply only for repair work on bodies damaged in accidents.
