Upper A-Pillar Outer Paneling Installation - Ar63.20-S-1105-03E
Model 447, 448
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1002-01KOJ | Adjust gap dimensions | Fender to headlamp | Dimension "BA" | mm | 2 (±1) | 2 (±1) |
| Fender to bumper | Dimension "BB" | mm | 0, 3 (±0, 25) | 0, 3 (±0, 25) | ||
| Fender to A-pillar | Dimension "BC" | mm | 2, 6 (±1) | 2, 6 (±1) | ||
| Fender to front door | Dimension "BD" | mm | 4, 5 (±0, 8) | 4, 5 (±0, 8) | ||
| Fender to longitudinal member | Dimension "BE" | mm | 4, 5 (±1, 2) | 4, 5 (±1, 2) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||
ADJUST GAP DIMENSIONS
| Number | Designation | Model 447, 448 except code W64, W65, W68 | Model 447, 448 with code W64, W65, W68 | |||
|---|---|---|---|---|---|---|
| BE60.00-Z-1004-01KOJ | Adjust gap dimensions | Front door to longitudinal member | Dimension "DA" | mm | 6 (+2/-1) | 6 (+2/-1) |
| Front door to sidewall | Dimension "DB" | mm | 4 (±1) | 4 (±1) | ||
| Front door to sliding door | Dimension "DC" | mm | 4 (+1, 2/-0, 8) | 4 (+1, 2/-0, 8) | ||
| Front door to A-pillar | Dimension "DD" | mm | 4, 5 (+1, 5/-1) | 4, 5 (+1, 5/-1) | ||
| Front door to fuel filler door | Dimension "DE" | mm | 4 (±1) | 4 (±1) | ||
| For picture, see | AR60.00-S-0700-01E | AR60.00-S-0700-01E | ||||

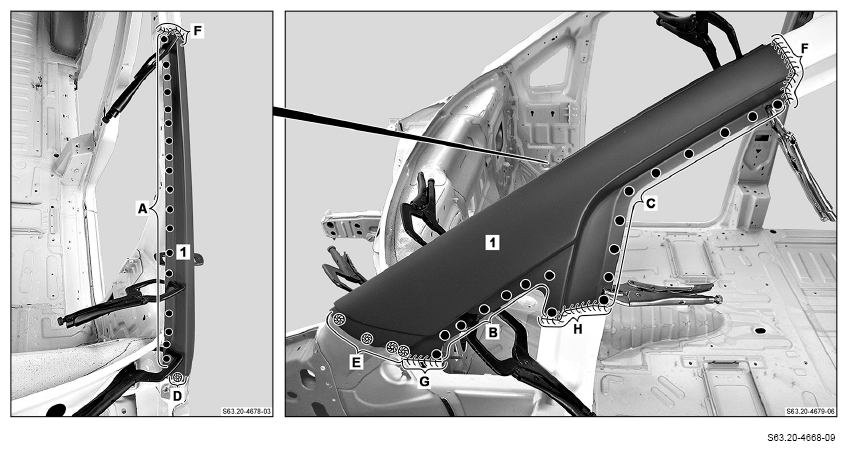

- Install top A-pillar outer paneling (1), fit and fix in place.
- Install front door and fender.
- Insert windshield.
- Adjust gap dimensions with
feeler gauge and adjust.
- Remove front door, fender and windshield.
- Top A-pillar outer paneling (1)
(areas A to C).
- Top A-pillar outer paneling (1)
(areas D and E).
- Top A-pillar outer paneling (1)
(areas F to H).
- Grind inert gas welds and inert gas spot welds down flat (areas D to H).
- Clean all weld joints.
- Restore surfaces on top A-pillar outer paneling (1) and smooth.
- Remove shavings and drill chips.
