Upper Outer A-Pillar Paneling Removal - Ar63.20-S-1105-01E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

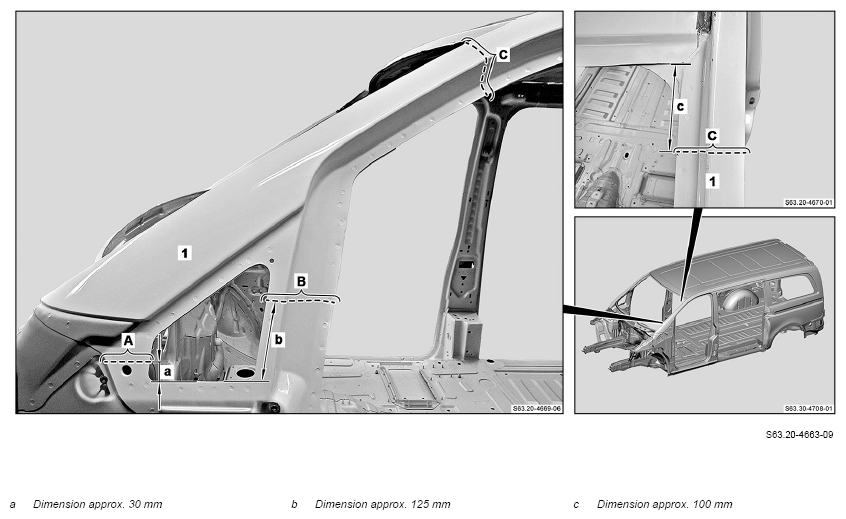

1. Mark separating points and cut (areas A to C).

   Do not make the cuts too deep. Otherwise the components below can be damaged and weakened.

   Courtesy of MERCEDES-BENZ USA

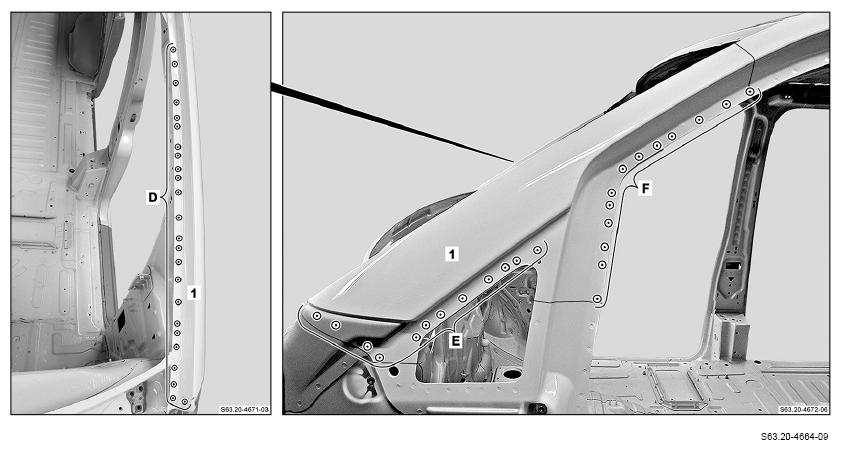

2. Expose spot welds on top A-pillar outer paneling (1) and cut out (areas D to F).
3. Remove damaged top A-pillar outer paneling (1).

   Courtesy of MERCEDES-BENZ USA

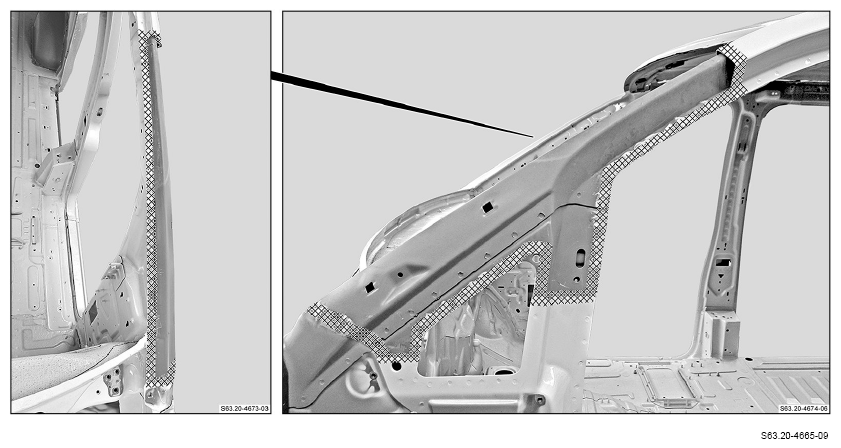

4. Sand down mating surfaces to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove shavings and drill chips.
6. Coat insides of spot weld flanges with zinc dust paint.
