Adjust Parking Brake - AR42.20-S-0540EA

Model 447.6/7, 448.7

Except Code B25 (Electric parking brake)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Special instructions for lifting and supporting vehicle		AH00.60-S-0100-01KOA
	Remove
1	Release parking brake.
2	Raise vehicle.		AR00.60-S-1000E
3.1	Unscrew one wheel bolt from each rear wheel.	Model 447.6/7 with code RS3 (Steel wheels 6.5 J x 16), model 447.6/7 with code RS7 (Steel wheels 6.5 J x 17)
3.2	Remove rear wheels.	Model 447.6/7 except code RS3 (Steel wheels 6.5 J x 16) except code RS7 (Steel wheels 6.5 J x 17) Model 448.7	AR40.10-S-1100E
4	Remove left center and rear center underfloor paneling.	Model 447.6/7 with engine 654.9 with code CU4 (Aerodynamics package)	AR61.30-S-1001E

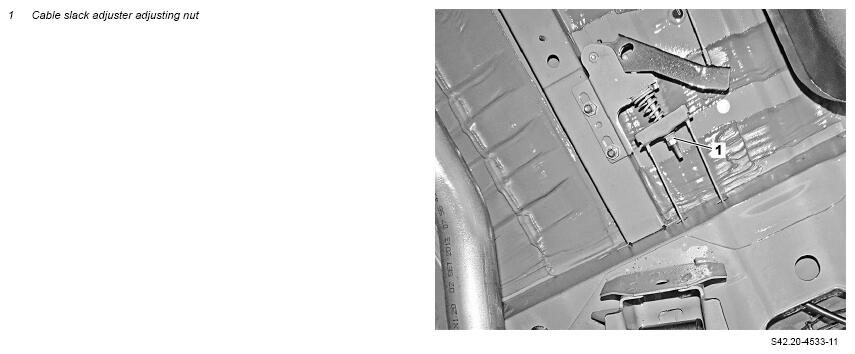

5	Loosen counternut of cable slack adjuster adjusting nut (1) a few turns.	If installed.
	Adjust
6	Loosen cable slack adjuster adjusting nut (1).

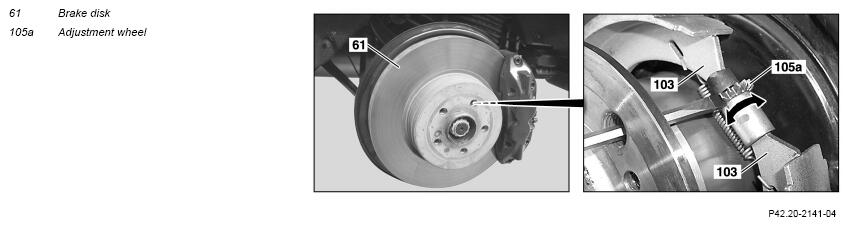

7	Adjust parking brake.	Turn the adjustment wheel (105a) far enough until the rear wheel or the brake disk (61) locks. Then turn the adjustment wheel (105a) by 9 teeth in the opposite direction. The overrunning clutch must be guaranteed in the process. If necessary, ↓ turn the rear wheel or brake disk (61) slightly until the adjustment wheel (105a) is accessible through the threaded hole.
8	Adjust rear brake cables.		AR42.20-S-0540-01E
	000 588 32 21 00 Roller brake test stand		WS42.00-P-0116B
		Force on parking brake pedal at first notch	*BE42.20-Z-1003-01KOB
9	Tighten counternut of cable slack adjuster adjusting nut (1) again.	If installed.
	Install
10.1	Screw in wheel bolts and tighten.	Model 447.6/7 with code RS3 (Steel wheels 6.5 J x 16), model 447.6/7 with code RS7 (Steel wheels 6.5 J x 17) Steel rim wheel bolt	*BA40.10-Z-1001-01KOH
10.2	Attach rear wheels.	Model 447.6/7 except code RS3 (Steel wheels 6.5 J x 16) except code RS7 (Steel wheels 6.5 J x 17), model 448.7	AR40.10-S-1100E
	Check
11	Check that the parking brake is functioning correctly.
		If it is functioning incorrectly, ↓ repeat the adjustment procedure.	AP42.00-S-4290E
12	Install left center and rear center underfloor paneling.	Model 447.6/7 with engine 654.9 with code CU4 (Aerodynamics package)	AR61.30-S-1001E
