Inspect Condition Of Brake Disks - AP42.10-S-4258E

Model 447, 448

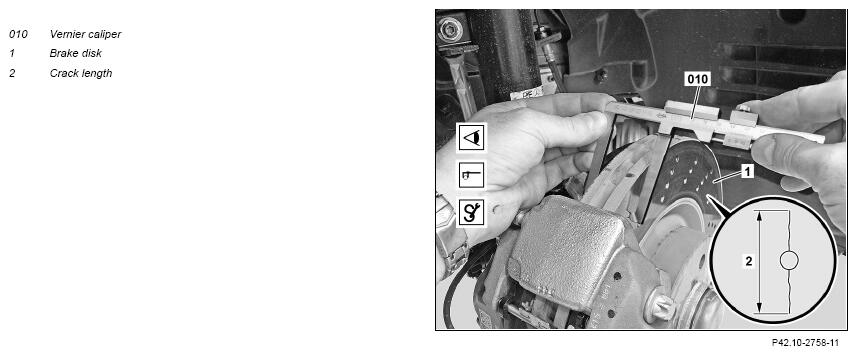

Disk brake example

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove
1	Remove wheels.
			AR40.10-S-1100E
	Check
2	Check brake disks (1) on front and rear axle for score marks and cracks.	Cracks can occur due to high stress. Brake disks (1) must be replaced for a crack length (x) > 25 mm, gaping cracks or score marks deeper than 0.5 mm or pitted corrosion or deeply contoured ridging at the outer edge. At the brake disks (1), if gaping cracks, score marks deeper than 0.5 mm, pitted corrosion or deeply contoured ridging are present at the outer edge, ↓ replace brake disks (1) per axle.
		Remove/install front axle brake disk	AR42.10-S-0230E
		Remove/install rear axle brake disk After obtaining special order.	AR42.10-S-0240E
	Measure
3	Measure thickness of brake disks on front and rear axles using vernier caliper (010).	Brake disk thickness	*BE42.10-Z-1001-08KOH
		Brake disk thickness	*BE42.10-Z-1001-09KOB
		Caliper gauge If the wear limit has been exceeded or will be exceeded before the next brake pad change, ↓ replace brake disks (1) per axle.	Fig 1
		Remove/install front axle brake disk	AR42.10-S-0230E
		Remove/install rear axle brake disk After obtaining special order.	AR42.10-S-0240E
	Install
4	Attach wheels.
			AR40.10-S-1100E

CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number	Designation			Model 447, 448 With 16" brake system	Model 447, 448 with 17" brake system
BE42.10-Z-1001-08KOH	Brake disk thickness	Thickness when new	mm	28	32
		Wear limit	mm	25	28
		Lateral runout (max.)	mm	0, 01	0, 01
		Axial runout (max.)	mm	0, 04	0, 04
		Measure outside diameter	mm	300	330

CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number	Designation			Model 447, 448
BE42.10-Z-1001-09KOB	Brake disk thickness	New	mm	12
		Wear limit	mm	9
		Max. lateral runout	mm	≤ 0, 01
		Max. axial runout	mm	≤ 0, 04
		Repair limit dimension	mm	-

Fig 1: Identifying Caliper Gauge (140 589 00 19 00)

Courtesy of MERCEDES-BENZ USA
