Remove/Install Front Bumper - AR88.20-S-2000E

Model 447, 448

MODIFICATION NOTES

19.12.2023 Work procedure revised The whole document
G16488751Courtesy of MERCEDES-BENZ USA
G16488752Courtesy of MERCEDES-BENZ USA

Shown on Model 447 except code XM0 (Facelift)

G16488753Courtesy of MERCEDES-BENZ USA

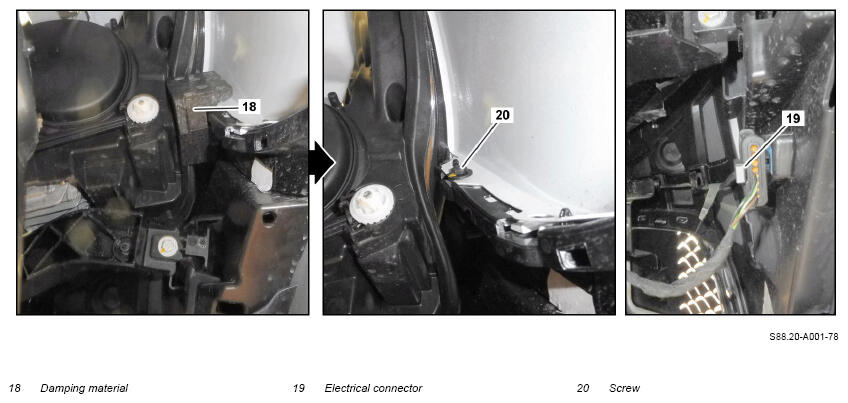

Shown on the right side of the vehicle on Model 447.8 with code XM0 (facelift)

G16488754Courtesy of MERCEDES-BENZ USA

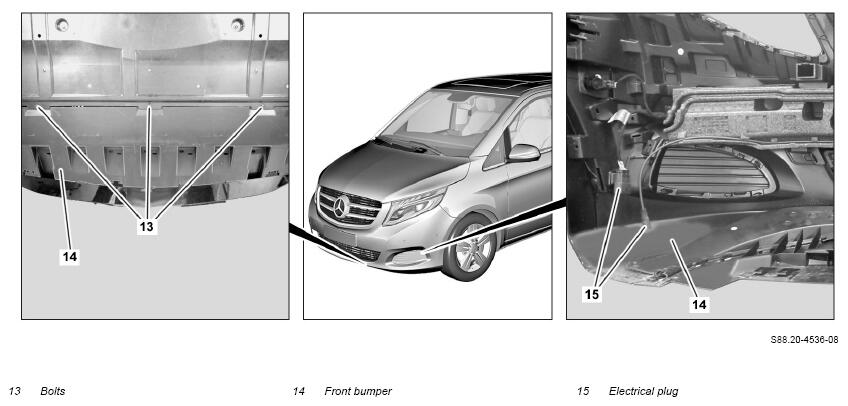

Shown on Model 447.8 with code EZ7 (Active Parking Assist), with code JS1 (360° camera) and except code XM0 (facelift)

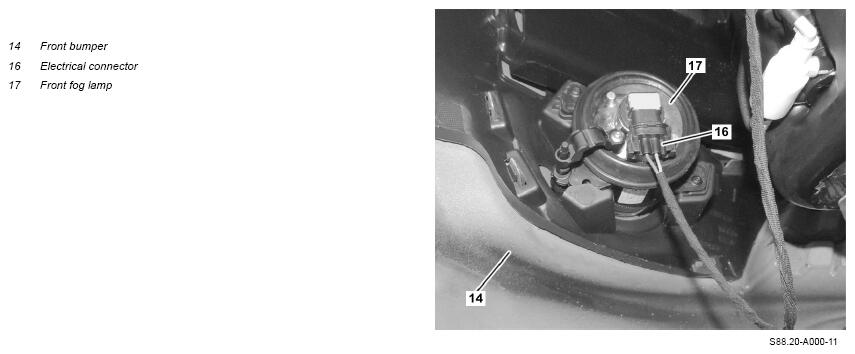

Shown on the left side of the vehicle on Model 447.6 with code L16 (halogen front fog lamp) and except code XM0 (facelift)

G16488755Courtesy of MERCEDES-BENZ USA
G16488756Courtesy of MERCEDES-BENZ USA

Shown on Model 447 with engine 780.702

Shown on Model 447 with engine 780.702

G16488757Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.
Model 447 with engine 780
AS00.00-Z-0035-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment Model 447 with engine 780 AH00.00-Z-0300-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1 Open socket flap (21). Model 447 with engine 780.702/705
2 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).

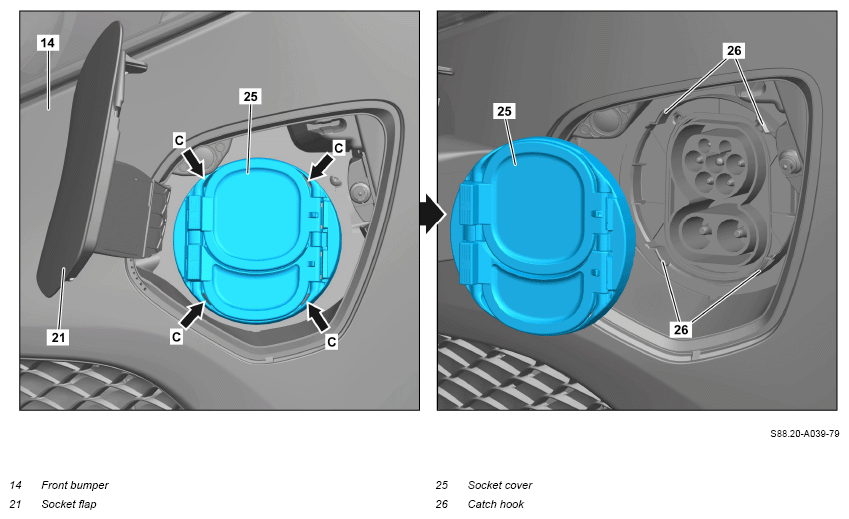

3 Release socket cover (25) through openings (arrows C) at catch hooks (26) with a suitable tool and remove. Model 447 with engine 780.702/705
NOTES Carefully release socket cover (25).
Damage may occur otherwise.

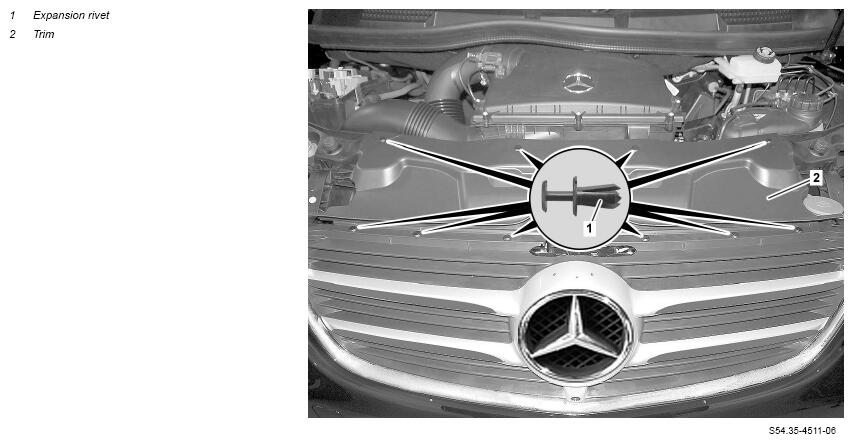

4 Remove trim (2). IMPORTANT To do this, remove expansion rivets (1).
SPECIAL TOOL Clip remover
Fig 1

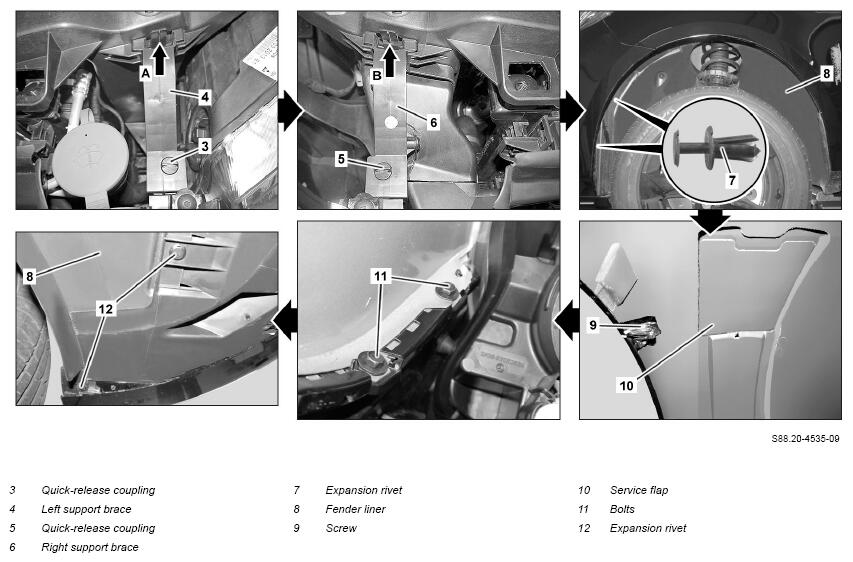

5 Open quick-release fastener (3).
6 Unclip the catch hook (arrow A) and remove the left support (4).
7 Open quick-release fastener (5).
8 Unclip the catch hook (arrow B) and remove the right support (6).
9 Remove expansion rivets (7) at left and right fender liner (8). SPECIAL TOOL Clip remover Fig 1
10 Remove screw (9) in the left and right fender liner (8).
11 Open service flap (10) in left and right fender liner (8).
12 Remove damping (18) on both sides of the vehicle.
13.1 Remove screws (11) on both sides of the vehicle. Model 447
except code XM0 (Facelift)
except code XM7 (MOPF II)
Model 448
except code XM7 (MOPF II)

13.2 Remove screw (20) on both sides of the vehicle. Model 447
with code XM0 (Facelift)
Model 447
with code XM7 (MOPF II)
Model 448
with code XM7 (MOPF II)

14 Remove expansion rivets (12) at left and right fender liner (8). SPECIAL TOOL Clip remover Fig 1
15 Unscrew bolts (13).
16 Remove front bumper (14) until the electrical plugs (15, 16, 19) are accessible. IMPORTANT The number of electrical connectors (15, 16, 19) varies depending on the equipment installed.
Helper required.

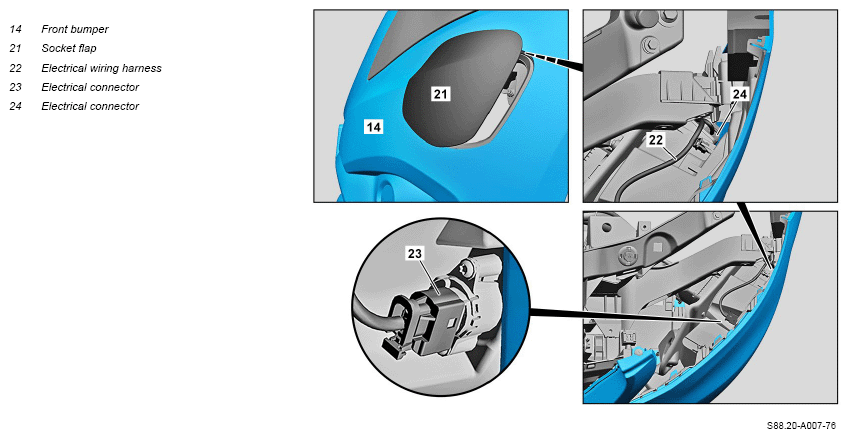

17 Remove electrical wiring harness (22) from front bumper (14). Model 447 with engine 780.702/705
IMPORTANT To do this, disconnect electrical connectors (23, 24) and remove retaining clamps of electrical wiring harness (22).
IMPORTANT Helper required.
SPECIAL TOOL Clip remover
Fig 1
18 Remove front bumper (14). IMPORTANT To do this, disconnect electrical plugs (15, 16, 19). The number of electrical connectors (15, 16, 19) varies depending on the equipment installed.
Helper required.

INSPECT Check
19 Check all expansion rivets (1, 7, 12) for damage. If damage is present:

Replace damaged expansion rivets (1, 7, 12).

INSTALLING Install
20 Position front bumper (14) on the vehicle and connect electrical plugs (15, 16, 19). IMPORTANT The number of electrical connectors (15, 16, 19) varies depending on the equipment installed.
Helper required.

21 Install electrical wiring harness (22) at front bumper (14). Model 447 with engine 780.702/705
IMPORTANT To do this, position front bumper (14) on vehicle, install retaining clamps of electrical wiring harness (22), and connect electrical connectors (23, 24).
IMPORTANT Helper required.
Check retaining clamps of electrical wiring harness (22) for damage.
If damage is present:

Replace damaged retaining clamps of electrical wiring harness (22).

22 Install front bumper (14). IMPORTANT Helper required.
If lower engine compartment lining is installed:

Insert lower guides of front bumper (14) correctly.

23 Install left support (4) and lock catch hook (arrow A).
24 Close quick-release fastener (3).
25 Install right support (6) and lock catch hook (arrow B).
26 Close quick-release fastener (5).
27 Screw screw (9) into the left and right fender liner (8).
28 Adjust front bumper (14).   AR88.20-S-2001E
29.1 Screw in screws (11) on both sides of the vehicle. Model 447
except code XM0 (Facelift)
except code XM7 (MOPF II)
Model 448
except code XM7 (MOPF II)

29.2 Screw in screw (20) on both sides of the vehicle. Model 447
with code XM0 (Facelift)
Model 447
with code XM7 (MOPF II)
Model 448
with code XM7 (MOPF II)

30 Insert damping (18) on both sides of the vehicle.
31 Close service flap (10) in the left and right fender liner (8).
32 Install expansion rivets (7) on the left and right fender liner (8).
33 Install expansion rivets (12) at left and right fender liner (8).
34 Screw in screws (13).
35 Install trim (2). IMPORTANT Ensure that cover (2) is seated correctly.
Check expansion rivet (1) for damage.
If damage is present:

Replace respective expansion rivet (1).

36 Clip the socket cover (25) into the catch hook (26).
INSPECT Check
37 Check function of charger feed socket. Model 447 with engine 780.702/705
IMPORTANT When doing so, also check function of charging interruption button.

38 Check function of socket flap lock (21). Model 447 with engine 780.702
39 Adjust front fog lamps (17). Model 447.6/7 with code L16 (Fog lamps Halogen)
Model 448.7
AR82.10-S-1132E
40 Perform function test of the "Active Parking Assist" system. Model 447, 448 with code EZ7 (Active Parking Assist)
41 Perform function test of the collision warning system radar sensor with diagnostic system. Model 447 with code JA6 (Active Brake Assist System)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-S-2000-04E
  Calibrate
42 Calibrate front 360° camera with vehicle diagnosis system. Model 447.8, 448.8 with code JS1 (360° camera (SURROUND VIEW))
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-S-2000-04E
43 Calibrate DISTRONIC sensor with diagnostic system. Model 447
with code BA3 (Active Brake Assist System)
with code XM0 (Facelift)
Model 447 with code ET4 (Active Distance Assist DISTRONIC)
with code XM0 (Facelift)
Model 447
with code JP2 (Driving Assistance package)
with code XM0 (Facelift)

REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-S-2000-04E
REFER TO SPECIAL TOOLS 000 588 17 21 00 Adjusting device   WS30.00-P-0006B
Fig 1: Identifying Clip Remover (452 589 01 63 00)
G09980802Courtesy of MERCEDES-BENZ USA
