Remove/Install Engine Hood Cable - AR88.40-S-3150E

Model 447, 448

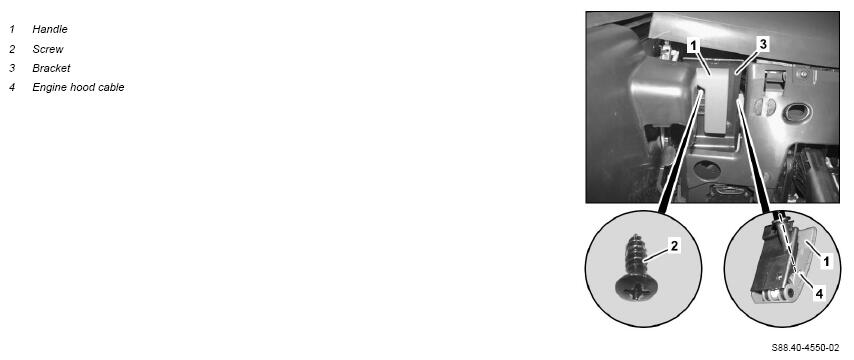

Shown on Model 447.7

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Unlock engine hood
2	Unscrew bolt (2) from handle (1)
3	Guide handle (1) downward out of bracket (3)	Do not pull too strongly on engine hood cable (4). Otherwise the grommet of the engine hood cable (4) can be pulled out of the opening in the firewall.
4	Unhook engine hood cable (4) from handle (1) and remove handle (1)	Do not pull too strongly on engine hood cable (4). Otherwise the grommet of the engine hood cable (4) can be pulled out of the opening in the firewall.
5	Install in the reverse order
	Check
6	Lock engine hood, unlock and lock again	To check handle (1) and engine hood cable (4) for proper function.
