Remove/Install Side Paneling On Dashboard - AR68.10-S-1503E

Model 447, 448

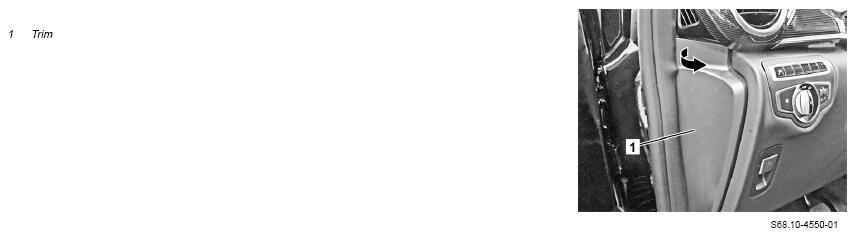

Shown On model 447.8 on left side of vehicle without code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

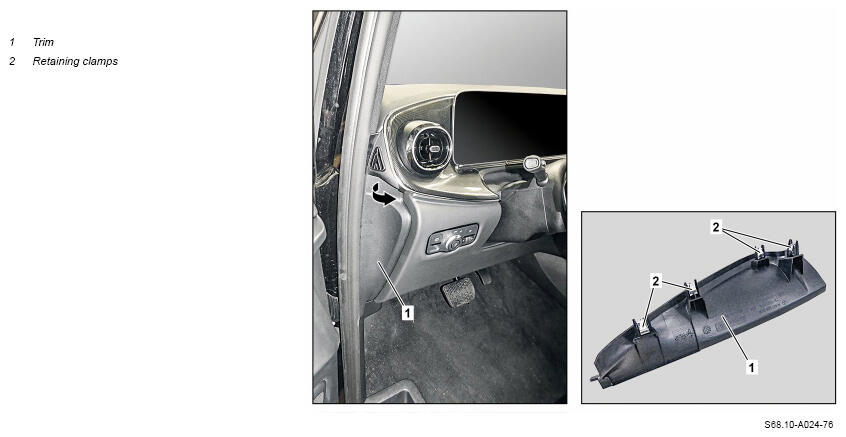

Shown On model 447.8 on left side of vehicle With Code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove trim (1).	To do so, unclip the trim (1) and remove it in the direction of the arrow. Check retaining clamps (2) for damage. Long wedge If damage is present: ↓ Replace trim (1).	Fig 1
2	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
