Remove/Install Parking System Control Unit - AR54.65-S-0018EH
Model 447
With Code EZ5 (Active Parking Assist with reversing camera)
With Code XM7 (MOPF II)
Model 447
With Code EZ6 (Parking package with 360-degree camera)
With Code XM7 (MOPF II)
Model 447
With Code JB6 (Parking package with 360-degree camera)
With Code XM7 (MOPF II)
Model 447
With Code JB7 (Parking Package with reversing camera)
With Code XM7 (MOPF II)

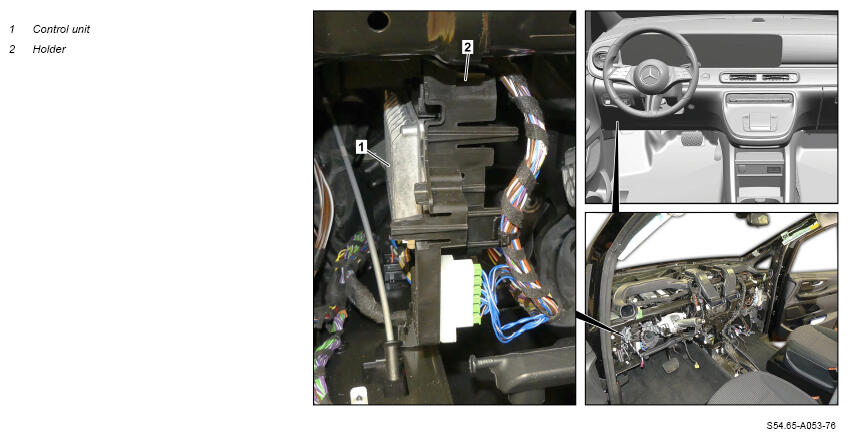

Shown with removed instrument panel
Shown with removed instrument panel
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with Motor 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

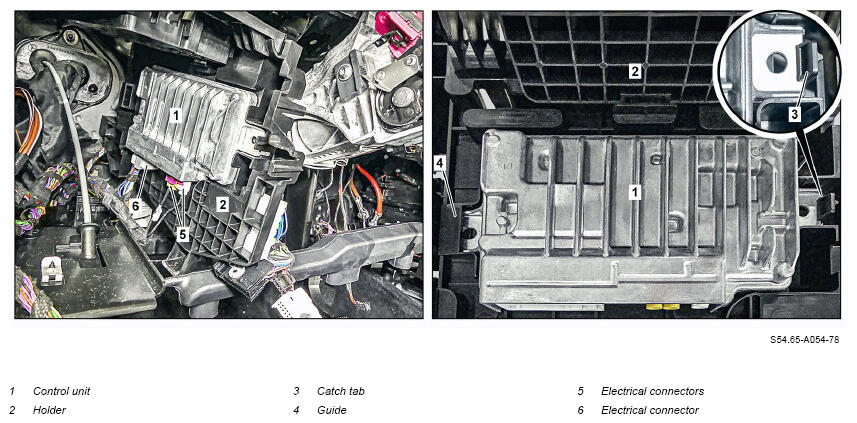

| 1 | Buffer basic data of control unit (1) in diagnostic system. | When replacing the control unit (1). | |
Do not yet remove diagnostic system. |
AD00.00-S-2000-04E | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove holder for hood cable release handle. | AR88.40-S-0002E | |
| 4 | Remove control unit (1). | ||
| 5 | Pull control unit (1) downward until electrical connectors (5, 6) are accessible. | ||
| 6 | Release and disconnect electrical connector (6). | ||
| 7 | Remove control unit (1). | ||
| 8 | Install in the reverse order. | ||
| Commissioning | |||
| 9 | Perform SCN coding of control unit (1). | When replacing the control unit (1). |
AR54.21-S-0015E |
| 10 | Commission control unit (1). | When replacing the control unit (1). | |
| AD00.00-S-2000-04E | |||
| 11 | Remove diagnostic system. |
