Remove/Install Backup Camera - AR54.65-S-0030E

Model 447, 448.8

With Code FR8 (Rear view camera)

With Code W65 (Tailgate)

Model 447, 448.8

With Code JB6 (Parking package with 360-degree camera)

With Code W65 (Tailgate)

Model 447, 448.8

With Code JB7 (Parking Package with reversing camera)

With Code W65 (Tailgate)

Model 447.8, 448.8

With Code JS1 (360° camera (SURROUND VIEW))

With Code W65 (Tailgate)

Model 447

With Code EZ5 (Active Parking Assist with reversing camera)

With Code W68 (EASY-PACK-tailgate)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Model 447

With Code EZ6 (Parking package with 360-degree camera)

With Code W68 (EASY-PACK-tailgate)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Model 447

With Code FR8 (Rear view camera)

With Code W68 (EASY-PACK-tailgate)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Model 447

With Code JB7 (Parking Package with reversing camera)

With Code W68 (EASY-PACK-tailgate)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Model 447

With Code JS1 (360° camera (SURROUND VIEW))

With Code W68 (EASY-PACK-tailgate)

Except Code W50 (Rear-end door, double-wing, 180 degrees without window)

Except Code W54 (2-wing rear-end door, 270 degrees)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with Motor 780	AH00.00-Z-0300-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).

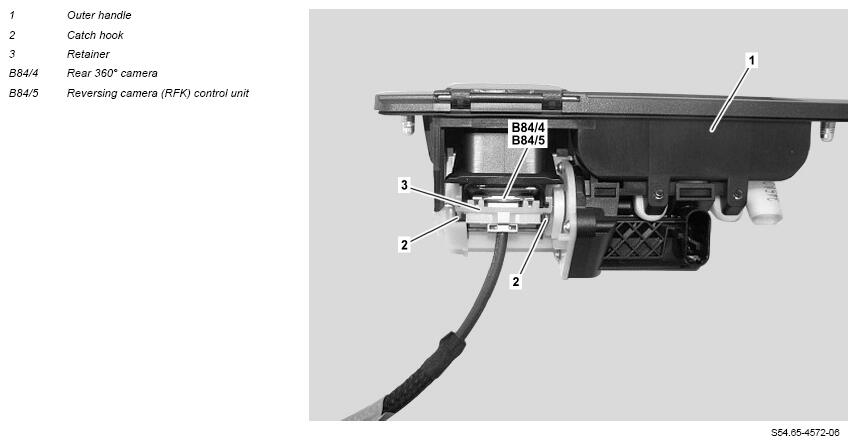

2	Remove outer handle (1) from tailgate.		AR72.20-S-7320E
3	Release catch hooks (2) and remove retainer (3) from outer handle (1).
4.1	Remove reversing camera (RFK) control unit (B84/5).	Model 447 with code FR8 (Reversing camera) Pay attention to the installation position of the reversing camera (RFK) control unit (B84/5).
4.2	Remove rear 360° camera (B84/4).	Model 447, 448.8 with code JB6 (Parking Package with 360° camera), Model 447, 448.8 with code JB7 (Parking Package with reversing camera), Model 447, 448.8 with code JS1 (360° camera (360° CAMERA, SURROUND VIEW)), Model 447 with code EZ5 (Active Parking Assist with reversing camera) or with code EZ6 (Parking Package with 360° camera) Pay attention to the installation position of the rear 360° camera (B84/4).
5	Install in the reverse order.
6	Connect diagnostic system.
			AD00.00-S-2000-04E
7	Commission rear 360° camera (B84/4) or reversing camera (RFK) control unit (B84/5) using diagnostic system.	If rear 360° camera (B84/4) or reversing camera (RFK) control unit (B84/5) has been replaced.
8.1	Calibrate rear 360° camera (B84/4) using diagnostic system.	Model 447, 448.8 with code JB6 (Parking Package with 360° camera), Model 447, 448.8 with code JB7 (Parking Package with reversing camera), Model 447, 448.8 with code JS1 (360° camera (360° CAMERA, SURROUND VIEW)), Model 447 with code EZ5 (Active Parking Assist with reversing camera) or with code EZ6 (Parking Package with 360° camera)
8.2	Calibrate reversing camera (RFK) control unit (B84/5) using diagnostic system and calibration device.	Model 447, 448.8 with code FR8 (Reversing camera) with code XM0 (Facelift)	AR54.65-S-0030-01EA
		Calibration device	Fig 1
9	Disconnect diagnostic system.
