Retrofit Parameterizable Special Module (PSM) - AN54.21-S-0002ERA
Model 447.### 2# up to 5/31/19
With Code JD1 (Digital tachograph)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Model 447.### 2#
With Code EK1 (Terminal strip for electrical connection)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Except Code XM0 (Facelift)
Model 447.### 2#
With Code FG6 (Center console with cooling compartment)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Except Code XM0 (Facelift)
Model 447.### 2#
With Code H05 (Climatised rear seats)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Except Code XM0 (Facelift)
Model 447.### 2#
With Code H07 (Climatised rear seats, 2nd row)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Except Code XM0 (Facelift)
Model 447.### 2#
With Code JV6 (Tachograph pre-installation kit)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Except Code XM0 (Facelift)
Model 447.### 2#
With Code T55 (Electric operation of sliding door on right)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Except Code XM0 (Facelift)
Model 447.### 2#
With Code T56 (Electric operation of sliding door on left)
Except Code E28 (Additional battery for retrofitted consumers)
Except Code HZ1 (Auxiliary heater (warm air))
Except Code ME0 (Electric motor 85 kW)
Except Code ME4 (Electric motor 145 kW)
Except Code XM0 (Facelift)

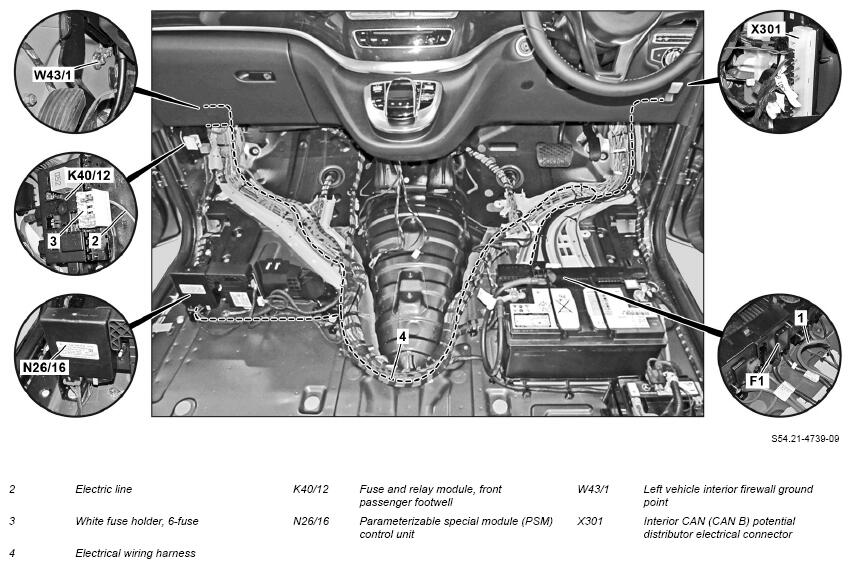

Shown on model 447.8## 2#
| Notice | Information on preventing damage to electronic 12 components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove | |||
| 1 | Remove front floor covering | ||
| AR68.30-S-0003E | |||
| Install | |||
| 2 | Remove white fuse holder, 6-fuse (3) from fuse and relay module in front passenger footwell (K40/12) | ||
| 3 | Remove electrical line (2) from slot 5 of white fuse holder, 6-fuse (3) of fuse and relay module in front passenger footwell (K40/12) | ||
| 4 | Insert electrical line (2) into slot 5 of white fuse holder, 6-fuse (3) of electrical wiring harness (4) | ||
| 5 | Mount white fuse holder, 6-fuse (3) of electrical wiring harness (4) to fuse and relay module in front passenger footwell (K40/12) | ||
| 6 | Install parameterizable special module (PSM) control unit (N26/16) into holder of left seat console | ||
| 7 | Route electrical wiring harness (4) from fuse and relay module in front passenger footwell (K40/12) along vehicle wiring harness to the parameterizable special module (PSM) control unit (N26/16) | Otherwise, the electrical system may be damaged. |
|
| 8 | Mount brown line of electrical wiring harness (4) to ground point for firewall in left of vehicle interior (W43/1) | Otherwise, the electrical system may be damaged. |
|
| *BA00.10-Z-1002-01KOA | |||
| 9 | Connect gray 15-pin electrical connection of electrical wiring harness (4) to parameterizable special module (PSM) control unit (N26/16) | ||
| 10 | Connect black 32-pin electrical connection of electrical wiring harness (4) to parameterizable special module (PSM) control unit (N26/16) | ||
| 11 | Route electrical wiring harness (4) from parameterizable special module (PSM) control unit (N26/16) to electrical connection for potential distributor on interior CAN (CAN B) (X301) and along the vehicle wiring harness | Otherwise, the electrical system may be damaged. |
|
| 12 | Insert black 2-pin electrical connection of electrical wiring harness (4) into slot 11 of potential distributor on interior CAN (CAN B) (X301) | ||
| 13 | Install in the reverse sequence | ||
| 14 | Enter special equipment via Vehicle Documentation (VeDoc) | ||
| 15 | Connect diagnostic system and read out fault memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-S-2000-04E | ||
| 16 | Commission parameterizable special module (PSM) control unit (N26/16) | ||
| Programming of control units | AR54.21-S-0014E | ||
| 17 | Perform SCN coding on signal acquisition and actuation module (SAM) control unit (N10/1) | ||
| SCN coding of control units | AR54.21-S-0015E | ||
| 18 | Perform SCN coding on electronic ignition lock control unit (EIS) (N73) | ||
| SCN coding of control units | AR54.21-S-0015E | ||
| 19 | Perform SCN coding on panoramic sliding sunroof (PSD) control unit (N98) | ||
| SCN coding of control units | Model 447.7##/8## 2# with code D34 (Panoramic sliding sunroof) |
AR54.21-S-0015E | |
| 20 | Detach diagnostic system |
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
| Part no. | Designation | Quantity |
|---|---|---|
| KG99 | Retrofit kit for parameterizable special module (PSM) control unit, model 447.### 2# | 1 |
