Check Air Suspension For Leaks - AR32.22-P-8000ME

Model 167

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

except code 490 (Electrohydraulic suspension)

Model 167

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

with code 490 (Electrohydraulic suspension)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 167.119

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  when using a forming gas with incorrect mixing ratio. Risk of suffocation due to inhalation of forming gas. Risk of injury  due to bursting of high-pressure hoses.	Wear safety glasses and protective gloves. No smoking or open flames. Work in well-ventilated rooms only.	AS83.00-Z-0001-02A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on air suspension		AH32.22-P-1000-01T
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install

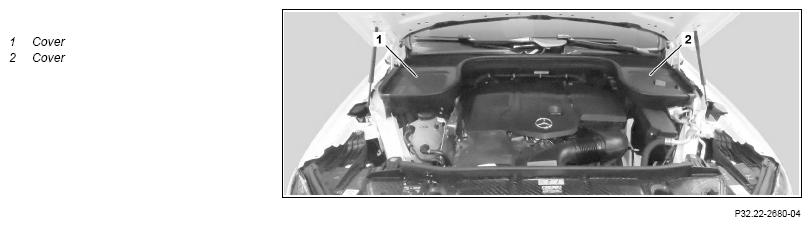

1	Remove covers (1, 2).

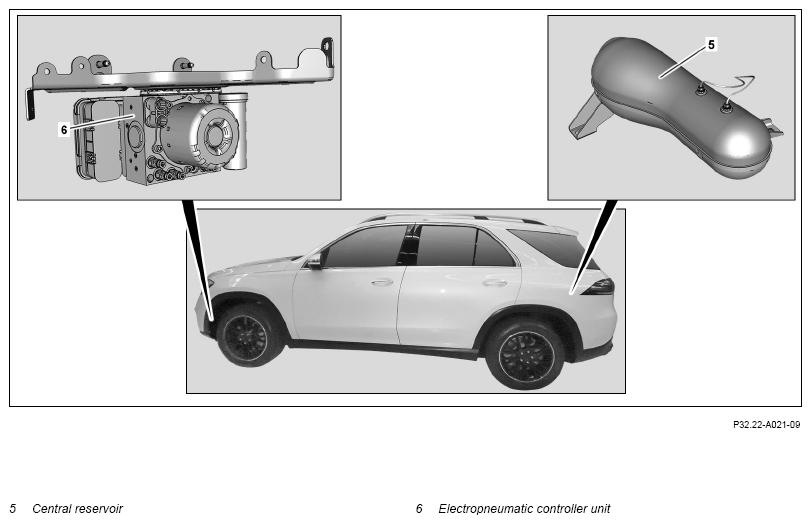

2	Expose the pneumatic pressure line connections at central reservoir (5).	Model 167.1 (except 167.117/154) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167.1 (except 167.117/154) with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension) Model 167.3 (except 167.317/354) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167.3 (except 167.317/354) with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.22-P-2028ME
		Model 167.117/154/317/354 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167.117/154/317/354 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.22-P-2028MEH
3	Detach front section of fender liner in left front fender in area of bumper.		AR88.10-P-1301ME
	Check
4	Build up the pneumatic pressure of the air suspension externally using the diagnostic system.	If the pneumatic system is unpressurized.	AR32.22-P-0013ME
5	Spray the pneumatic pressure line connections on electropneumatic controller unit (6) with leak detection spray.	Leak detection spray	*BR00.45-Z-1002-03A
		Snoop Leak detection fluid	*BR00.45-Z-1003-03A
		Leakage detection spray for USA	*BR00.45-Z-1004-03A
		Leak location spray LUBRION article no. 626.04	*BR00.45-Z-1005-03A
		Leak detection spray for China	*BR00.45-Z-1006-03A

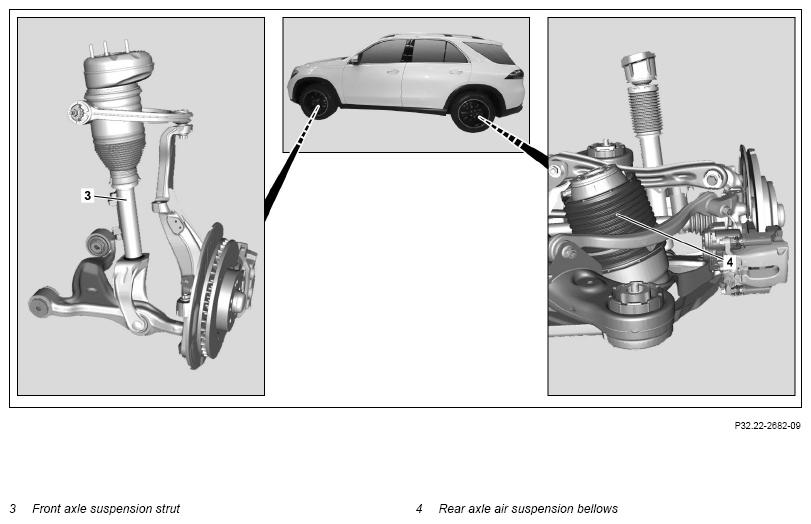

6	Spray the pneumatic pressure line connections on left and right front axle suspension strut (3) with leak detection spray.	Leak detection spray	*BR00.45-Z-1002-03A
		Snoop Leak detection fluid	*BR00.45-Z-1003-03A
		Leakage detection spray for USA	*BR00.45-Z-1004-03A
		Leak location spray LUBRION article no. 626.04	*BR00.45-Z-1005-03A
		Leak detection spray for China	*BR00.45-Z-1006-03A
7	Spray the pneumatic pressure line connections on left and right rear axle air suspension bellows (4) with leak detection spray.	Leak detection spray	*BR00.45-Z-1002-03A
		Snoop Leak detection fluid	*BR00.45-Z-1003-03A
		Leakage detection spray for USA	*BR00.45-Z-1004-03A
		Leak location spray LUBRION article no. 626.04	*BR00.45-Z-1005-03A
		Leak detection spray for China	*BR00.45-Z-1006-03A
8	Spray the pneumatic pressure line connections on central reservoir (5) with leak detection spray.	The central reservoir (5) is located on the underbody behind the rear axle.
		Leak detection spray	*BR00.45-Z-1002-03A
		Snoop Leak detection fluid	*BR00.45-Z-1003-03A
		Leakage detection spray for USA	*BR00.45-Z-1004-03A
		Leak location spray LUBRION article no. 626.04	*BR00.45-Z-1005-03A
		Leak detection spray for China	*BR00.45-Z-1006-03A
9	Spray area of dust boots at top and bottom on right and left front axle suspension strut (3) with leak detection spray.	Leak detection spray	*BR00.45-Z-1002-03A
		Snoop Leak detection fluid	*BR00.45-Z-1003-03A
		Leakage detection spray for USA	*BR00.45-Z-1004-03A
		Leak location spray LUBRION article no. 626.04	*BR00.45-Z-1005-03A
		Leak detection spray for China	*BR00.45-Z-1006-03A
10	Spray the area around the top and bottom dust boots on right and left rear axle air suspension bellows (4) with leak detection spray.	Leak detection spray	*BR00.45-Z-1002-03A
		Snoop Leak detection fluid	*BR00.45-Z-1003-03A
		Leakage detection spray for USA	*BR00.45-Z-1004-03A
		Leak location spray LUBRION article no. 626.04	*BR00.45-Z-1005-03A
		Leak detection spray for China	*BR00.45-Z-1006-03A
11	Check sprayed areas for leak tightness.	Wait approx. 10 to 15 min after spraying. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately. If there is a problem, ↓ replace or repair component parts concerned.
		Remove/install front axle suspension strut (3) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)	AR32.25-P-1017ME
		Remove/install central reservoir (5) Model 167.1 (except 167.117/154) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167.1 (except 167.117/154) with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension) Model 167.3 (except 167.317/354) with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167.3 (except 167.317/354) with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.22-P-2028ME
		Remove/install central reservoir (5) Model 167.117/154/317/354 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167.117/154/317/354 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.22-P-2028MEH
		Remove/install central reservoir (5) Model 167.9 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167.9 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.22-P-2028MEX
		Remove/install electropneumatic controller unit (6) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.20-P-0010ME
		Remove/install rear axle air suspension bellows (4) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.22-P-2003ME
		Repair air suspension pressure line connection Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.22-P-2001-01ME
		Pressure line of air suspension to central reservoir	*BA32.22-P-1009-03B
		Air suspension pressure line at suspension strut at front	*BA32.22-P-1005-03B
		Pressure line, air suspension to compressor	*BA32.22-P-1003-03B
		Air suspension pressure line to rear air suspension bellows	*BA32.22-P-1001-03B
		Socket wrench bit	Fig 1
		Box wrench bit	Fig 4
		Box wrench bit	Fig 3
		Knife	Fig 2
12	Install in the reverse order.
