Overview Of Exterior Lights System Components - GF82.10-P-9998FR
Model 257, 290
up to model year 2021
Shown on model 257

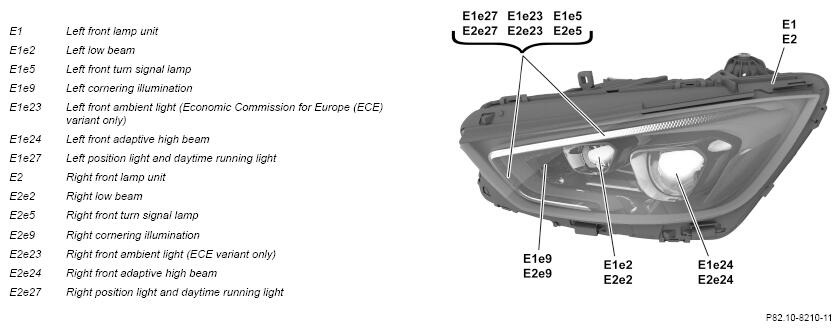

Static LED headlamp (except code P35 (Light Package)), shown on model 257 except code 460 (Canada version) and except code 494 (USA version)
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1) (except CODE 460 (Canada version) and except CODE 494 (USA version))
- Fan motor 1 for left front lamp unit (E1 m4)
- Left headlamp control unit (E1n9)
- Right headlamp range adjustment actuator motor (E2m1) (except CODE 460 (Canada version) and except CODE 494 (USA version))
- Fan motor 1 for right front lamp unit (E2m4)
- Right headlamp control unit (E2n9)
Model 257
up to model year 2021
with code 460 (Canada version)
Model 257
up to model year 2021
with code 494 (US version)
The left front side marker lamp (E1e6) and the right front side marker lamp (E2e6) are also present.

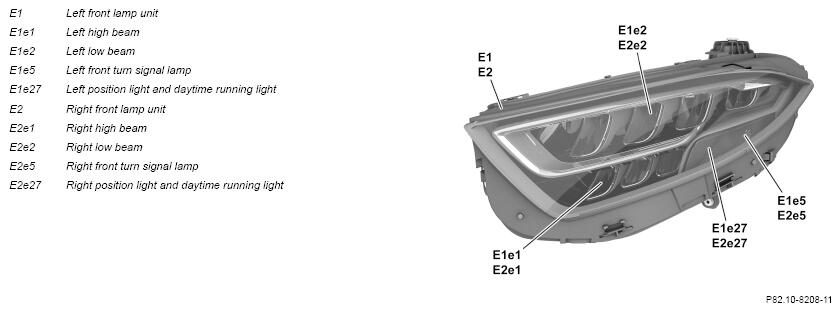

Dynamic LED headlamp (with code P35 (Light Package)), model 257 (not shown because of missing information)
- Left front lamp unit
- Left low beam
- Left front turn signal lamp
- Left front side marker light (with CODE 460 (Canada version) or CODE 494 (USA version))
- Left cornering light (E1e9)
- Front left ambient light (E1e23) (Economic Commission for Europe (ECE) variant only)
- Front left adaptive high beam (E1e24)
- Left position light and daytime running light
- Left additional high beam (E1e32)
- Left headlamp range adjustment actuator motor
- Left front lamp unit fan motor 1
- Fan motor 2 for left front lamp unit (E1 m5)
- Left headlamp control unit
- Left front LED matrix lamp unit control unit (E1n11)
- Right front lamp unit
- Right low beam
- Right front turn signal lamp
- Right front side marker light (with CODE 460 (Canada version) or CODE 494 (USA version))
- Right cornering light (E2e9)
- Front right ambient light (E2e23) (Economic Commission for Europe (ECE) variant only)
- Front right adaptive high beam (E2e24)
- Right position light and daytime running light
- Right additional high beam (E2e32)
- Right headlamp range adjustment actuator motor
- Right front lamp unit fan motor 1
- Fan motor 2 for right front lamp unit (E2m5)
- Right headlamp control unit
- Right front LED matrix lamp unit control unit (E2n11)
Dynamic LED headlamp (with code P35 (Light Package)), shown on model 290 except code 460 (Canada version) and except code 494 (USA version)
The following components are not shown:
- Left headlamp range adjustment actuator motor
- Left front lamp unit fan motor 1
- Fan motor 2 for left front lamp unit (E1m5)
- Left headlamp control unit
- Left front LED matrix lamp unit control unit (E1n11)
- Right headlamp range adjustment actuator motor
- Right front lamp unit fan motor 1
- Fan motor 2 for right front lamp unit (E2m5)
- Right headlamp control unit
- Right front LED matrix lamp unit control unit (E2n11)
Model 290
up to model year 2021
with code 460 (Canada version)
Model 290
up to model year 2021
with code 494 (US version)
The left front side marker lamp and the right front side marker lamp are also present.

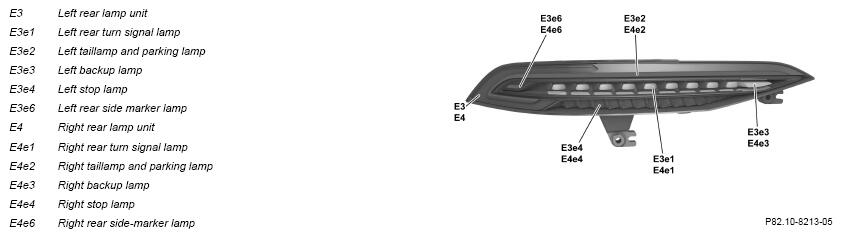

Rear lamp, model 257 except code 460 (Canada version) and except code 494 (USA version)

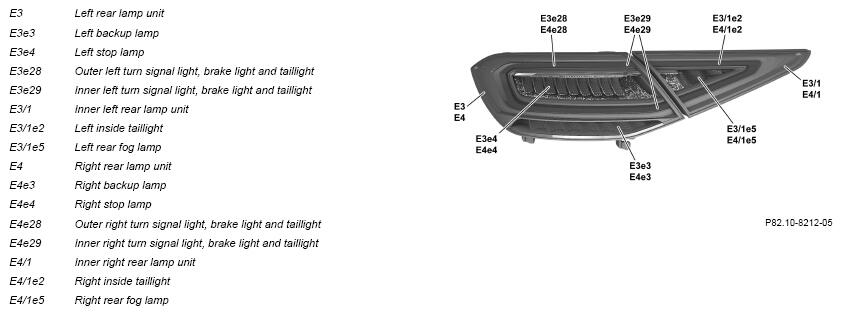

Rear lamp, model 257 with code 460 (Canada version) and code 494 (USA version)

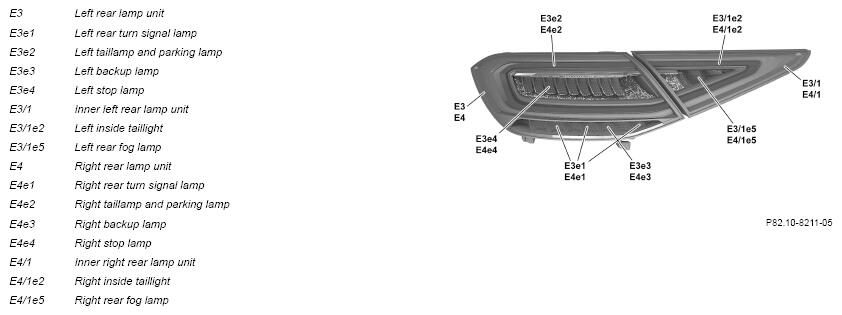

Rear lamp, model 290 except code 460 (Canada version) and except code 494 (USA version)

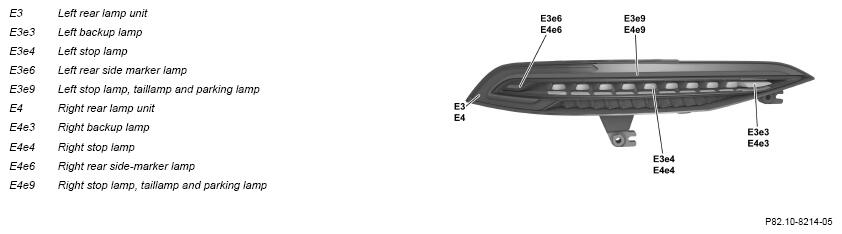

Rear lamp, model 290 with code 460 (Canada version) and code 494 (USA version)

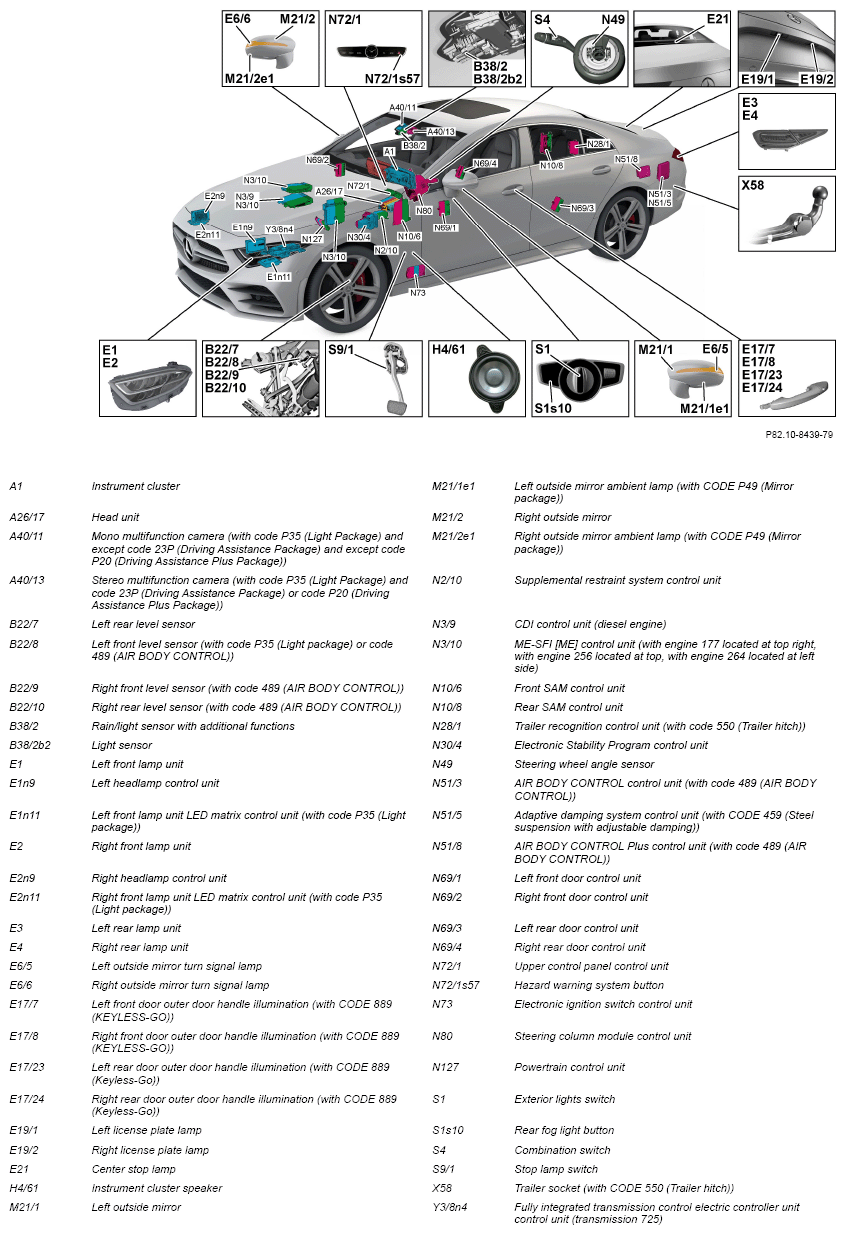

| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257, 290 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) |
GF82.85-P-3140FRA | |
| A26/17 | |||
| Model 257, 290 up to model year 2021 with code 531 (COMAND APS) |
GF82.85-P-3140FRB | ||
| A26/17 | |||
| Component description for multifunction camera | Model 257, 290 up to model year 2021 with code P35 (Light Package) |
GF54.21-P-3300FR | |
| A40/11, A40/13 | |||
| Rain/light sensor with additional functions, component description | B38/2, B38/b2 | GF54.21-P-6005FR | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020FR | |
| Front LED matrix lamp unit control unit, component description | Model 257, 290 up to model year 2021 with code P35 (Light Package) |
GF82.10-P-2025FR | |
| E1n11, E2n11 | |||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 | GF07.16-P-6000ORD | |
| N3/9 | |||
| Model 257 with engine 656.9 up to model year 2021 | GF07.16-P-6000OIA | ||
| N3/9 | |||
| Component description for ME-SFI (ME) control unit | Model 290 with engine 177.9 up to model year 2021 | GF07.61-P-6000MNL | |
| N3/10 | |||
| Model 257 with engine 264.9 up to model year 2021 | GF07.61-P-6000MRG | ||
| N3/10 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 | GF07.61-P-6000MRT | ||
| N3/10 | |||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FR | |
| Component description for trailer recognition control unit | Model 257, 290 up to model year 2021 with code 550 (Trailer coupling) |
GF31.19-P-4050FR | |
| N28/1 | |||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| AIR BODY CONTROL control unit, component description | Model 257 up to model year 2021 with code 489 (AIR BODY CONTROL) |
GF32.22-P-5111FR | |
| N51/3, N51/8 | |||
| Component description for adaptive damping system control unit | Model 257, 290 up to model year 2021 with code 459 (Steel suspension with adjustable damping) |
GF32.32-P-1010FR | |
| N51/5 | |||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Drivetrain control unit, component description | Model 257 with engine 654.9 up to model year 2021 |
GF54.21-P-2141ORD | |
| N127 | |||
| Model 257 with engine 656.9 up to model year 2021 |
GF54.21-P-2141OIA | ||
| N127 | |||
| Model 257, 290 with engine 256.9 up to model year 2021 Model 290 with engine 177.9 up to model year 2021 |
GF54.21-P-2141LF | ||
| N127 | |||
| Model 257 with engine 264.9 up to model year 2021 |
GF54.21-P-2141MRP | ||
| N127 | |||
| Fully integrated transmission control electric controller unit control unit, component description | Model 257 with transmission 725.0 up to model year 2021 |
GF27.60-P-5120ANR | |
| Y3/8n4 | |||
| Model 290 with transmission 725.096 up to model year 2021 |
GF27.60-P-5120ANS | ||
| Y3/8n4 | |||
| Table of contents for function description of exterior lights | GF82.10-P-0999FR |
