Remove/Install Left Catalytic Converter - AR49.20-P-0101MNI

Engine 177 in model 290

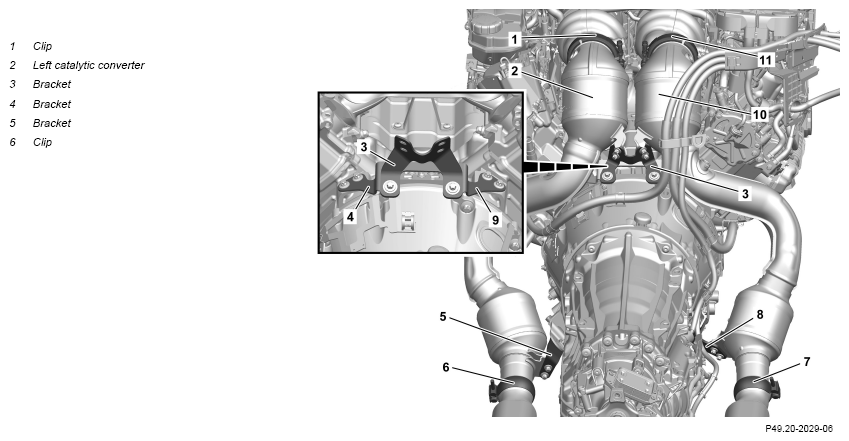

Shown on engine 177 without code 961 (Exhaust system with GPF Generation 2.0)

Courtesy of MERCEDES-BENZ USA

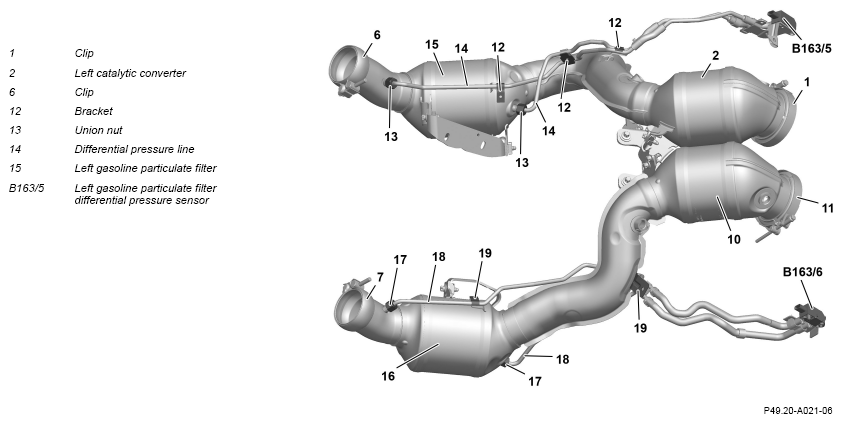

Shown on engine 177 with code 598 (Gasoline particulate filter (GPF) with sensor system) and without code 961 (Exhaust system with GPF Generation 2.0)

Courtesy of MERCEDES-BENZ USA

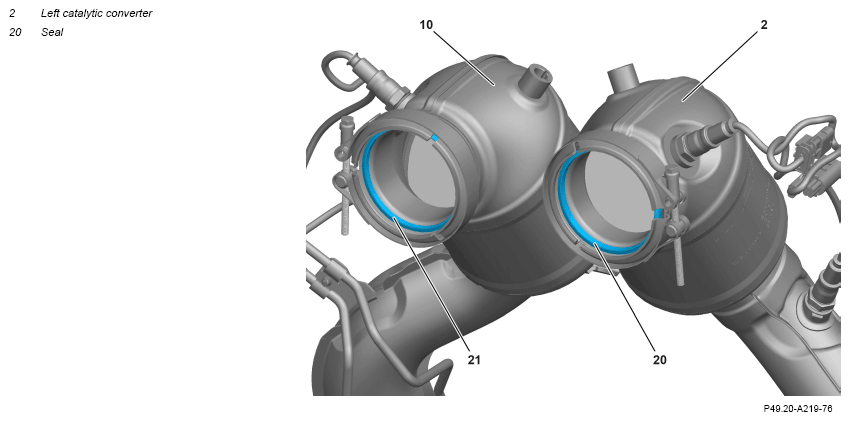

Shown on engine 177.8

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Remove heat shield.	: Do not install upper Engine cover until after the leak test.	AR09.40-P-6044MNI
2.1	Remove clamp (1) of left catalytic converter (2).	Engine 177.9 in model 290 : Observe alignment of clamp (1). Leaks can occur otherwise. : If a one-piece clamp (1) is installed, install a two-piece clamp (1). Replace screws and nuts in case of two-piece clamp (1).	AR09.40-P-6018-01MNE
		Clamp, front exhaust system to turbocharger	*BA49.10-P-1001-02E
		Pipe for inerting to Engine	*BA86.10-P-1002-03E
		Caulking bolt	Fig 2
2.2	Remove clamp (1) of left catalytic converter (2).	Engine 177.8 in model 290 : Replace seal (20). Clamp, front exhaust system to turbocharger	*BA49.10-P-1001-02E
3	Remove left catalytic converter (2) from bracket (3).	Bolt, butterfly bracket to catalytic converter	*BA49.10-P-1003-02E
4	Remove lower Engine compartment lining.	: Only install lower Engine compartment lining after leak test.	AR61.20-P-1105FRX
5	Remove bracket (5).	Bolt, bracket for catalytic converter to catalytic converter/bracket	*BA49.10-P-1011-02E
6	Remove clip (6).	: Exhaust system must be aligned so that it is free of tension before tightening bolted connections. Otherwise, leaks in exhaust system will occur. : Replace clamp (6). Clamp, front exhaust system to center exhaust system	*BA49.10-P-1005-02E
7	Secure left catalytic converter (2) against falling down.
8	Remove transmission.	Engine 177 in model 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.10-P-0505MNI
9	Remove left lambda sensor upstream of catalytic converter.		AR07.04-P-0081MNI
10	Remove left lambda sensor downstream of catalytic converter.		AR07.04-P-0082MNI
11	Remove bracket (4) with bracket (3).	Bolt, exhaust system bracket to front of crankcase	*BA49.10-P-1006-02E
12	Remove union nuts (13) from left gasoline particulate filter (15).	Engine 177 in model 290 with code 598 (Gasoline particulate filter (OPF) with sensor system) : Coat thread with heat-resistant lubricating paste. Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
		Union nut, pressure line to front exhaust system	*BA49.10-P-1019-02E
		Box wrench bit	Fig 3
13	Remove differential pressure lines (14) from brackets (12) and seal openings with suitable stop plugs.	Engine 177 in model 290 with code 598 (Gasoline particulate filter (OPF) with sensor system) Nut, pressure line holder to front exhaust system.	*BA49.10-P-1020-02E
		M5x0.8	*BA00.10-P-1001-04A
		Record plug	Fig 1
14	Remove exhaust gas temperature sensors and place to one side with lines connected.	Engine 177 in model 290 with code 961 (Exhaust system with OPF, generation 2.0)	AR49.20-P-1506LSE
15	Release left catalytic converter (2) and remove downward.
16	Remove combustion and corrosion residues on flange connections.
17	Check differential pressure lines (14) with hoses for damage.	Engine 177.8 in model 290 with code 961 (Exhaust system with OPF, generation 2.0) Engine 177.9 in model 290 with code 598 (Gasoline particulate filter (OPF) with sensor system) If damage is present: ↓ Remove differential pressure lines (14) with hoses at left gasoline particulate filter differential pressure sensor (B163/5) and replace.	AR07.04-P-0025MNI
18	Install in the reverse order.
19	Check installation position and clearance of left catalytic converter (2).	If problems occur: ↓ Realign left catalytic converter (2).
	Risk of accident  from vehicle starting off by itself when Engine running. Risk of injury  (bruises and burns) resulting from working on the Engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
20	Perform Engine test run to check exhaust system for leaks.
21	Install lower Engine compartment lining.		AR61.20-P-1105FRX
22	Install upper Engine cover.
			AP01.10-P-2405-01E

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Caulking Bolt (103 589 01 39 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Box Wrench Bit (000 589 70 03 00)

Courtesy of MERCEDES-BENZ USA
