Remove/Install Heat Shield Of Turbocharger - AR09.40-P-6044MNI
Engine 177 in model 290

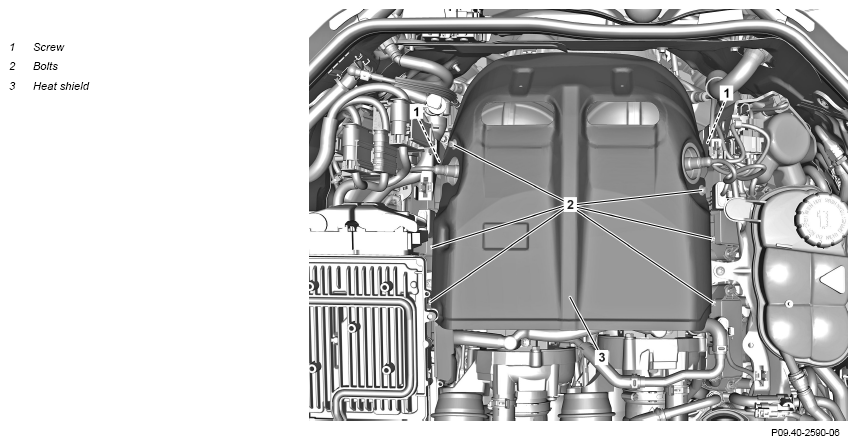

Shown on engine 177 in model 290 except code ME10 (Hybrid vehicle)

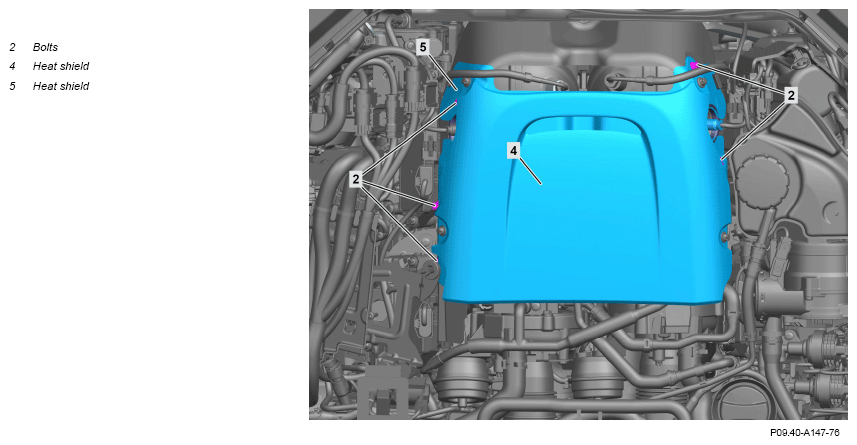

Shown on engine 177 in model 290 with code ME10 (Hybrid vehicle)

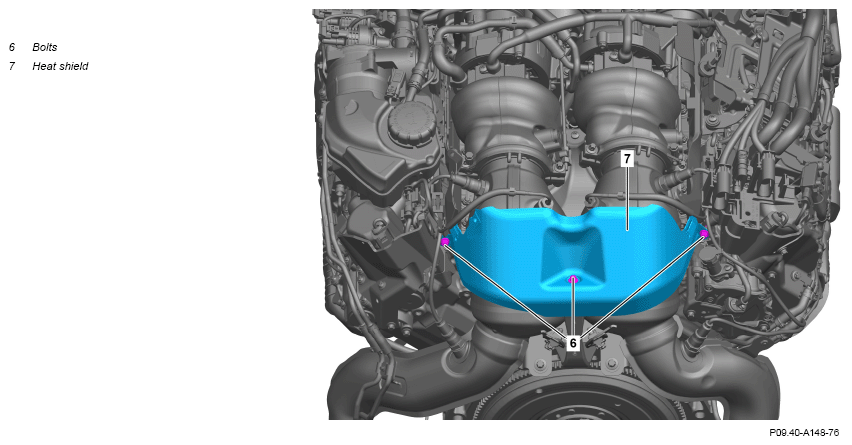

Shown on engine 177 in model 290 with code ME10 (Hybrid vehicle)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove ME-SFI control unit (N3/10) with connected coolant lines and place to one side. | AR07.08-P-7013MNI | |
| 2 | Remove screws (2). | *BA09.40-P-1006-01ZA | |
| 3 | Remove screws (1). | Engine 177 in model 290 except code ME10 (Hybrid vehicle) |
|
| *BA09.40-P-1008-01ZA | |||
| 4.1 | Remove heat shield (3). | Engine 177 in model 290 except code ME10 (Hybrid vehicle) |
|
| 4.2 | Remove heat shields (4, 5) together. | Engine 177 in model 290 with code ME10 (Hybrid vehicle) |
|
| 5 | Remove screws (6). | Engine 177 in model 290 with code ME10 (Hybrid vehicle) |
|
| 6 | Remove heat shield (7). | Engine 177 in model 290 with code ME10 (Hybrid vehicle) |
|
| 7 | Disconnect heat shields (4, 5) from each other. | Engine 177 in model 290 with code ME10 (Hybrid vehicle) When replacing one of the two heat shields (4, 5). |
|
| *BA09.40-P-1006-01ZA | |||
| 8 | Install in the reverse order. |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1008-01ZA | Bolt, rear heat shield to bracket | Nm | 9 |
