Overview Of System Components Of AMG Drive Unit - GF54.21-P-9993FR
Model 290
up to model year 2021

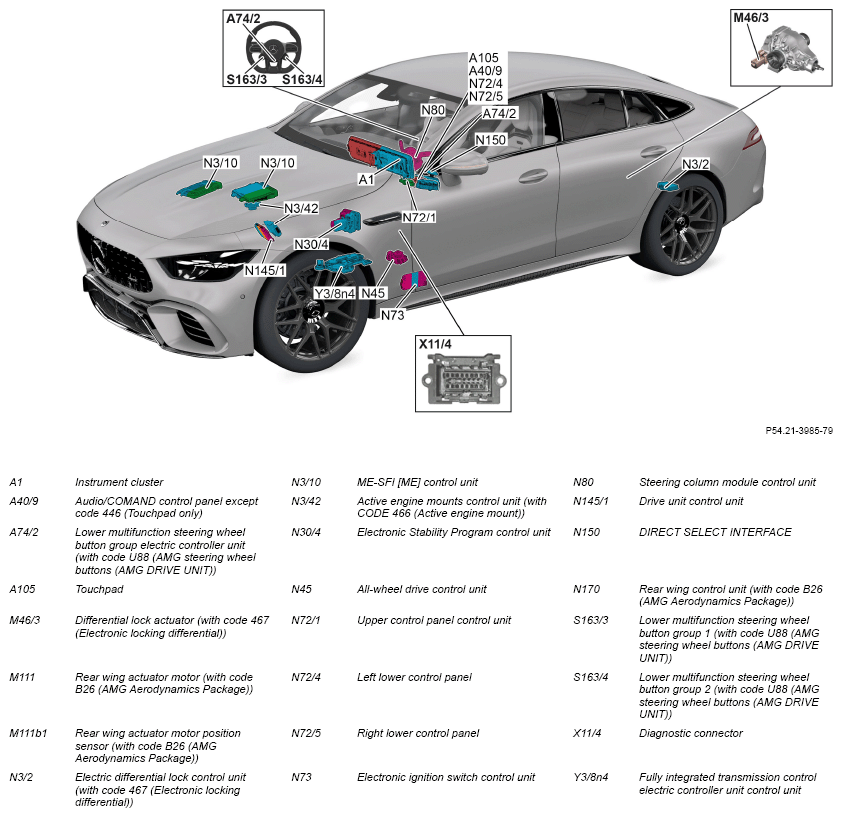

Vehicle view

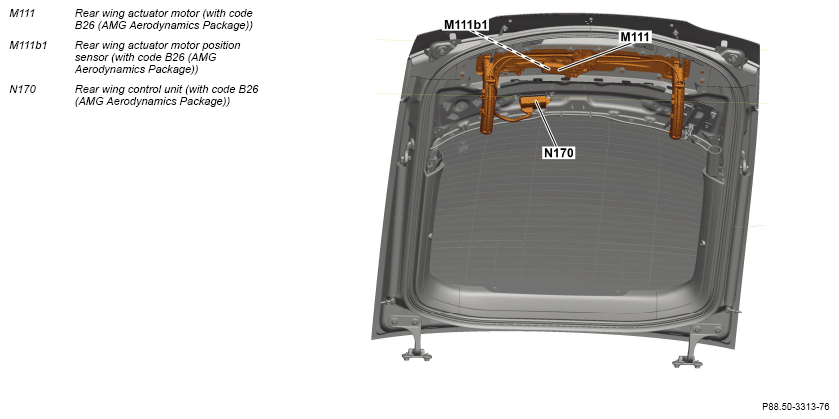

View of component parts of active rear wing
Example view (Engine 177.9 in model 213 from rear)
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Component description for Audio/COMAND control panel | Model 290 up to model year 2021 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FR | |
| Lower multifunction steering wheel button group electric controller unit, component description | Model 290 up to model year 2021 with code U88 (AMG steering wheel buttons |
GF82.90-P-4007FR | |
| (AMG DRIVE UNIT)) A74/2 |
|||
| Touchpad, component description | Model 290 up to model year 2021 with code 446 (Touchpad only) A105 |
GF54.21-P-4511FR | |
| Electric differential lock control unit, component description | Model 290 up to model year 2021 with code 467 (Electronic locking differential) N3/2 |
GF35.40-P-2000FR | |
| Component description for ME-SFI (ME) control unit | Model 290 with engine 256.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRT | |
| Model 290 with engine 177.9 up to model year 2021 N3/10 |
GF07.61-P-6000MNL | ||
| Active engine mount control unit, component description | Model 290 with engine 177.9 up to model year 2021 with code 466 (Active engine mount) N3/42 |
GF22.10-P-2001MNA | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| All-wheel drive control unit, component description | N45 | GF28.19-P-3211AVO | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FR | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| Drive unit control unit component description | Model 290 with transmission 725.0 up to model year 2021 N145/1 |
GF27.60-P-5168FR | |
| DIRECT SELECT interface, component description | Transmission 725.0 in model 290 up to model year 2021 N150 |
GF27.19-P-1300ANS | |
| Rear wing control unit, component description | Model 290 up to model year 2021 except code U94 (Rear spoiler, static) except code U99 (Rear spoiler, static, carbon) N170 |
GF88.50-P-5001FR | |
| Fully integrated transmission control electric controller unit control unit, component description | Model 290 with transmission 725.0 (except 725.096) up to model year 2021 Y38n4 |
GF27.60-P-5120ANR | |
| Model 290 with transmission 725.096 up to model year 2021 Y38n4 |
GF27.60-P-5120ANS | ||
| Table of contents for function description of AMG DRIVE UNIT | Model 290 up to model year 2021 |
GF54.21-P-0993FR |
