Electric Differential Lock Control Unit, Component Description - GF35.40-P-2000FR
Model 290
up to model year 2021
with code 467 (Electronic locking differential)

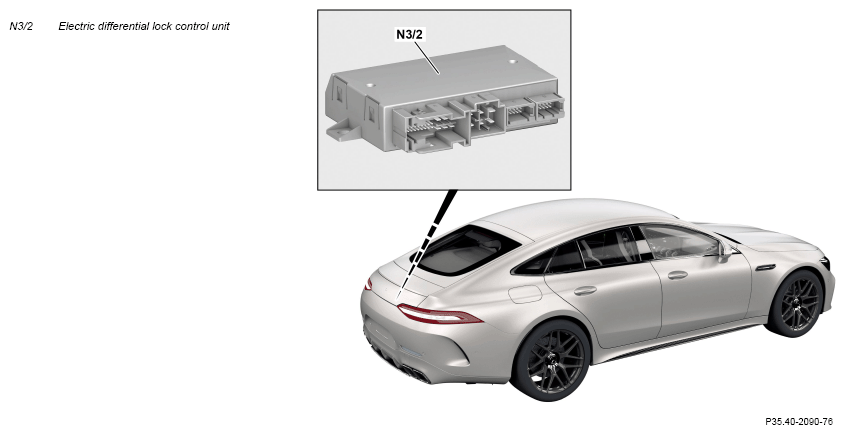

View of vehicle from right rear
Location
The electric differential lock control unit is installed in the spare wheel well in foam.
Task
The electric differential lock control unit operates the multidisk clutch of the differential lock through the electric differential lock actuator (M46/3).
Coding
The electric differential lock control unit can be coded and programmed, i.e. the entire control unit software can be updated.
CAN network
The electric differential lock control unit is connected through the AMG CAN (CAN AMG) to the vehicle's CAN network and exchanges data with other control units.
Input and output signals
The following input signals are evaluated by the electric differential lock control unit and the corresponding output signals issued:
- Direct input/output signals
- CAN input/output signals
Direct input/output signals
Input and output parameters for the following components are read in or output via direct lines by the electric differential lock control unit:
| Input factors over a direct line | Initial parameters over a direct line | Supplemental information |
|---|---|---|
| Circuit 30 | - | - |
| Circuit 31 | - | - |
| Circuit 15 | - | - |
| - | Differential lock actuator (M46/3) | - |
| Differential lock actuator Hall sensor (M46/3l1) | - | - |
| Differential lock actuator temperature sensor (M46/3b1) | - | - |
CAN input/output signals
Input and output parameters for the following control units are sent or received by the electric differential lock control unit via the CAN:
| Input factors over the AMG CAN (CAN AMG) | Output factors over the AMG CAN (CAN AMG) | Supplemental information |
|---|---|---|
| Supplemental Restraint System control unit (N2/10) | - | Over the vehicle dynamics CAN (CAN H), Electronic Stability Program control unit (N30/4), suspension FlexRay (Flex E) and the Drive Unit control unit (N145/1) |
| Electronic Stability Program control unit (N30/4) | Electronic Stability Program control unit (N30/4) | Over the suspension FlexRay (Flex E) and Drive Unit control unit (N145/1) |
| Electronic ignition lock control unit (N73) | - | Over the user interface CAN (CAN HMI) and Drive Unit control unit (N145/1) |
| ME-SFI [ME] control unit (N3/10) | - | Over the drive CAN (CAN C1) and Drive Unit control unit (N145/1) |
| Control unit for electric controller unit of fully integrated transmission control (Y3/8n4) | - | Over the drive CAN (CAN C1) and Drive Unit control unit (N145/1) |
| Diagnostic connector (X11/4) | Diagnostic connector (X11/4) | Over the diagnostics CAN (CAN D), electronic ignition lock control unit (N73), user interface CAN (CAN HMI) and the Drive Unit control unit (N145/1) |
| - | Instrument cluster (A1) | Over the user interface CAN (CAN HMI) and Drive Unit control unit (N145/1) |
| Technical data Designation | Unit | Value | Tolerance range | Comment |
|---|---|---|---|---|
| Electric differential lock control unit (N3/2) | ||||
| Voltage supply | V | 14 | - | - |
| Voltage limits | V | < 9 | - | Lower limit value |
| V | > 16 | - | Upper limit value | |
| Power consumption | mA | 3 | - | Standby |
| mA | 40 | - | Action | |
| mA | 0, 15 | - | No-load current | |
| Reverse polarity protection | - | - | - | Yes |
| Additional specific parameters | - | - | - | No |
| Special features | - | - | - | No |
| Flash capability/coding capability | - | - | - | Yes/yes |
