Remove/Install Glove Compartment - AR68.10-P-1402FR

Model 257, 290

Courtesy of MERCEDES-BENZ USA

Shown on model 257 except code P21 (air quality package)

Shown on model 257 with code P21 (air quality package) and with code 887 (separate trunk locking)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove trim piece from front passenger side instrument panel and place to one side.		AR68.10-P-1187FR
		Do not disconnect electrical connectors.
2	Remove trim under front passenger side instrument panel.		AR68.10-P-1502FR
3	Remove Dedicated Short-Range Communications (DSRC) control unit.	Model 257 with code 498 (Japanese version) Model 290 with code 498 (Japanese version) Model 290 with code 830 (China version)
		Model 290 as of model year 2023 with code 498 (Japanese version) with code 943 (Payment system for toll fees)	AR82.88-P-0005FRX
		Model 257 with code 498 (Japanese version) Model 290 as of model year 2020 up to model year 2023 with code 830 (China version) with code 943 (Payment system for toll fees) Model 290 up to model year 2023 with code 498 (Japanese version) with code 943 (Payment system for toll fees)	AR82.88-P-0005FR
4	Remove screws (5).
5	Remove screw/bolts (3).	One bolt (3) is located in the glove compartment (1) on right.
6	Pull out glove compartment (1) until the electrical connector (4) is accessible.	Push guides (6) of glove compartment (1) into instrument panel.
7	Detach air duct from glove compartment (1).
8	Disconnect electrical connector (4).

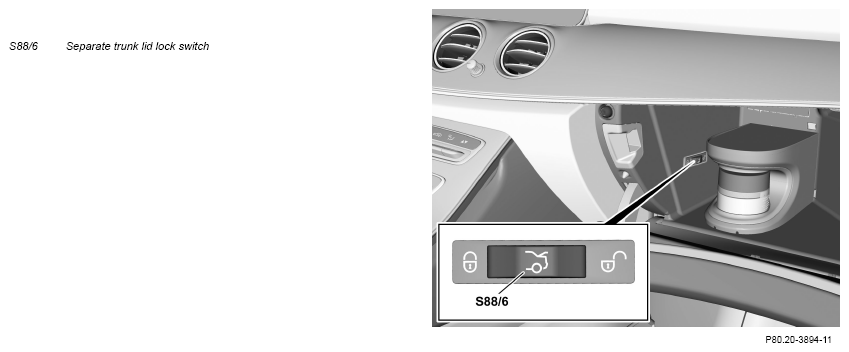

9	Disconnect electrical connector from separate trunk locking switch (S88/6).	Model 257 with code 887 (Separate boot lid lock)
10	Disconnect electrical connector and hose from fragrance system alternator.	Model 257, 290 with code P21 (Air quality package)	AR83.40-P-0201FR
11	Remove glove compartment (1).
12	Remove separate trunk locking switch (S88/6) from the glove compartment (1).	Model 257 with code 887 (Separate boot lid lock) If glove compartment (1) will be replaced.
13	Remove fragrance system alternator from the glove compartment (1).	Model 257, 290 with code P21 (Air quality package) If glove compartment (1) will be replaced.
			AR83.40-P-0201FR
14	Remove glove compartment lamps from the glove compartment (1).	If glove compartment (1) will be replaced.
15	Install in the reverse order.
