Remove/Install Bottom Paneling For Dashboard On Passenger Side - AR68.10-P-1502FR
Model 257, 290
Shown on model 257.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Adjust front passenger seat to the rear. | ||
| 2 | Remove front door sill. | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 4 | Remove screw/bolt (2). | ||

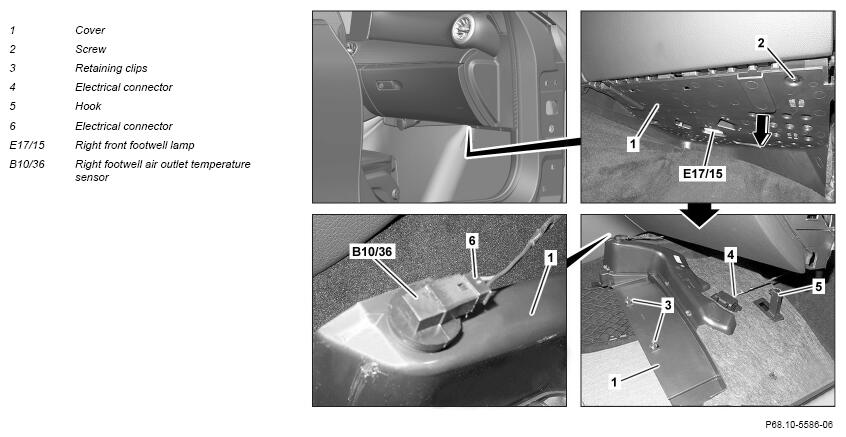

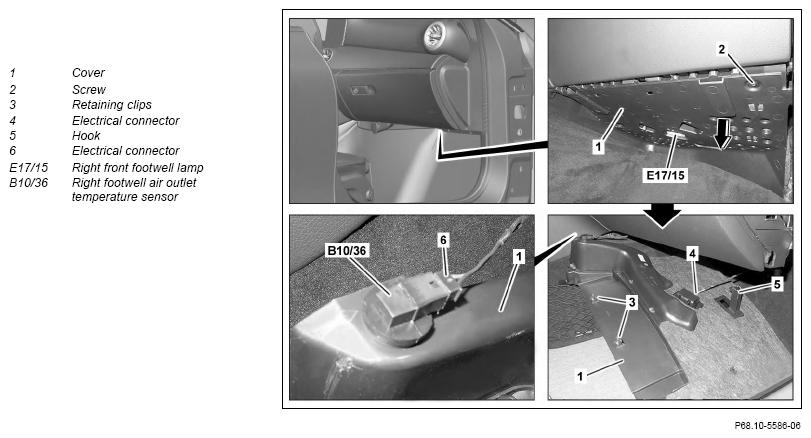

| 5 | Unclip trim (1) from retaining clamps (3). | Fig 1 | |
| 6 | Push trim (1) on bracket (5) to the outside, unhook, and lower (arrow) until electrical connectors (4, 6) are accessible. | ||
| 7 | Disconnect electrical connectors (4, 6). | ||
| 8 | Remove trim (1). | ||
| 9 | Remove right footwell vent air outlet temperature sensor (B10/36) or left footwell vent air outlet temperature sensor. | When replacing trim (1). | |
| 10 | Remove right front footwell lamp (E17/15) or left front footwell lamp. | When replacing trim (1). | |
| 11 | Install in the reverse order. |
