Remove/Install Fragrance System Generator - AR83.40-P-0201FR
Model 257, 290 with code P21 (Air quality package)
Fig 1: Fragrance System Generator Components Location - Model 290 With Code P21 (Shown On Model 257)
Shown on model 257
Shown on model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove trim under front passenger side instrument panel. | AR68.10-P-1502FR | |
| 2 | Remove electrical connector (1) from glove compartment (2) and expose electrical wiring harness (3). | ||
| 3 | Disconnect electrical connector (1). | ||
| 4 | Detach hose (4) from fragrance system alternator (N59). | ||
| 5 | Open flap on glove compartment (2). | ||
| 6 | Remove flacon (5). | ||

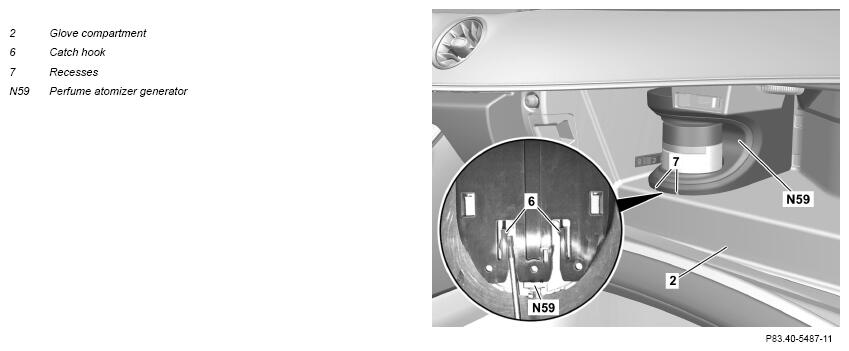

| 7 | Release catch hooks (6) through cutouts (7) using a suitable tool as shown. | ||
| 8 | Remove fragrance system alternator (N59). | ||
| 9 | Install in the reverse order. |
