Remove/Install Timing Case Cover - AR01.40-P-8000MSC

Engine 256.9 In Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove integrated starter alternator (A79).		AR15.40-P-0003MSC
2	Remove oil pan bottom section.		AR01.45-P-7555MSC
3	Remove cylinder head.		AR01.30-P-5800MSC

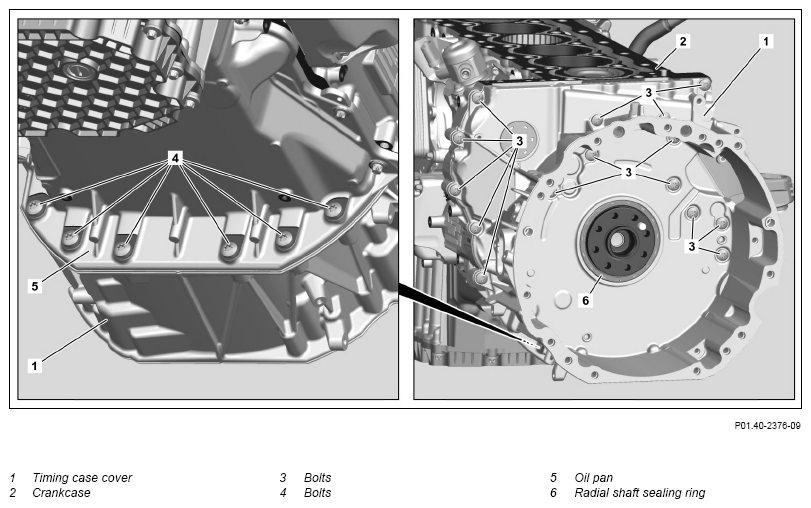

4	Remove screws (3, 4) contrary to the tightening procedure.	Bolt plan for timing case cover Pay attention to different lengths of screws.	AR01.40-P-8000-01MTR
5	Remove timing case cover (1).	During removal process, do not drive in any tool between timing case cover (1) and crankcase (2). Sealing surfaces will otherwise be damaged. Mounting wedge	Fig 1
6	Remove radial shaft sealing ring (6).		AR03.20-P-3003MSC
	Clean
7	Clean sealing surfaces on the timing case cover (1), crankcase (2), and oil pan (5).	Do not use any sharp-edged tools or abrasive paper. The sealing surfaces will otherwise be damaged. Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
8	Install timing case cover (1). Notes on sealant path for timing case cover	Observe notes on sealant path. Leaks can occur otherwise. Apply sealing compound to the timing case cover (1). The pilot bushings of the crankcase (2) must engage in the cutouts in the timing case cover (1).	AH01.40-P-1000-01MRT
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 2
9	Tighten screws (3, 4).	Bolt plan for timing case cover Pay attention to different lengths of screws. Observe tightening procedure.	AR01.40-P-8000-01MTR
		Screw/bolt, oil pan upper part to timing case	*BA01.45-P-1004-01MRT
		Bolt, timing case to crankcase	*BA01.40-P-1002-03MRT
10	Install radial shaft sealing ring (6).		AR03.20-P-3003MSC
11	Install cylinder head.		AR01.30-P-5800MSC
12	Install oil pan bottom section.		AR01.45-P-7555MSC
13	Install integrated starter alternator (A79).	: Only install upper engine cover and lower engine compartment paneling after the performing a leak test.	AR15.40-P-0003MSC
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Carry out engine test run and check engine for proper leaktightness and leaktightness.
15	Install lower engine compartment lining.		AR61.20-P-1105ME
16	Install upper engine cover.		AR01.10-P-2405MSC

CRANKCASE, TIMING CASE, END COVER

Number	Designation			Engine 256.9
BA01.40-P-1002-03MRT	Bolt, timing case to crankcase	Stage 1	Nm	8
		Stage 2	Nm	20

OIL PAN, OIL LEVEL SENSOR

Number	Designation			Engine 256.9
BA01.45-P-1004-01MRT	Screw/bolt, oil pan upper part to timing case	M8	Nm	20

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant, Loctite 5970, 50 ml	A 003 989 98 20 10
BR00.45-Z-1038-04A	Loctite 7200	A 010 989 90 71
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
