Remove/Install Bottom Part Of Engine Oil Pan - AR01.45-P-7555MSC
Engine 256.9 In Model 167
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain engine oil. | ||
| AP18.00-P-0101MRT | |||

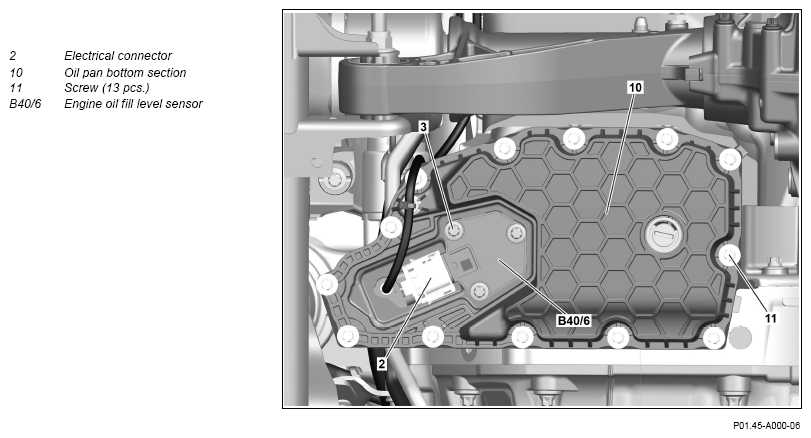

| 2 | Release and disconnect electrical connector (2). | ||
| 3 | Unclip electric line from oil pan bottom section (10) and place to one side. | ||
| 4 | Unscrew screws (11) of oil pan bottom section (10) in reverse order to tightening procedure and remove oil pan bottom section (10). | Bolt plan for oil pan lower section Observe tightening procedure. |
AR01.45-P-7555-01MRT |
| *BA01.45-P-1001-01MRT | |||
| 5 | Remove engine oil fill level sensor (B40/6). | When replacing oil pan bottom section (10). | AR18.40-P-5116MSC |
| Clean | |||
| 6 | Clean sealing surfaces of oil pan top section and oil pan bottom section (10). | Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A |
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| 7 | Install in the reverse order. |
OIL PAN, OIL LEVEL SENSOR
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BA01.45-P-1001-01MRT | Bolt, oil pan lower part to oil pan upper part | Stage 1 | Nm | 5 |
| Stage 2 | Nm | 10 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
