Spare Tire Well Replacement - Ar64.20-P-1245MFA

Model 177.0, 247.0/6/7

Modification notes

Shown on model 177.0

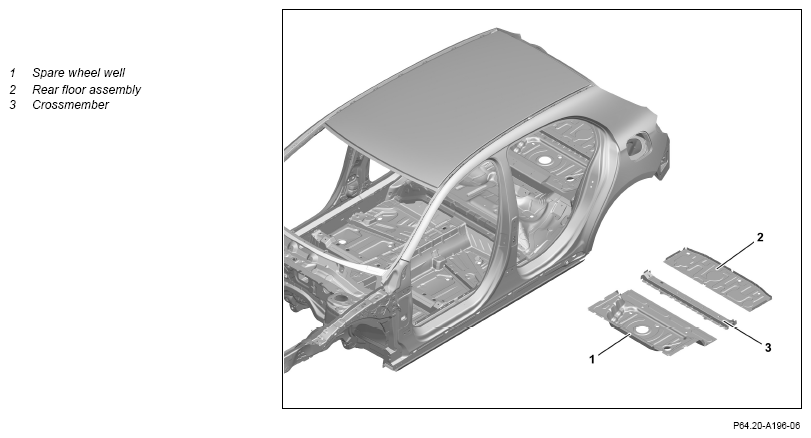

Fig 1: Spare Tire Well And Adjacent Component Locations (Model 247.0/6/7) (Shown On Model 177.0)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.
3	Remove spare wheel well (1), rear-end floor (2), and crossmember (3).		AR64.20-P-1245-01MFA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General information on riveting		AH60.00-P-0003-01N
4	Prepare rear-end floor (2).		AR64.20-P-1245-02MFA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
5	Install spare wheel well (1), rear-end floor (2), and crossmember (3).		AR64.20-P-1245-03MFA
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Blind rivet with countersunk head 6.4 14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1043-13A
		Blind rivet with countersunk head 6.4x17.0 (clamping range 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1055-13A
6	Clean sheet metal flanges.
7	Remove spark protection blankets.
8	Clean repair area.
9	Prime repair areas with a primer filler.
Notice	Notes on paintwork repairs	Use only primer filler approved by Daimler AG:	AH98.00-P-9408-02A
10	Seal seam after repair.		AR97.10-P-4000MFA
11	Paint repair areas and adjacent surfaces.
Notice	Notes on paintwork repairs	Use only paints approved by Daimler AG	AH98.00-P-9408-02A
12	Supplement cavity preservation.		AR97.20-P-1500MFA
13	Reinstall detachable parts in area of repair point.
