Spare Tire Well Preparation - Ar64.20-P-1245-02MFA
Model 177.0, 247.0/6/7
Modification notes
| 19.03.2019 | Document adjusted. 3-part spare wheel well incorporated. |
The following operation steps are shown on model 177.0.
The higher-level service document as well as the safety information in the service document must be observed.

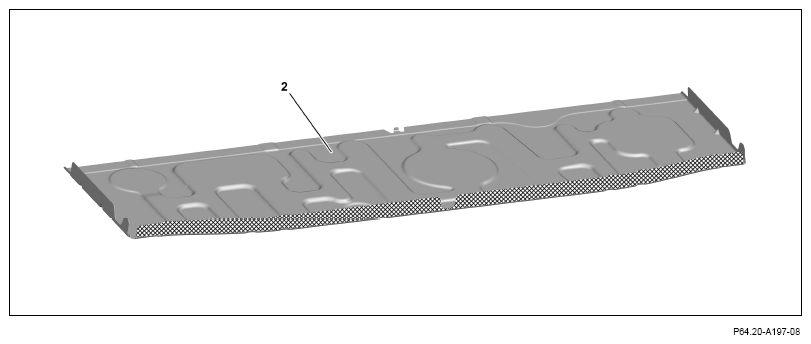

- Grind rear-end floor (2) down to bare metal in cross-hatched area on both sides.
- Remove grinding dust.
Observe pretreatment of bonding surfaces.
