Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610MFA

Model 118 (except 118.351/353/354/651/653/654), 177 (except 177.051/053/054/151/951), 243, 247 (except 247.651/751/753/754)

Shown on model 177.0 on 1-piston floating caliper brake

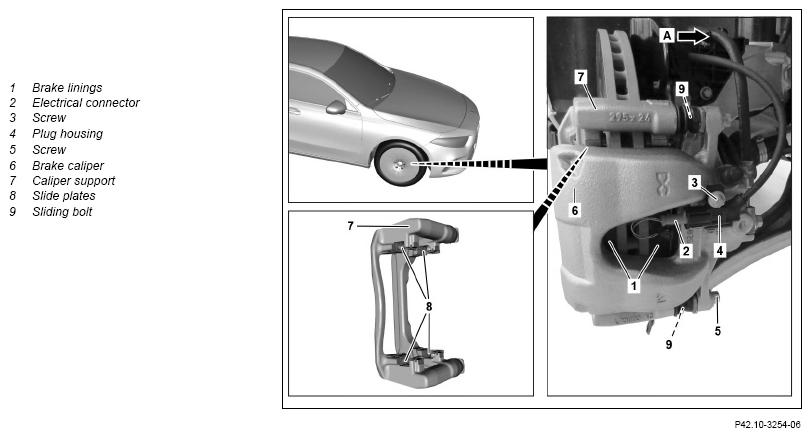

Fig 1: Front Axle Brake Linings/Pads Components Location - Model 247, Except 247.651/751/753/754 (Shown On Model 177.0 On 1-Piston Floating Caliper)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on installing brake wear indicator contact sensors		AH42.10-P-0003-01CW
	Remove
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove cover above brake fluid expansion reservoir.
3	Clean area around cap on brake fluid expansion reservoir.	Assembly cleaner	*BR00.45-Z-1028-04A
4	Remove cap from brake fluid expansion reservoir and extract some brake fluid.	This prevents the expansion reservoir overflowing when the brake piston is pushed back.
5	Remove front wheel and tire assemblies.		AR40.10-P-1102MFA
6	Unhook brake hose from holder (arrow A).
7	Release and disconnect electrical connector (2) of right front brake pad wear sensor (S10/2).	On the right side of the vehicle.
8	Remove screw (3) and place plug housing (4) to one side.	On the right side of the vehicle.
9	Remove lower screw (5).
10	Swivel brake caliper (6) upwards and secure against folding over.
11	Remove brake pads (1) from brake caliper support (7).
12	Remove sliding plates (8).
	Check
13	Check brake pads (1) for wear and condition.
		Model 243	AP42.10-P-4252K
		Model 247 (except 247.651/751/753/754)	AP42.10-P-4252MFB
		Model 177 (except 177.051/053/054/151/951)	AP42.10-P-4252MFA
		Model 118 (except 118.351/353/354/651/653/654) If there is a problem, ↓ Replace brake linings (1).	AP42.10-P-4252CLA
14	Check brake disks for wear and condition.	Model 118 (except 118.351/353/354/651/653/654)	AR42.10-P-0120MFC
		Model 243, 247 (except 247.651/751/753/754)	AR42.10-P-0120MFB
		Model 177 (except 177.051/053/054/151/951) Only brake disks approved by Mercedes-Benz may be installed. Replace brake disks as a complete set only. If damage or excessive wear is present, ↓ replace brake disks.	AR42.10-P-0120MFA
			AR42.10-P-0220MFA
15	Check brake caliper (6) with detachable parts for damage.	If there is a problem, ↓ Replace corresponding components.
			AR42.10-P-0070MFA
16	Check brake caliper support (7) and sliding bolts (9) for damage and ease of movement.	If there is a problem, ↓ Replace corresponding components.
			AR42.10-P-0070MFA
	Clean
17	Clean contact surfaces of brake pads (1) on brake caliper (6) and on brake caliper support (7).	Do not use sharp-edged or pointed objects. Otherwise, the dust boot, brake caliper (6) or brake caliper support (7) may get damaged. Remove adhesive residue on contact surfaces of brake caliper (6) completely.
		Assembly cleaner	*BR00.45-Z-1028-04A
	Install
18	Push back brake piston.	Resetting device	Fig 2
19	Install sliding plates (8).
20	Install right front brake pad wear sensor (S10/2) into brake pad (1).	On the right side of the vehicle.
21	Insert brake pads (1) into brake caliper support (7).	Insert brake pads (1) diagonally in order to not deform the springs plastically. No brake pastes or lubricants may be applied to the brake pads (1). Only brake pads (1) approved by Mercedes-Benz may be installed, and only as complete sets.
22	Swivel brake caliper (6) downwards.	Ensure correct routing of the electrical connector (2) of the right front brake pad wear sensor (S10/2).
23	Turn in lower screw (5).	Bolt, guide pin to brake caliper	*BA42.10-P-1002-10ZA
24	Tighten plug housing (4) with screw (3).	On the right side of the vehicle.
25	Connect and lock electrical connector (2) of front right brake pad wear sensor (S10/2).	On the right side of the vehicle.
26	Clip brake hose into holder (arrow A).	Do not twist the brake hose, and make sure that it is routed correctly.
27	Install front wheel and tire assemblies.		AR40.10-P-1102MFA
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
28	Operate brake pedal several times until the brake pads (1) make contact with the brake disks.
	Check
29	Check and correct brake fluid level in expansion reservoir.
		Model 243	AP42.10-P-4210I
		Model 118 (except 118.351/353/354/651/653/654), 177 (except 177.051/053/054/151/951), 247 (except 247.651/751/753/754)	AP42.10-P-4210D
	Risk of death  caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand	Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY OFF switch to shut down test stand.	AS42.00-Z-0001-01A
30	Perform brake test on test stand.
		Model 243	AP42.00-P-4290EQ
		Model 118 (except 118.351/353/354/651/653/654), 177 (except 177.051/053/054/151/951), 247 (except 247.651/751/753/754)	AP42.00-P-4290BA

Fig 2: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA
